8060SRC22.11

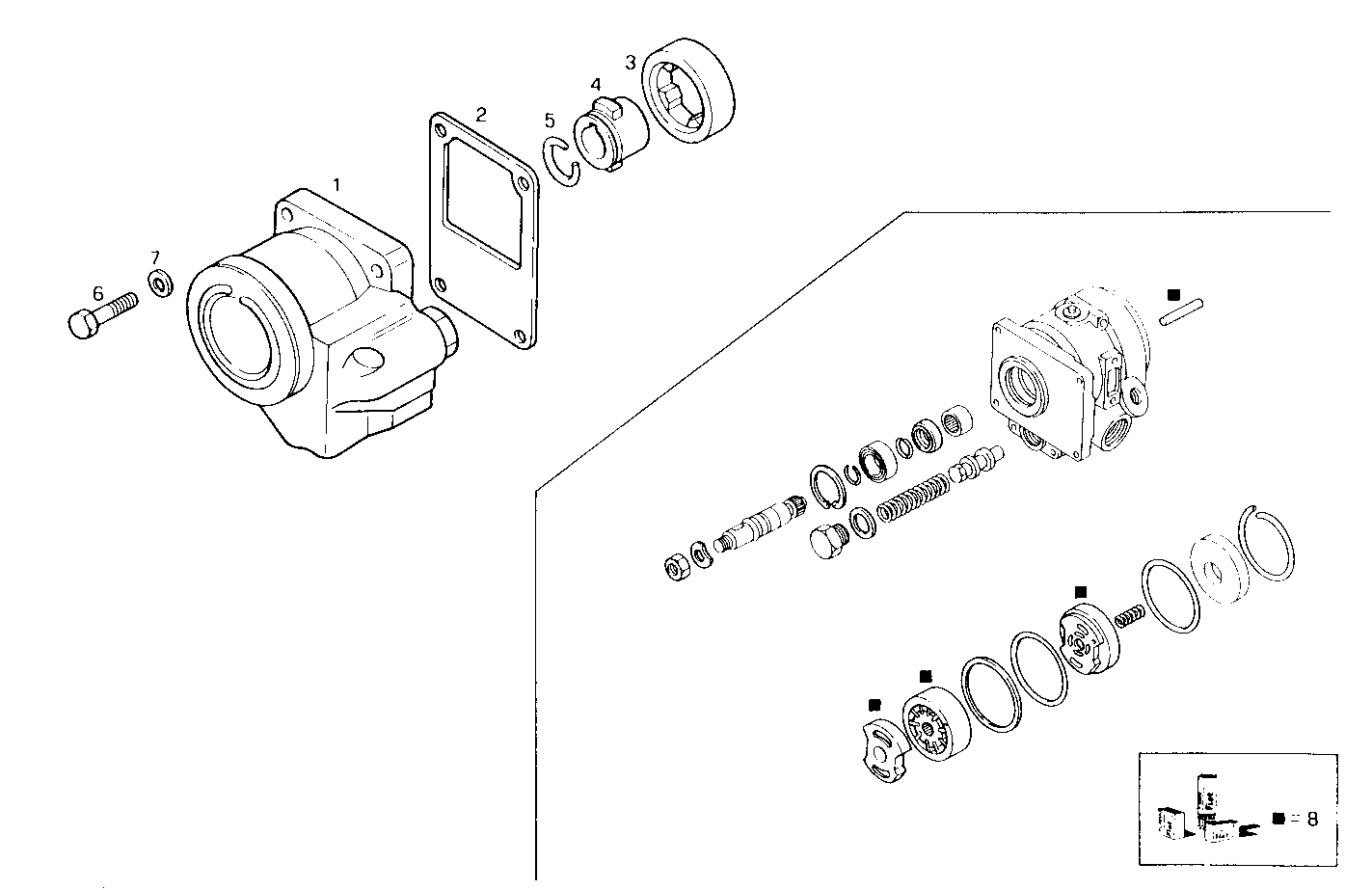

A09150001 HYDRAULIC PUMP

Iveco/FPT HYDRAULIC PUMP

Item Part number Description
1 4853321 HYDRAULIC PUMP ASSY
2 500378759 FLAT ENGINE GASKET ASSY
3 4621358 RING
4 4630543 HUB
5 17082776 SPRING LOCKWASHER Ø23,7 MM
6 16603824 SCREW M6X25
7 17088474 WASHER Ø6X12 MM
8 93161396 KIT-HYDROST.PUMP
