8060SRC22.20

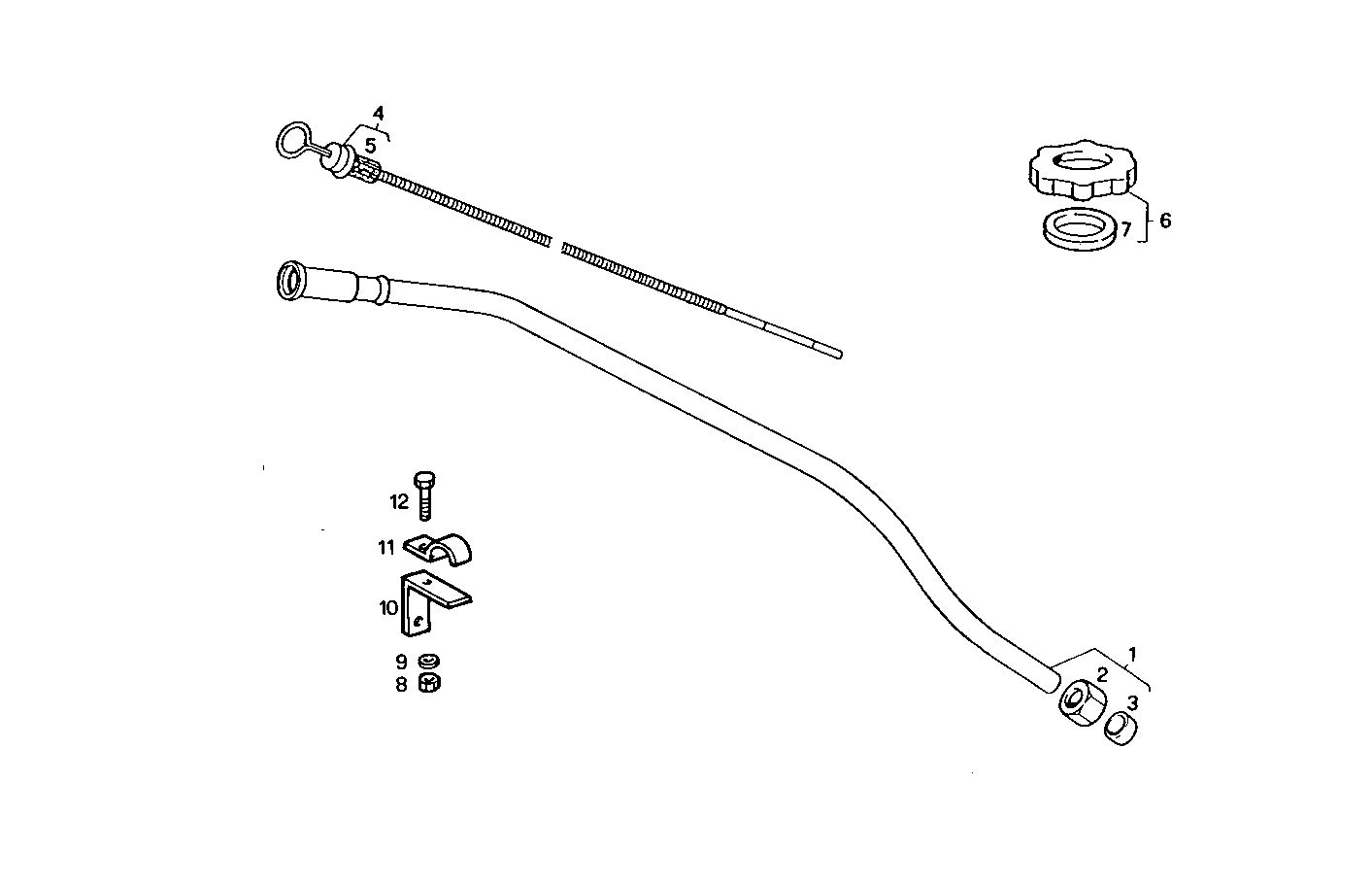

2710.061 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 98497119 | OIL LEVEL TUBE ASSY |
| 2 | 4641220 | NUT |
| 3 | 4641221 | RING |
| 4 | 98456825 | OIL DIPSTICK ASSY |
| 5 | 7300023 | RUBBER GASKET |
| 6 | 4232606 | OIL FILLER PLUG ASSY |
| 7 | 98418978 | GASKET |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 4749133 | BRACKET |
| 11 | 17316699 | PIPE CLIP Ø14 MM |
| 12 | 16605424 | SCREW M8X16 MM (8.8) |
