8060SRC22.20

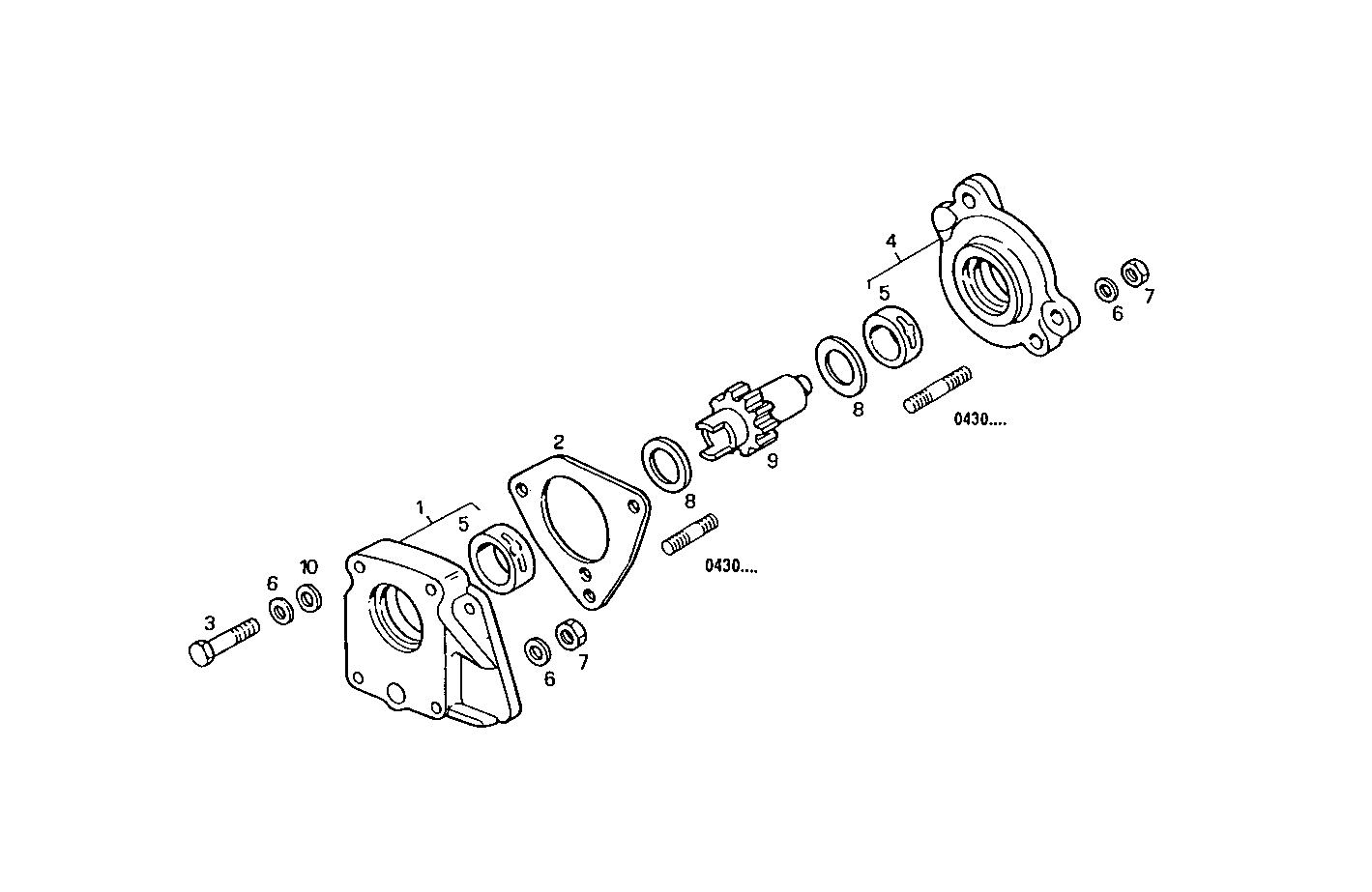

3500.018 POWER TAKE OFF
Item | Part number | Description |
---|---|---|
1 | 98437990 | SUPPORT ASSY |
2 | 4851004 | FLAT ENGINE GASKET |
3 | 16606424 | HEXAGON BOLT M8X65 MM |
4 | 4771242 | SUPPORT ASSY |
5 | 4788087 | BUSH VANDERVELL |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
7 | 17037931 | HEXAGON NUT M8X1,25 |
8 | 4667452 | SUPPORT RING |
9 | 98437992 | SHAFT |
10 | 4716734 | WASHER |
