8060SRC23.00

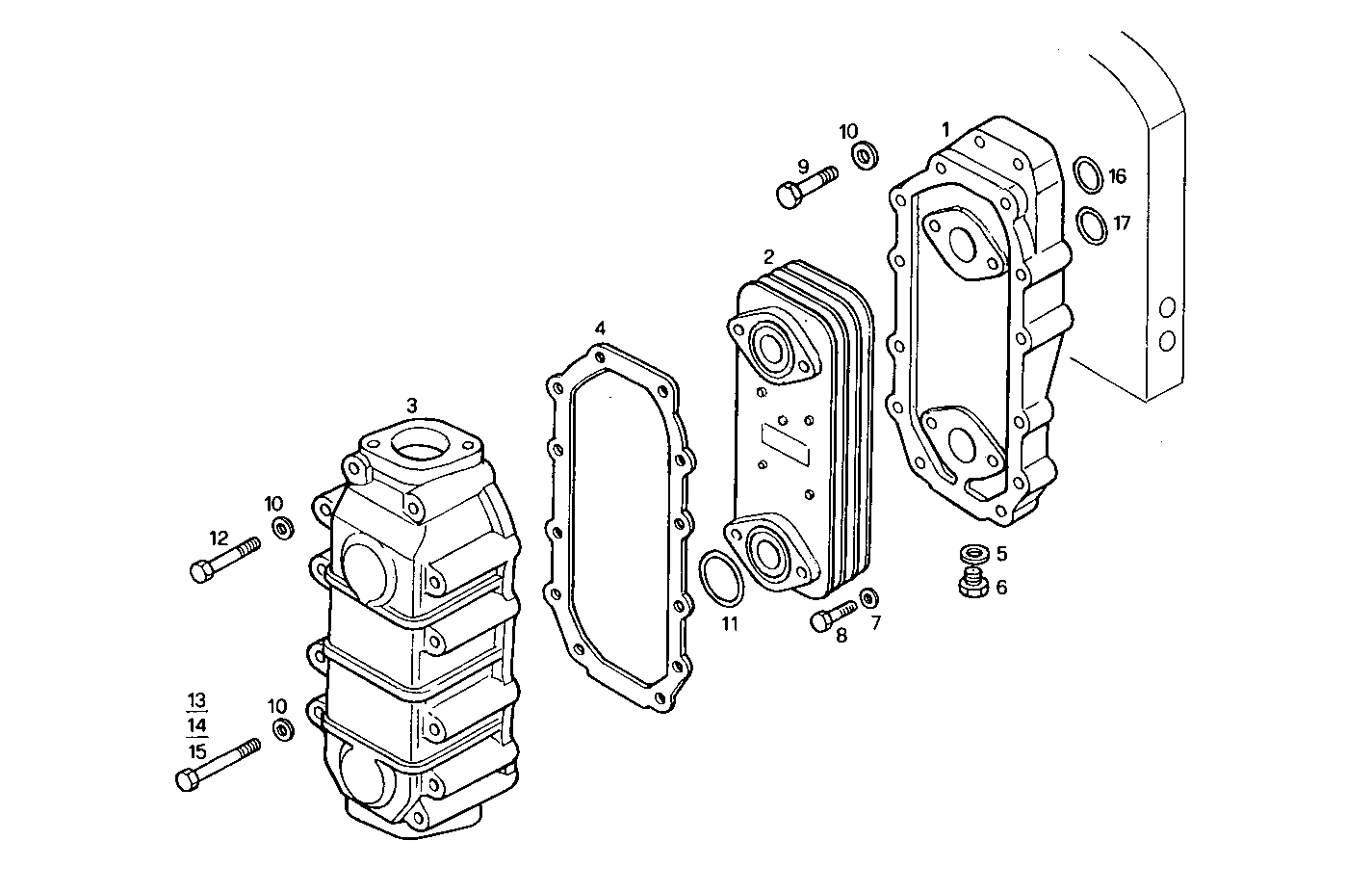

3100.041 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4830896 HEAT EXANGER BODY
2 99435959 OIL COOLER
3 4831158 HEAT EXCHANG.COVER
4 4850952 FLAT ENGINE GASKET
5 10263460 WASHER Ø22X28X1,5 MM
6 10305111 LOCK PLUG M22
7 17094901 WASHER Ø8,4 MM
8 16605524 HEXAGON BOLT M8X20 MM
9 16044021 HEXAGON BOLT M8X1,25X40 MM
10 10519601 WASHER Ø8X17 MM
11 14458281 O-RING Ø2,62X31,42 MM
12 98428774 HEXAGON BOLT
13 16044921 HEXAGON BOLT M8X1,25X85 MM
14 16045621 HEXAGON BOLT M8X1,25X120
15 16046321 HEXAGON BOLT M8X160 MM
16 14462981 O-RING Ø20,2 MM SP=3,5 MM
17 14463181 O-RING SP=3,53 MM
