8060SRC23.00

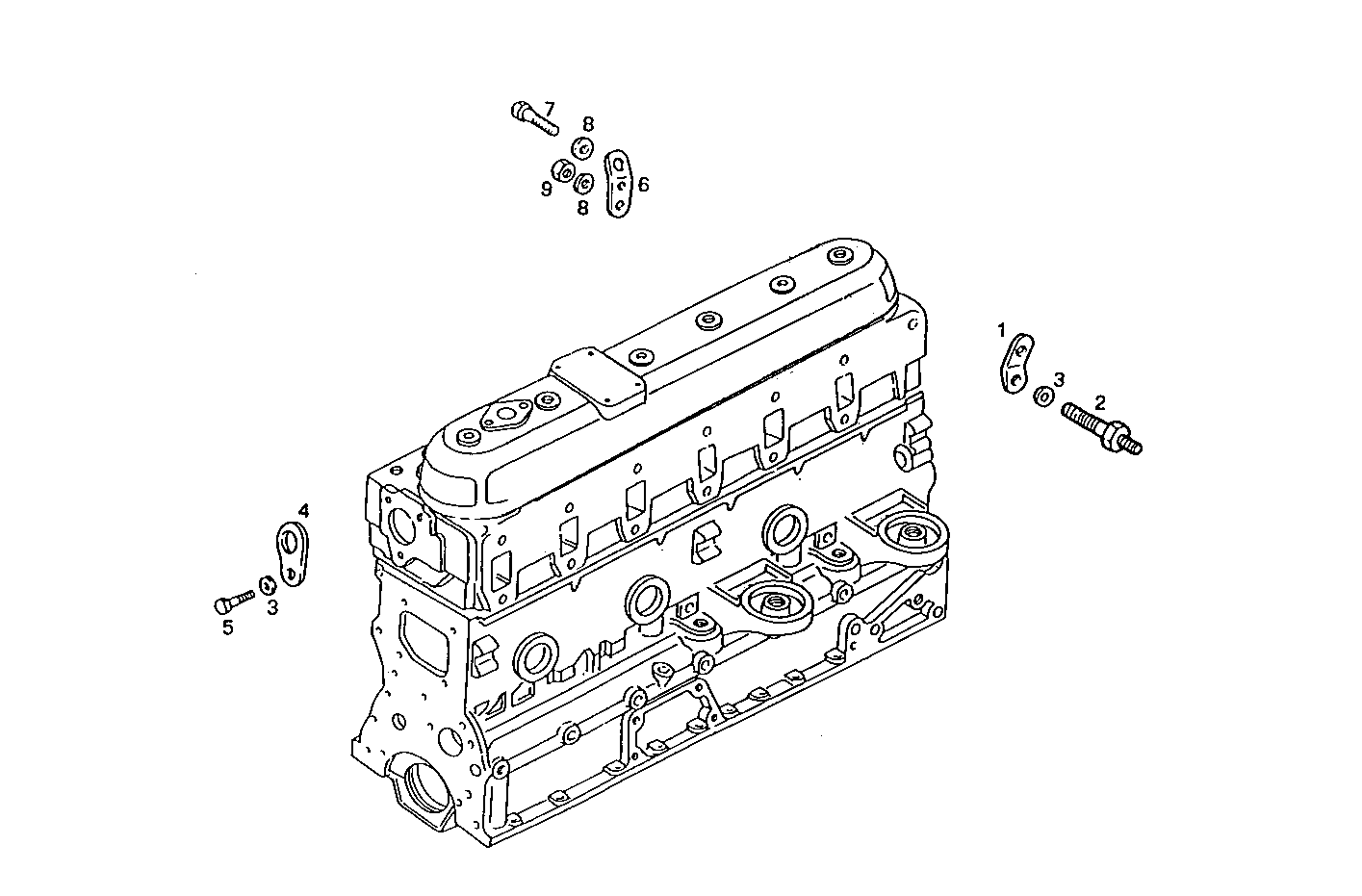

4500.085 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 98427896 | HOOK |
| 2 | 4843684 | STUD |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 98439780 | HOOK REAR LEFT |
| 5 | 15970524 | HEXAGON BOLT M10X1,25X20 |
| 6 | 98439779 | HOOK REAR RIGHT |
| 7 | 16605924 | SCREW M8X40 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
