8060SRC23.10

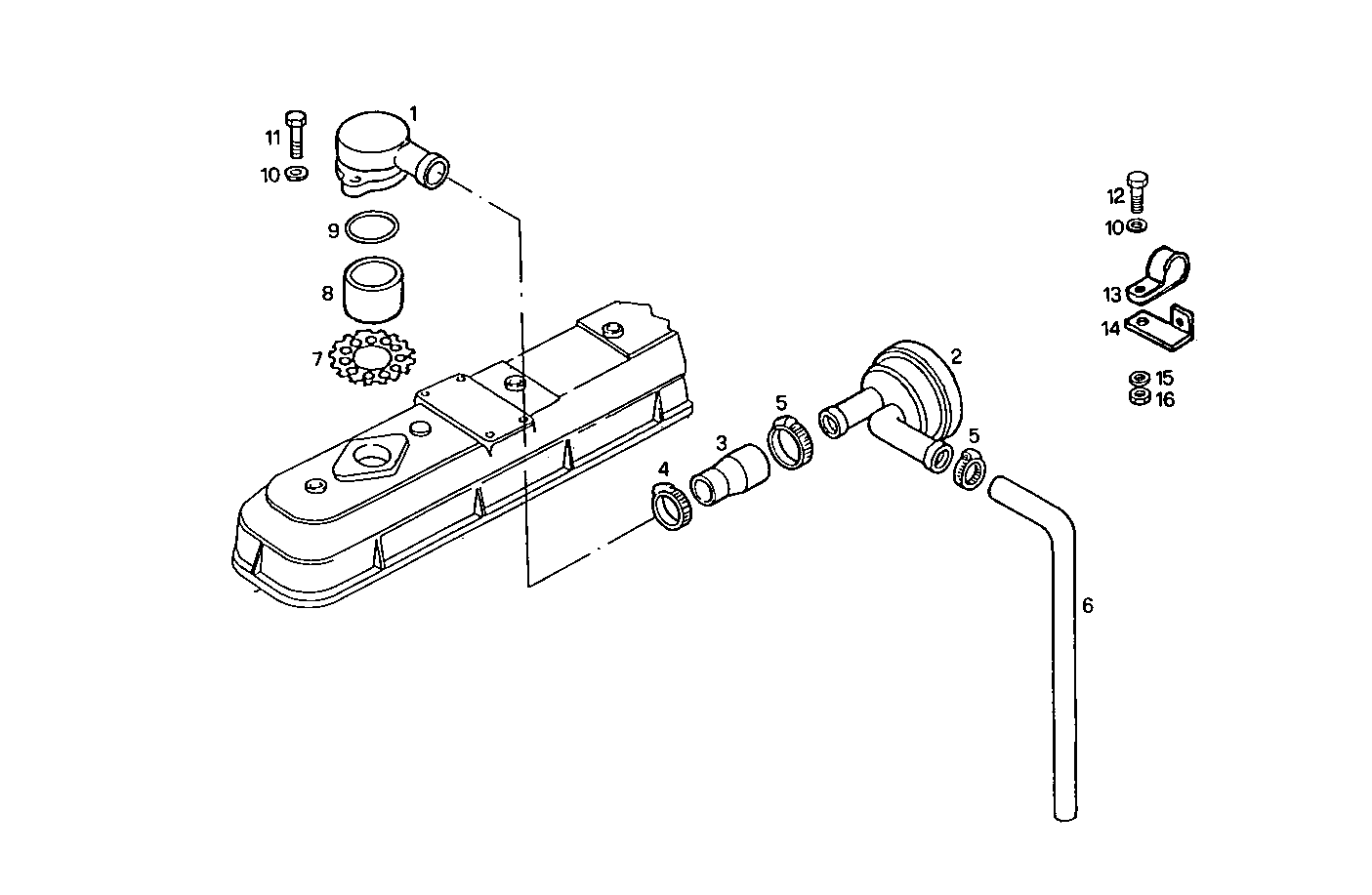

0450.097 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 99445059 | COVER ASSY BUNDY |
2 | 99437999 | VALVE ASSY LEFT GARRETT |
3 | 4865232 | RUBBER SLEEVE |
4 | 17764592 | CLIP Ø20/32 MM |
5 | 17764691 | CLIP Ø25/40 MM |
6 | 500303514 | RUBBER SLEEVE L=680 MM |
7 | 99446135 | WASHER ASSY |
8 | 99446352 | EDGE FILTER VALEO 10"1/2 |
9 | 17285681 | O-RING Ø88,57 MM SP=2,62 MM |
10 | 17094714 | WASHER Ø6,4X12 MM |
11 | 16604124 | HEXAGON BOLT M6X40 MM |
12 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
13 | 17315890 | PIPE CLIP Ø30 MM |
14 | 99460592 | RETAINER BUNDY |
15 | 17088474 | WASHER Ø6X12 MM |
16 | 17037821 | HEXAGON NUT M6X1 |
