8060SRC23.10

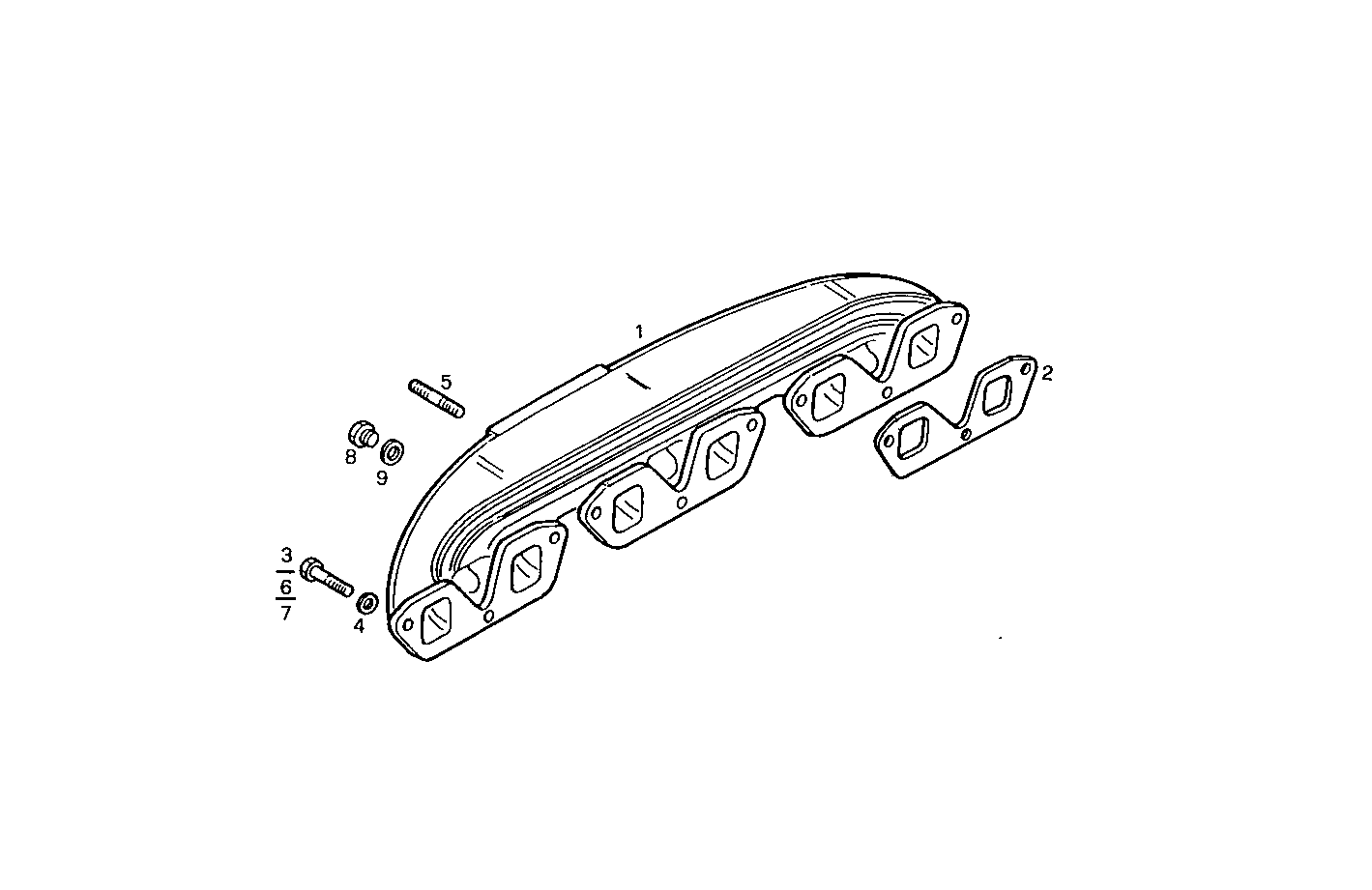

0710.119 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 99436915 INTAKE ELBOW
2 4851921 INTAKE ELBOW GASK.
3 16605824 HEXAGON BOLT M8X35 MM
4 17094904 WASHER Ø8X16X1,6 MM
5 16746624 STUD M8X20 MM (8.8)
6 16605624 HEXAGON BOLT M8X25 MM (8.8)
7 16606024 SCREW M8X45 MM
8 4724588 PLUG
9 10260060 SEAL GASKET Ø8X12X1 MM
