8060SRC23.10

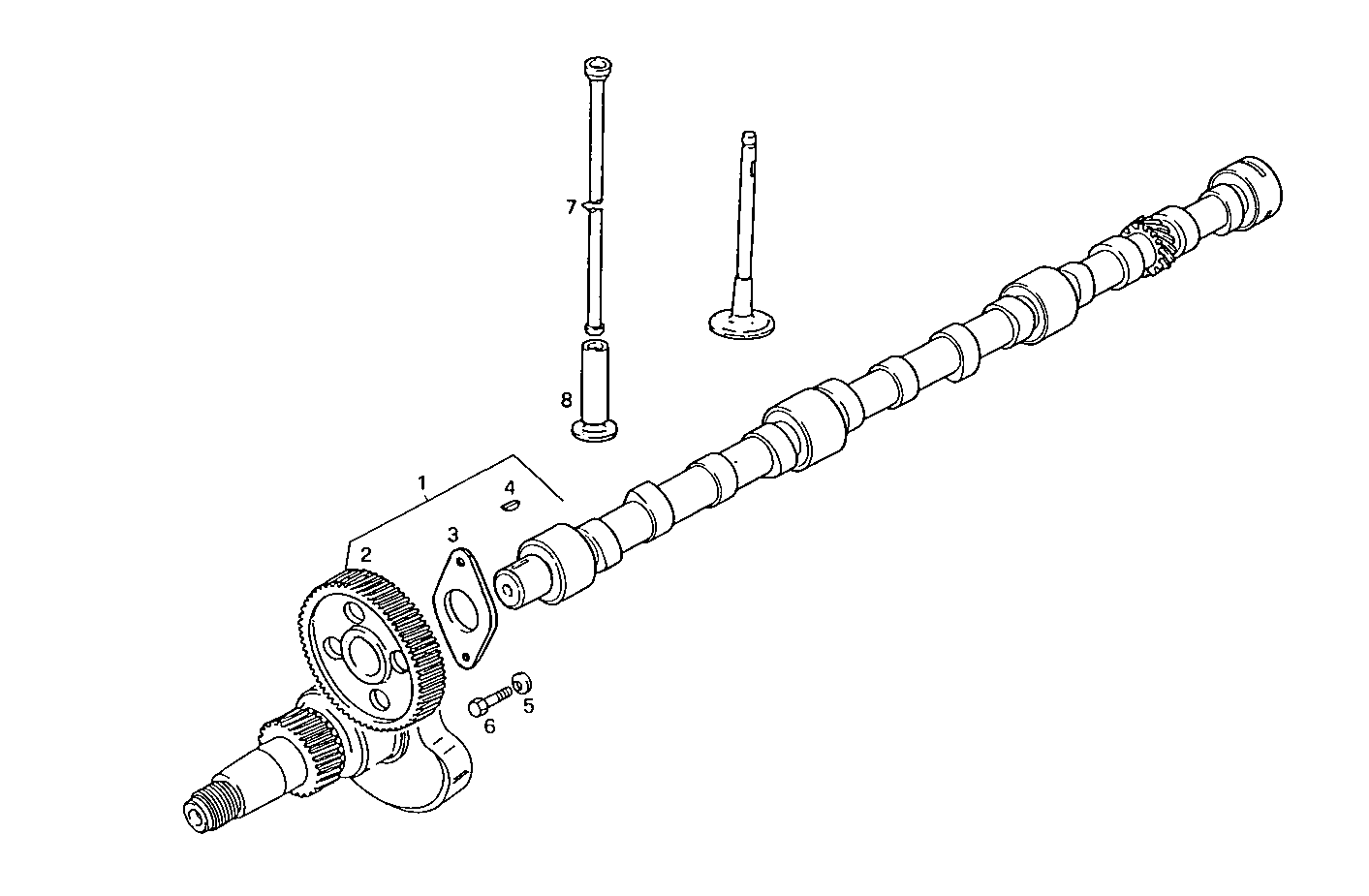

1250.057 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 99468762 | CAMSHAFT ASSY |
| 2 | 99458464 | CAMSHAFT PINION Z=50 |
| 3 | 98414077 | PLATE |
| 4 | 17221220 | KEY 5X9 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16707134 | SOCKET-HEAD SCREW M8X20 MM |
| 7 | 98471579 | PUSHROD |
| 8 | 98471499 | TAPPET +0,0 MM |
