8060SRC23.10

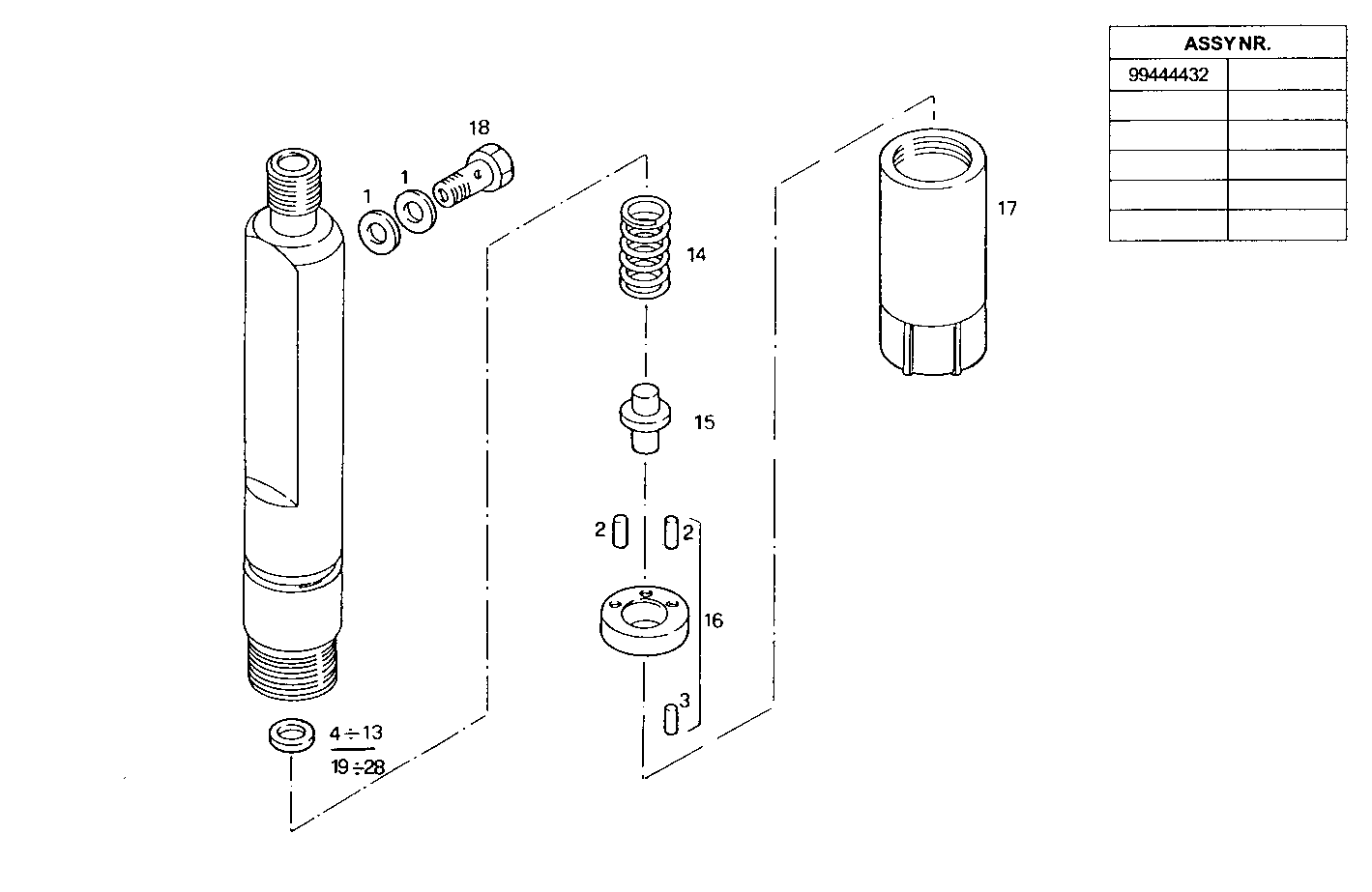

1430.048 NOZZLE HOLDER (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
1118641 |
WASHER Ø6X10 MM |
|
2 |
9982960 |
PARALLEL PIN |
|
3 |
42491772 |
PARALLEL PIN |
|
4 |
42530210 |
SHIM SP=1 MM |
|
5 |
42530211 |
SHIM SP=1,1 MM |
|
6 |
42530212 |
SHIM SP=1,2 MM |
|
7 |
42530213 |
SHIM SP=1,3 MM |
|
8 |
42530214 |
SHIM SP=1,4 MM |
|
9 |
42530215 |
SHIM SP=1,5 MM |
|
10 |
42530216 |
SHIM SP=1,6 MM |
|
11 |
42530217 |
SHIM SP=1,7 MM |
|
12 |
42530218 |
SHIM SP=1,8 MM |
|
13 |
42530219 |
SHIM SP=1,9 MM |
|
14 |
42530220 |
SPRING |
|
15 |
42532341 |
WASHER/PLATE |
|
16 |
42532342 |
CENTERING RING ASSY |
|
17 |
42532343 |
FASTENING RING |
|
18 |
93190600 |
SCREW CONNECTOR M6 |
|
19 |
42532331 |
SHIM SP=1,05 MM |
|
20 |
42532332 |
SHIM SP=1,15 MM |
|
21 |
42532333 |
SHIM SP=1,25 MM |
|
22 |
42532334 |
SHIM SP=1,35 MM |
|
23 |
42532335 |
SHIM SP=1,45 MM |
|
24 |
42532336 |
SHIM SP=1,55 MM |
|
25 |
42532337 |
SHIM SP=1,65 MM |
|
26 |
42532338 |
SHIM SP=1,75 MM |
|
27 |
42532339 |
SHIM SP=1,85 MM |
|
28 |
42532340 |
SHIM SP=1,95 MM |
