8060SRC23.10

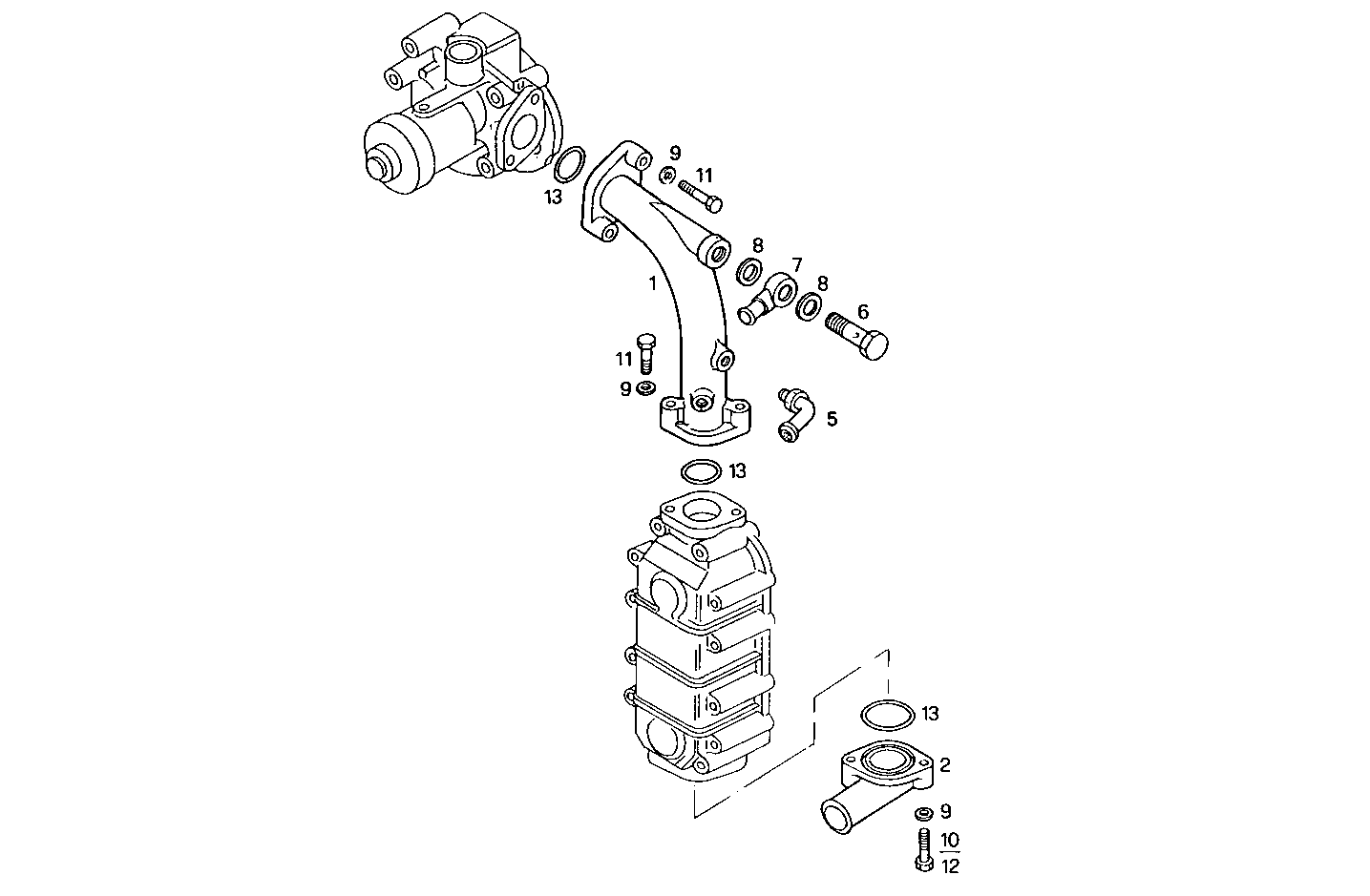

3210.127 WATER LINES
Item | Part number | Description |
---|---|---|
1 | 98437261 | WATER PIPE |
2 | 4848622 | WATER PIPE |
5 | 98464857 | PIPE SOCKET |
6 | 4846937 | SCREW CONNECTOR |
7 | 98438152 | SWIVEL COUPLING |
8 | 4835536 | WASHER |
9 | 10519601 | WASHER Ø8X17 MM |
10 | 16606024 | SCREW M8X45 MM |
11 | 16605924 | SCREW M8X40 MM |
12 | 98428775 | HEXAGON BOLT |
13 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
