8060SRC23.10

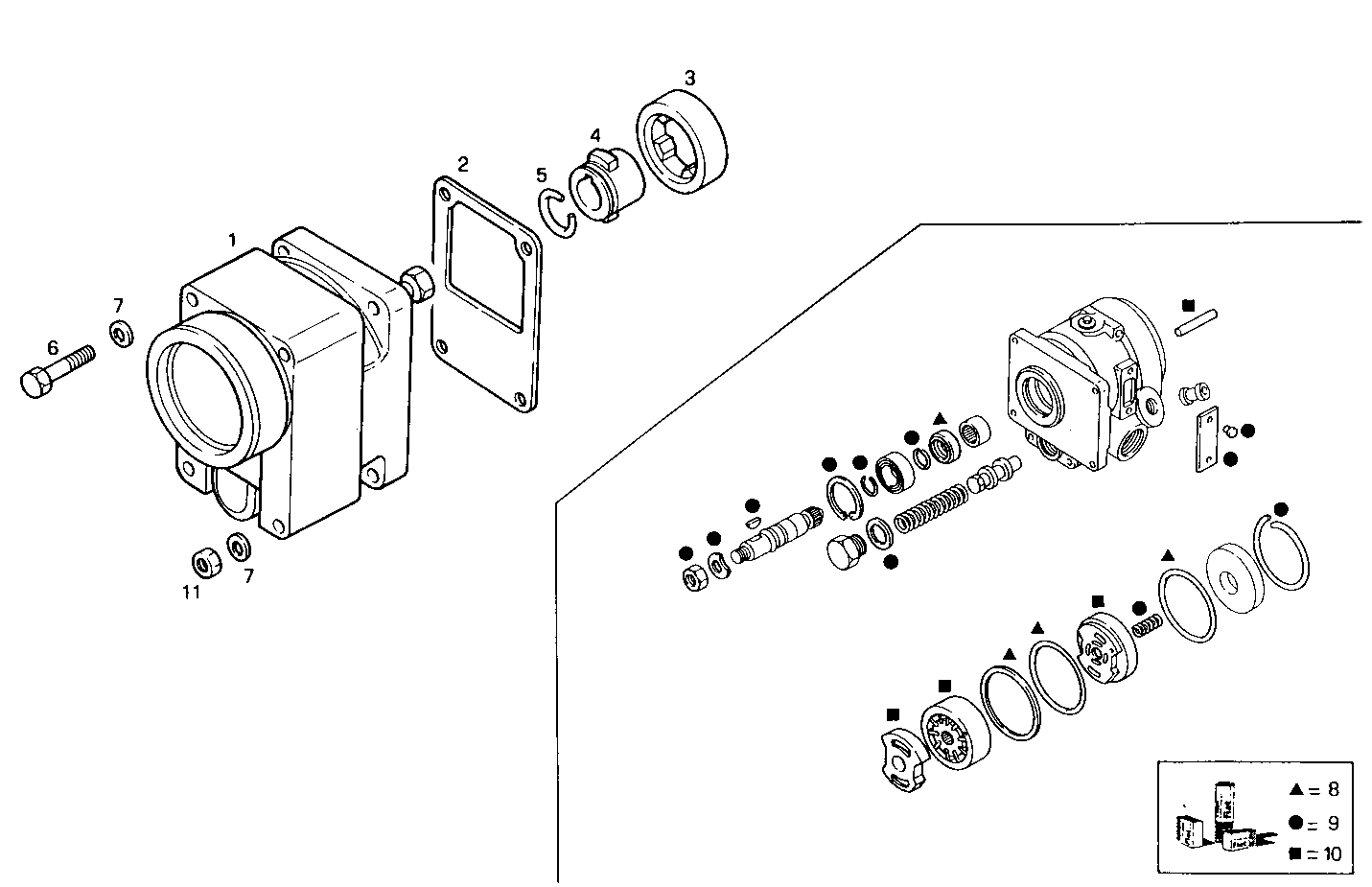

4230.003 POWER STEERING PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4823483 | OIL PUMP-STEERING ASSY |
| 2 | 98486662 | FLAT ENGINE GASKET |
| 3 | 4621358 | RING |
| 4 | 4630543 | HUB |
| 5 | 17082776 | SPRING LOCKWASHER Ø23,7 MM |
| 6 | 16603824 | SCREW M6X25 |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 8124619 | KIT-HYDRAULIC PUMP |
| 9 | 93161236 | KIT-HYDROST.PUMP |
| 10 | 93161237 | KIT-HYDROST.PUMP |
| 11 | 17037821 | HEXAGON NUT M6X1 |
