8060SRC23.10

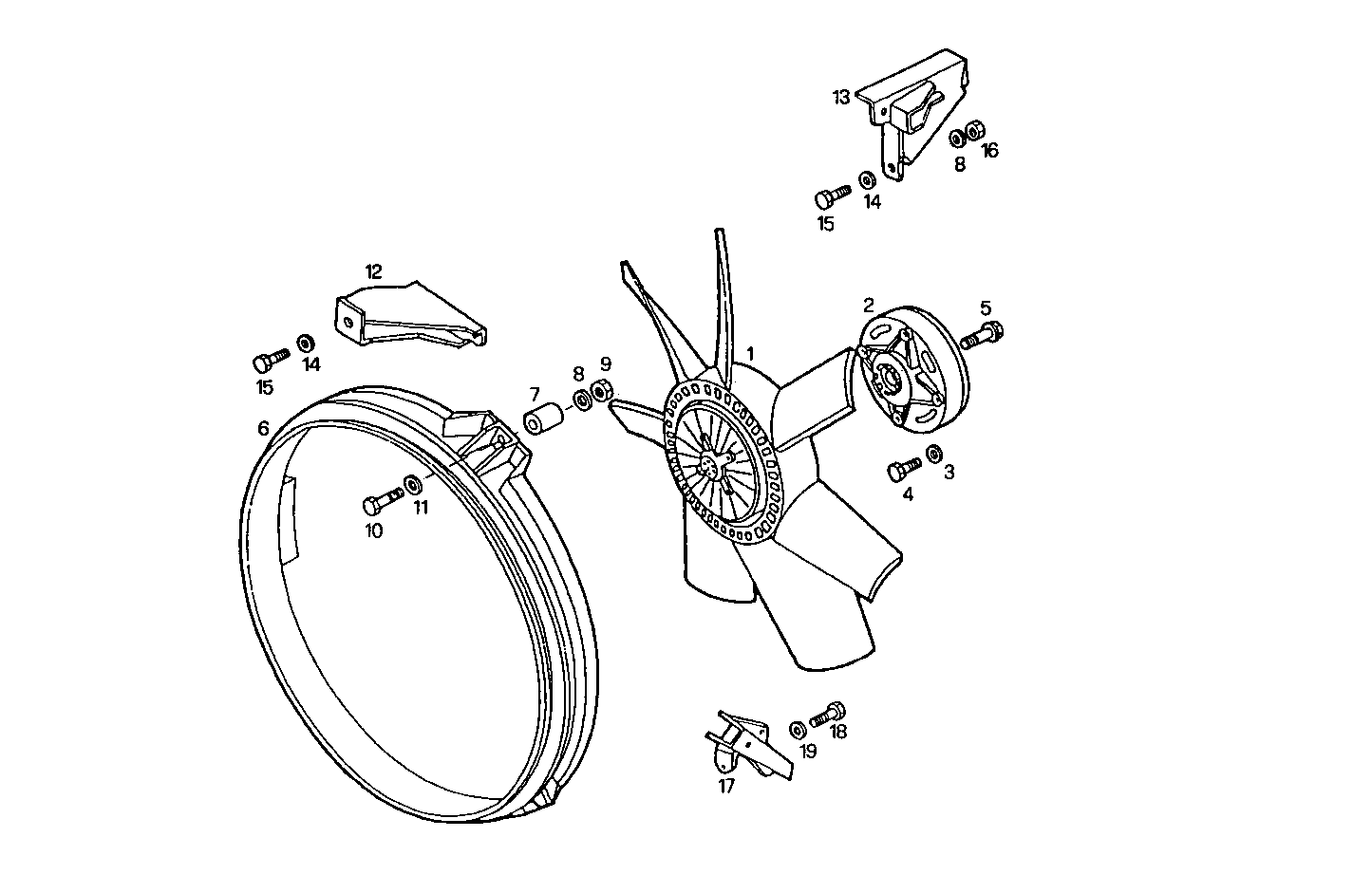

A08100002 VISCOSTATIC PULLER FAN - on water pump

Iveco/FPT VISCOSTATIC PULLER FAN

Item Part number Description
1 98468660 BLOWER Ø530 MM 7 BLADES
2 4858278 HUB
3 17094914 WASHER 8x16
4 16606224 HEXAGON BOLT M8X55 MM
5 4779122 HEXAGON BOLT
6 98428772 AIR HOOD Ø530 MM
7 4800841 SPACING BAR
8 12647124 WASHER Ø8X20 MM
9 17038531 HEXAGON NUT M12X1,5
10 16605924 SCREW M8X40 MM
11 17089574 WASHER Ø8X16 MM
12 98428403 RETAINER
13 98428319 RETAINER
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17037931 HEXAGON NUT M8X1,25
17 98428481 RETAINER
18 16603624 HEXAGON BOLT M6X16 MM (8.8)
19 17088574 WASHER Ø6X12 MM
