8060SRC23.10

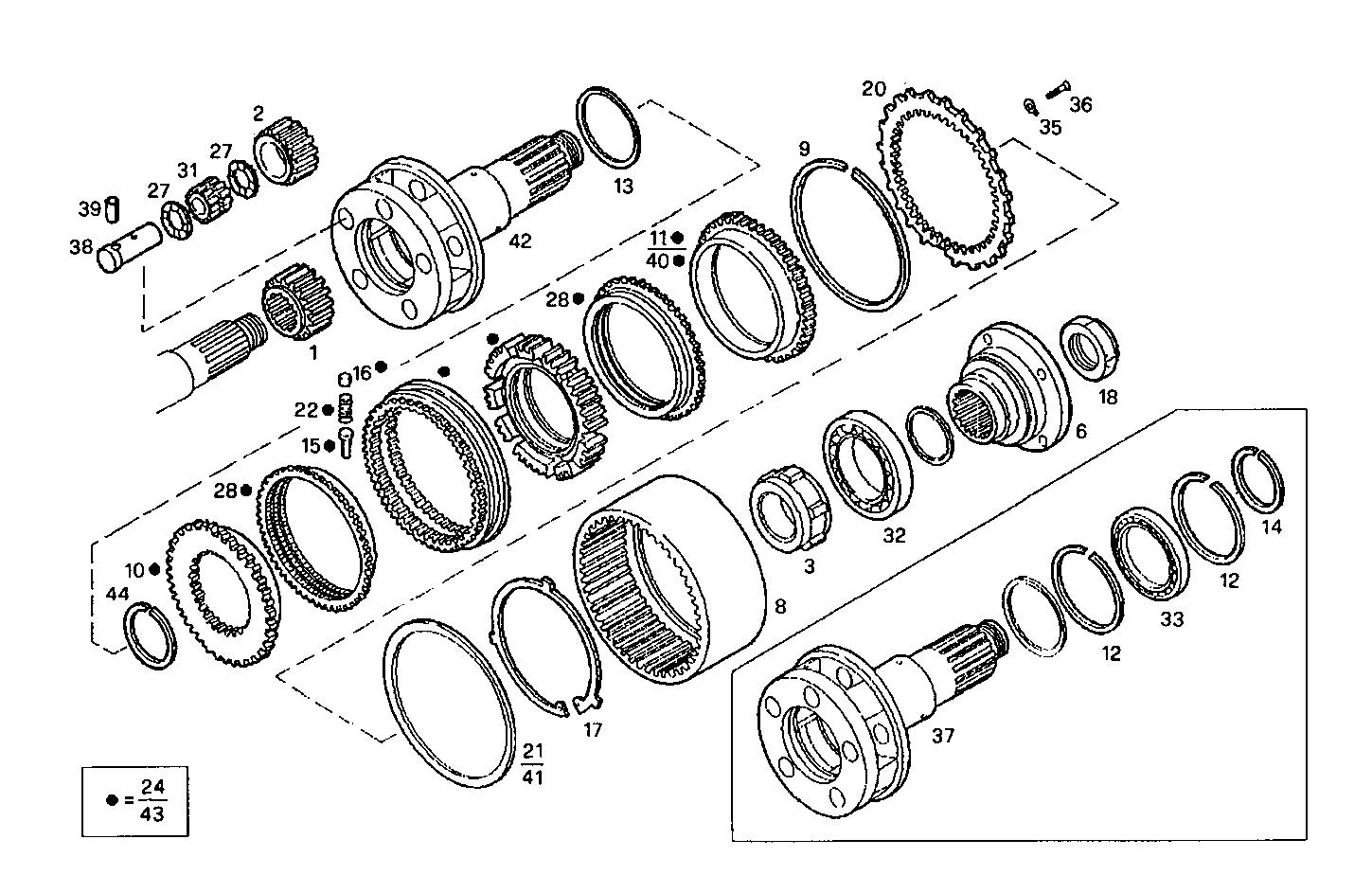

A27560001/06 TRANSMISSION GROUP - 2870.9 - left hand drive

Iveco/FPT TRANSMISSION GROUP - 2870.9

Item Part number Description
1 8859096 G.BOX PLANET GEAR
2 8859117 G.BOX SATELLITE
3 8859272 GEARBOXINTERM.GEAR
6 8859399 SHIFT SLEEVE
8 8859834 G.BOX INT.RINGGEAR
9 8859836 SPRING LOCKWASHER
10 8859906 SYNCHRONIZER
11 8859907 SYNCHRONIZER [up to 8P94]
12 8860341 SPRING LOCKWASHER [up to 19G95]
13 8860342 SPRING LOCKWASHER
14 8860344 SPRING LOCKWASHER [up to 19G95]
15 8860352 CONTROL PISTON
16 8860355 PARALLEL ROLLER
17 8860383 CIRCLIP [up to 8P94]
18 8860553 HEXAGON NUT
20 8860805 SYNCHRONIZER
21 8860808 RING [up to 8P94]
22 8860839 SPRING
24 8863029 SYNCHRONIZ.COMPLET ASSY [up to 19G95]
27 8863184 STOP WASHER
28 8860802 SYNCHRONIZER
31 1905275 GEARBOX BEARINGS Ø23,9X33,9 SP=32 MM
32 1905276 GEARBOX BEARINGS Ø70X110 MM SP=20 MM
33 1905277 GEARBOX BEARINGS [up to 19G95]
35 8860848 WASHER
36 17344334 SCREW M8X1,25X20 MM
37 8863722 G.BOX PLANET.CARR. [up to 19G95]
38 8863723 PIN
39 17256870 DOWEL PIN
40 8867881 SYNCHRONIZER [from 9P94]
41 8867882 RING [from 9P94]
42 8867890 G.BOX PLANET.CARR. [from 20G95]
43 8868412 SYNCHRONIZ.COMPLET ASSY [from 20G95]
44 17855276 SPRING LOCKWASHER [from 20G95]
