8060SRC23.20

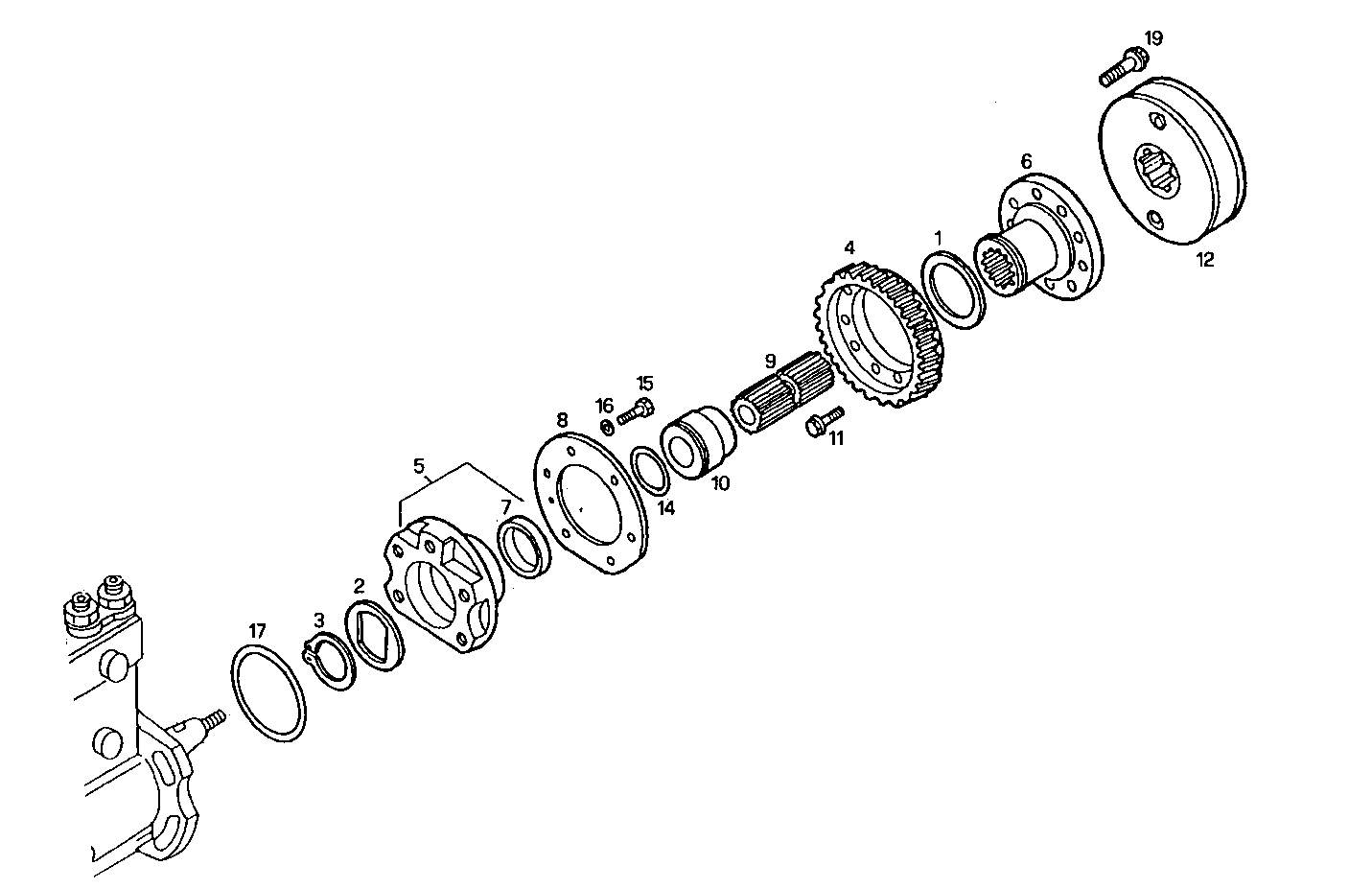

1410.070 INJECTION PUMP DRIVE
Item | Part number | Description |
---|---|---|
1 | 4809425 | WASHER Ø50 MM |
2 | 4667498 | WASHER |
3 | 4708213 | CIRCLIP |
4 | 99458465 | INJ.PUMP DRIV.GEA Z=50 |
5 | 98413005 | SUPPORT ASSY |
6 | 98466629 | INJECT.PUMP SPIND |
7 | 4769427 | BUSH VANDERVELL |
8 | 98411032 | FLAT ENGINE GASKET |
9 | 98466574 | INJECT.PUMP SLEEVE |
10 | 99430877 | CONNECTOR SLEEVE |
11 | 4798845 | SCREW |
12 | 98498384 | ADVANCE UNIT |
14 | 17283081 | O-RING Ø36,17X2,62 MM |
15 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
16 | 17094914 | WASHER 8x16 |
17 | 8838914 | GASKET |
19 | 4794007 | SCREW |
