8060SRC23.20

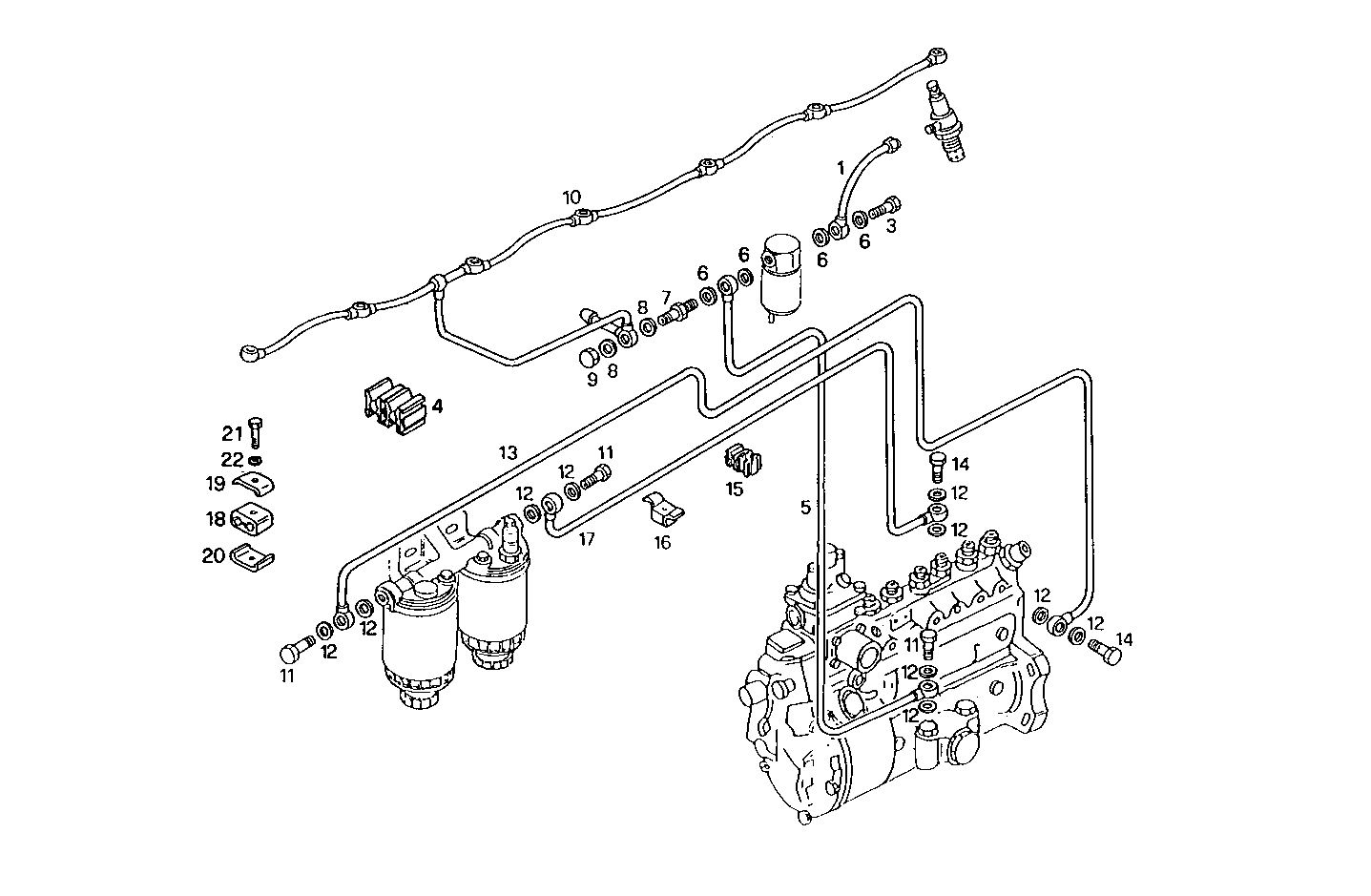

2030.102 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 99437741 | FUEL LINE |
3 | 4864079 | SCREW CONNECTOR M10X1 |
5 | 99452697 | FUEL LINE |
6 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
7 | 500369388 | BYPASS VALVE |
8 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
9 | 98469675 | THREADED PLUG M12X1 |
10 | 99437794 | FUEL LINE |
11 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
12 | 98474308 | SEAL GASKET Ø14X22 MM |
13 | 99473252 | FUEL LINE |
14 | 16511311 | SCREW CONNECTOR M14X1,5 |
15 | 98429625 | SPRING CLAMP |
16 | 98421187 | SPRING CLAMP |
17 | 99473253 | FUEL LINE |
18 | 4659217 | DOWEL |
19 | 4659218 | CLIP |
20 | 4659219 | PLATE |
21 | 16602324 | HEXAGON BOLT M5X25 MM |
22 | 17798073 | WASHER |
