8060SRC23.20

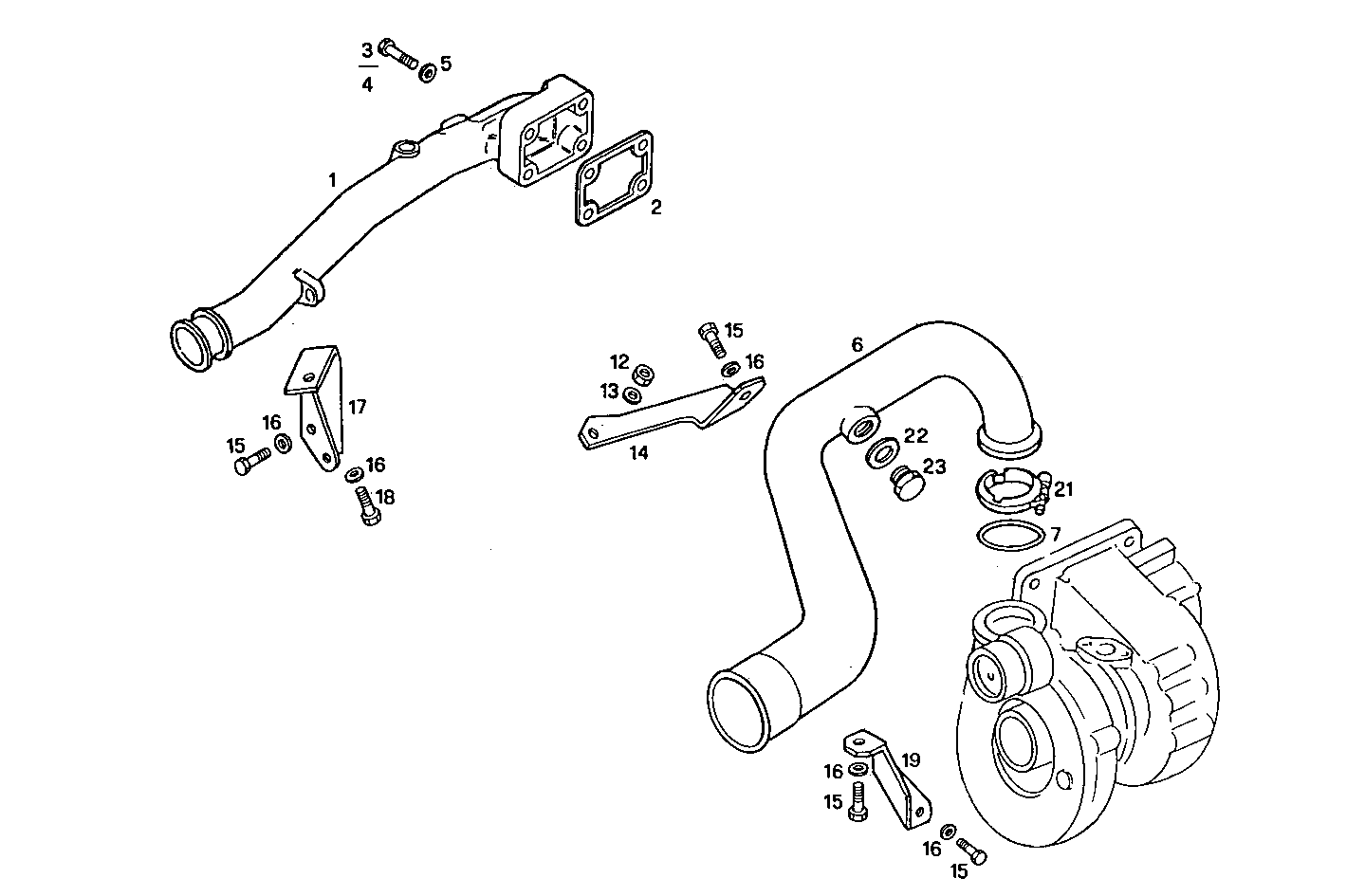

2420.175/01 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 93436521 AIR MANIFOLD
2 99436925 FLAT ENGINE GASKET Ø50 MM
3 11343724 HEXAGON BOLT M10X70 MM
4 15971824 SCREW M10X1,25X100
5 17095125 WASHER
6 4843473 AIR PIPE/DUCT
7 17283481 O-RING Ø42,5 MM SP=2,6 MM
12 17037931 HEXAGON NUT M8X1,25
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 4843605 RETAINER
15 16605524 HEXAGON BOLT M8X20 MM
16 17089771 WASHER Ø8X22X1,5 MM
17 98413688 RETAINER
18 16043521 SCREW M8X22
19 98413687 RETAINER
21 4843862 CLIP Ø50/70 MM
22 10265160 SEAL GASKET Ø35,3 MM
23 10276711 THREADED PLUG M35
