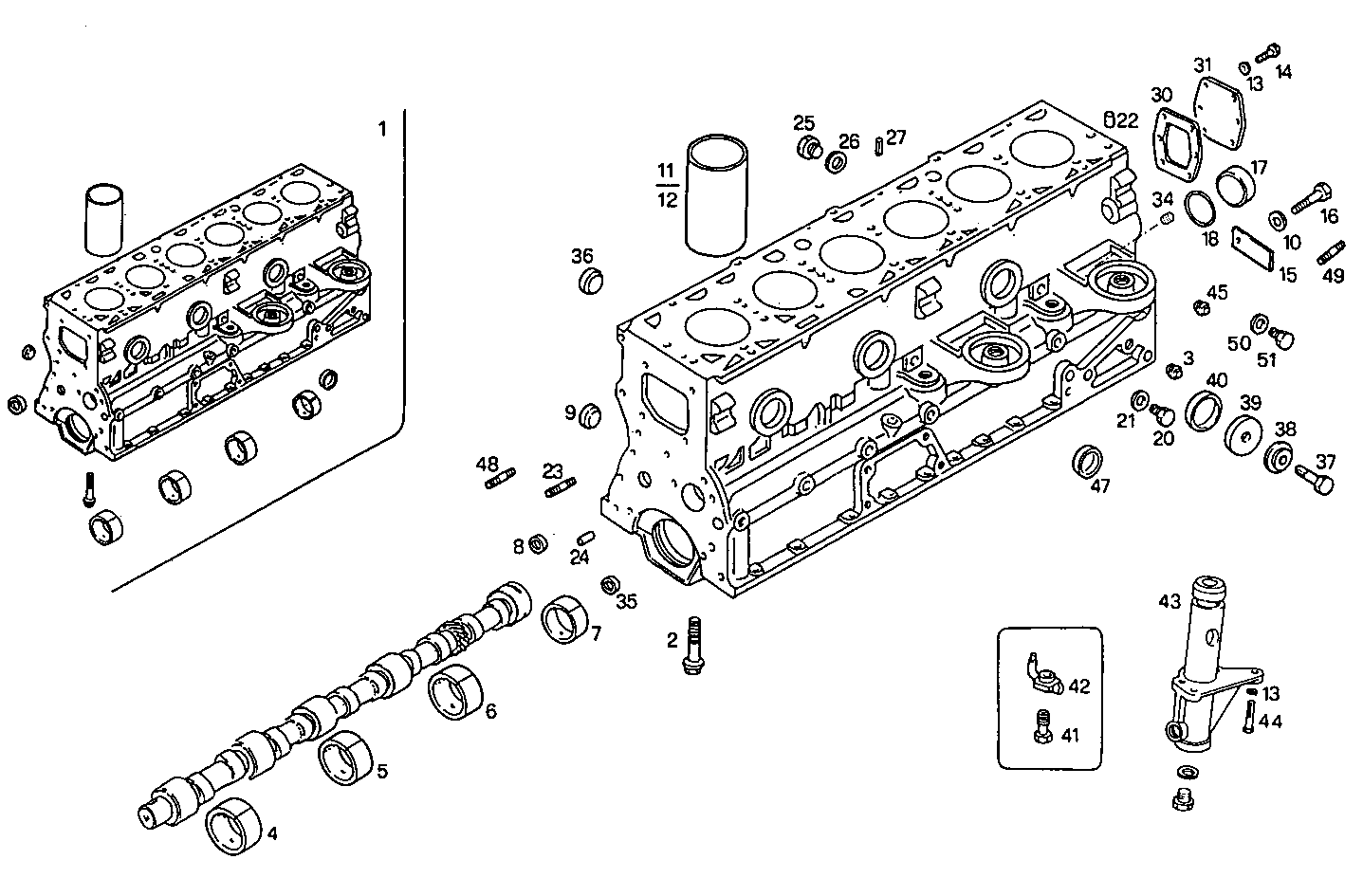

| Item |
Part number |
Description |
|
1 |
500302558 |
CRANKCASE ASSY |
|
2 |
4792169 |
SCREW |
|
3 |
99434231 |
THREADED PLUG M10X1,25 |
|
4 |
4603448 |
CAMSHAFT BEARING FRONT |
|
5 |
4603449 |
CAMSHAFT BEARING MOGUL |
|
6 |
4603450 |
CAMSHAFT BEARING CLEVITE |
|
7 |
4603451 |
CAMSHAFT BEARING MOGUL |
|
8 |
14328201 |
LOCK PLUG M10 |
|
9 |
14282770 |
LOCK PLUG Ø36 MM |
|
10 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
11 |
4803030 |
CYLINDER LINER |
|
12 |
4803031 |
CYLINDERLINER +0.2 |
|
13 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
14 |
16043324 |
HEXAGON BOLT M8X18 MM |
|
15 |
98443528 |
LOCKING PLATE |
|
16 |
15853221 |
HEXAGON BOLT |
|
17 |
98412737 |
LOCK PLUG [from ...] |
|
18 |
17284481 |
O-RING Ø58,4 MM SP=2,6 MM [from ...] |
|
20 |
10300511 |
LOCK PLUG M12X1,5 |
|
21 |
10298460 |
SEAL GASKET Ø12X18 MM SP=1,5 MM |
|
22 |
4846850 |
DOWEL PIN |
|
23 |
16730124 |
STUD M8X60 MM |
|
24 |
17275410 |
DOWEL PIN Ø8 MM |
|
25 |
4665029 |
LOCK PLUG M42X1,5 |
|
26 |
10265460 |
SEAL GASKET Ø42X49 MM SP=1,5 MM |
|
27 |
17254970 |
DOWEL PIN Ø5 MM |
|
30 |
99445564 |
FLAT ENGINE GASKET SP=1,5 MM |
|
31 |
8022445 |
REAR C.CASE COVER |
|
34 |
4782452 |
DOWEL PIN |
|
35 |
14328501 |
LOCK PLUG Ø16 MM |
|
36 |
14327401 |
PLUG Ø13 MM |
|
37 |
16605924 |
SCREW M8X40 MM |
|
38 |
4716734 |
WASHER |
|
39 |
4811892 |
COVER |
|
40 |
4600893 |
GASKET |
|
41 |
98475228 |
SCREW CONNECTOR [from 674995] |
|
42 |
98475474 |
OIL NOZZLE [from 674995] |
|
43 |
500301680 |
SUPPORT |
|
44 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
45 |
99434232 |
THREADED PLUG M14X1,5 |
|
47 |
14329901 |
LOCK PLUG Ø40 MM |
|
48 |
4853521 |
STUD M12x1,75 <--> M10x1,25 |
|
49 |
16735724 |
STUD M14X20X55 [from ...] |
|
50 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
51 |
98415314 |
THREADED PLUG M22X1,5 |
