8060SRM25.11

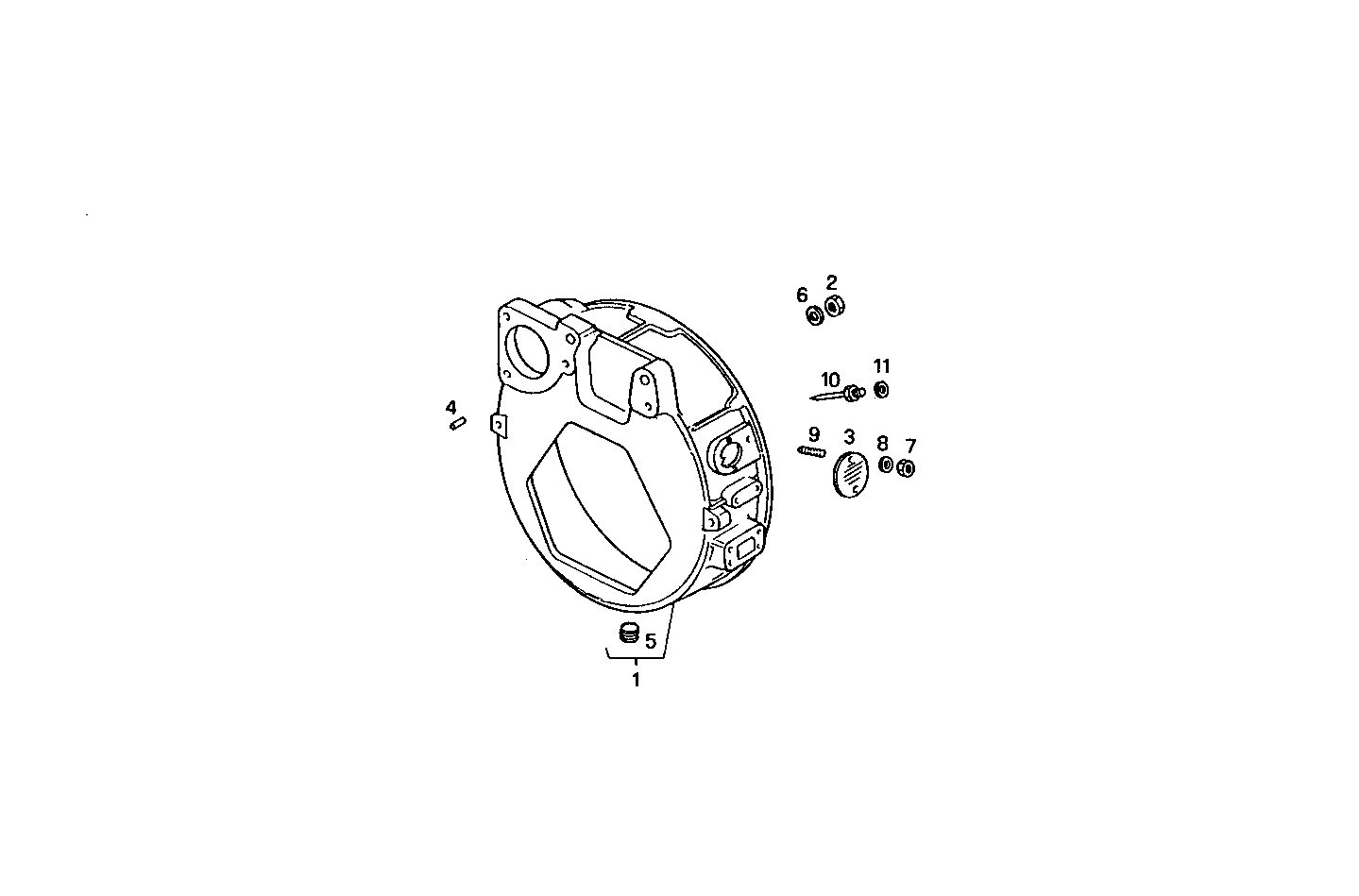

0430.119/02 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 8111654 | FLYWHEEL HOUSING ASSY |
| 2 | 17038721 | NUT M14X2 [from ...] |
| 3 | 4540660 | COVER |
| 4 | 10839710 | DOWEL PIN Ø10X15 MM |
| 5 | 14325601 | LOCK PLUG M35X1,5 |
| 6 | 11200174 | WASHER Ø14X32 MM |
| 7 | 17037721 | NUT M5X0,8 |
| 8 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 9 | 16743424 | STUD M5X10X10 |
| 10 | 61315660 | SCREW |
| 11 | 17094714 | WASHER Ø6,4X12 MM |
