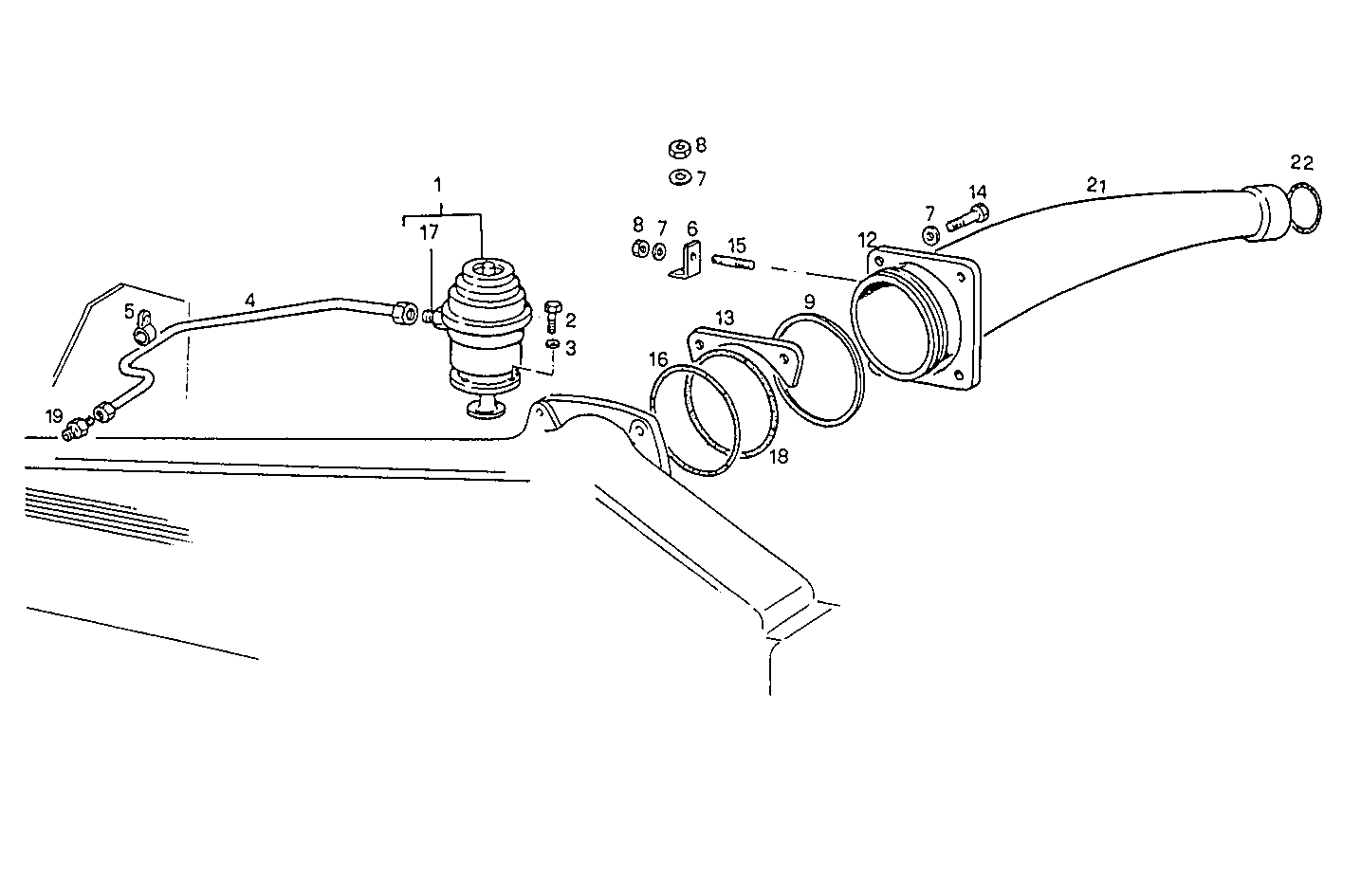

Item |
Part number |
Description |
1 |
8007503 |
VALVE WASTE-GATE - ASSY |
2 |
16689134 |
SOCKET-HEAD SCREW M6X16 MM |
3 |
17088474 |
WASHER Ø6X12 MM |
4 |
8016872 |
AIR PIPE/DUCT |
5 |
8006650 |
CLIP |
6 |
8006653 |
RETAINER |
7 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
8 |
17037931 |
HEXAGON NUT M8X1,25 |
9 |
8105951 |
CIRCLIP |
12 |
8105950 |
FLANGE |
13 |
8105952 |
PLATE |
14 |
16605924 |
SCREW M8X40 MM |
15 |
16729224 |
STUD M8X16 MM |
16 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
17 |
8012465 |
PIPE SOCKET |
18 |
17290781 |
O-RING Ø78,97X3,53 MM |
19 |
11211311 |
PIPE SOCKET M10X1 |
21 |
8018895 |
INTAKE ELBOW [from 01-96] |
22 |
17289881 |
O-RING Ø50,3 MM SP=3,5 MM |
