8060SRM25.11

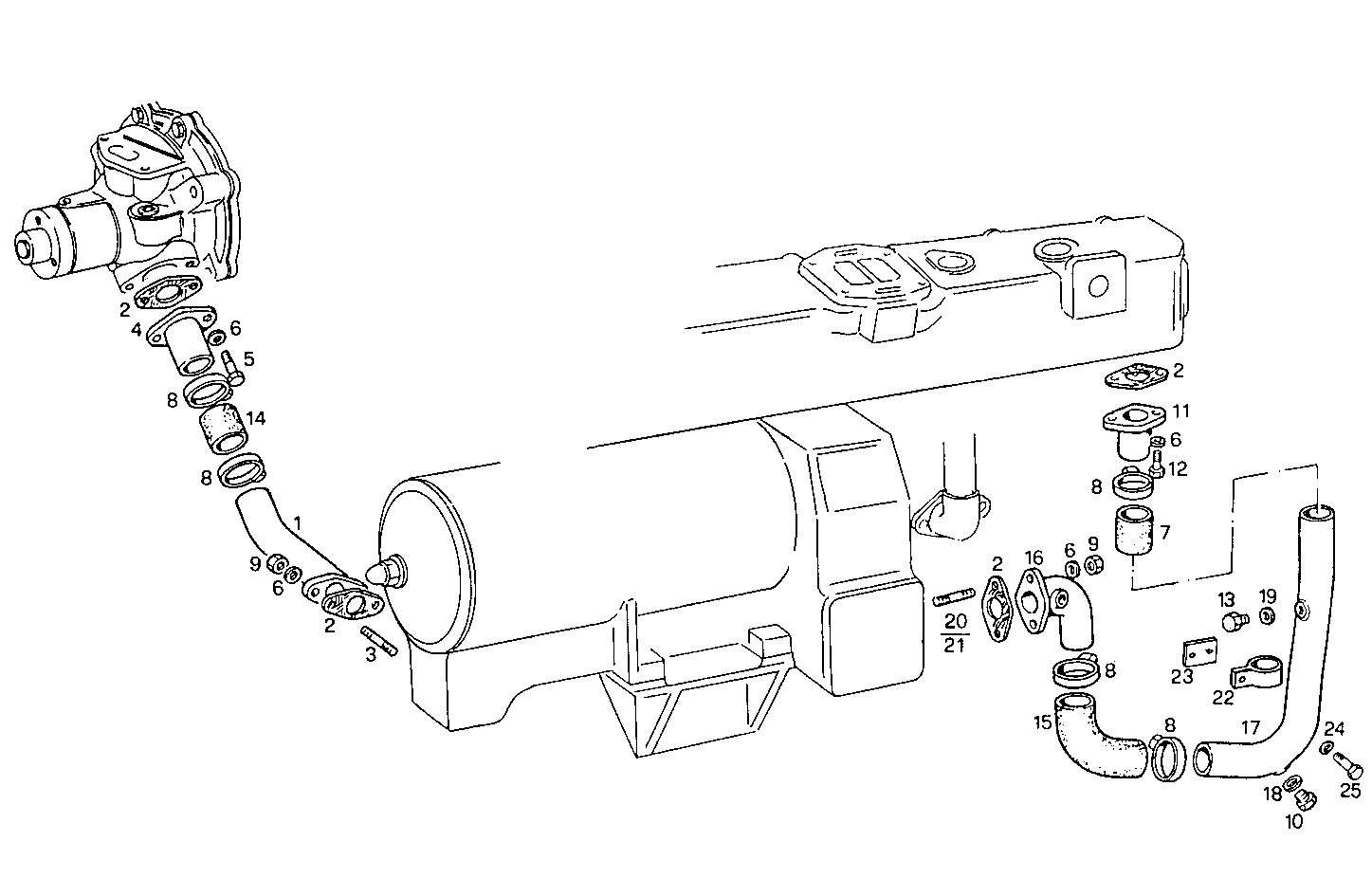

3210.217/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8006691 WATER PIPE
2 98418621 GASKET
3 16729324 STUD M8X12X20 MM
4 4772995 WATER PIPE
5 98401723 HEXAGON BOLT M8X1,25X12 MM
6 17094914 WASHER 8x16
7 4927830 RUBBER SLEEVE
8 17764793 CLIP Ø32/50 MM
9 17037931 HEXAGON NUT M8X1,25
10 11903140 PLUG M10X1,25
11 8100081 WATER PIPE
12 16605524 HEXAGON BOLT M8X20 MM
13 16992440 THREADED PLUG M16X1,5
14 17742687 RUBBER SLEEVE
15 4644083 WATER HOSE
16 8005662 WATER PIPE
17 8006642 WATER PIPE
18 4858606 GASKET Ø10X14X1 MM
19 4858609 WASHER Ø16X22 MM SP=1,5 MM
20 16729924 STUD M8X50 MM
21 13516921 STUD M8X12X22 MM
22 4936741 CLIP
23 8107203 RETAINER
24 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
25 16605424 SCREW M8X16 MM (8.8)
