8060SRM25.11

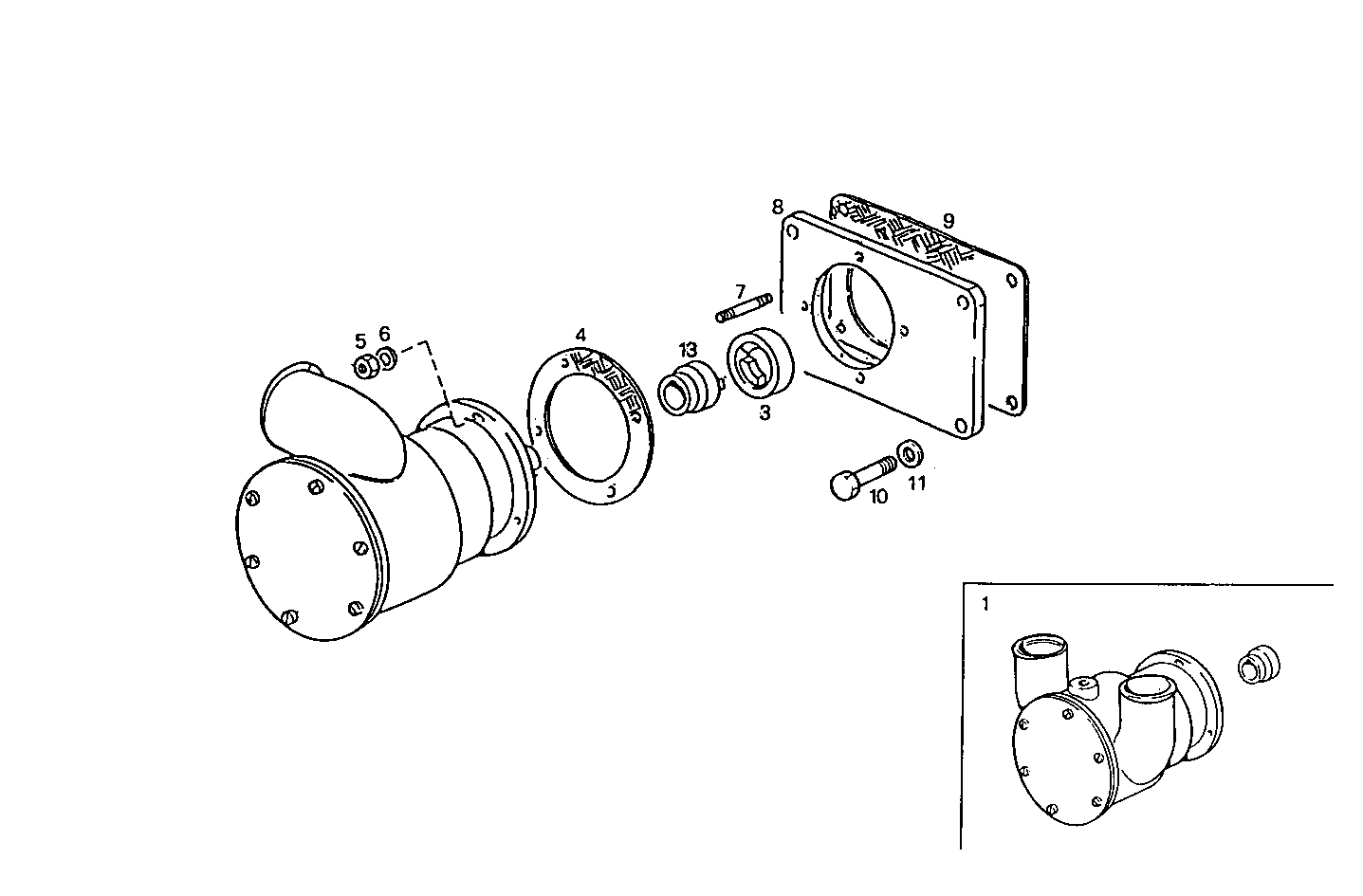

3380.030/01 SEA WATER PUMP - JABSCO
Item | Part number | Description |
---|---|---|
1 | 8110564 | SEA WATER PUMP ASSY JABSCO |
3 | 4621358 | RING |
4 | 8008734 | GASKET |
5 | 17037931 | HEXAGON NUT M8X1,25 |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
7 | 16729324 | STUD M8X12X20 MM |
8 | 8102115 | SUPPORT |
9 | 4850986 | FLAT ENGINE GASKET |
10 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
11 | 17088474 | WASHER Ø6X12 MM |
13 | 4934315 | COUPLER |
