8060SRM33.10

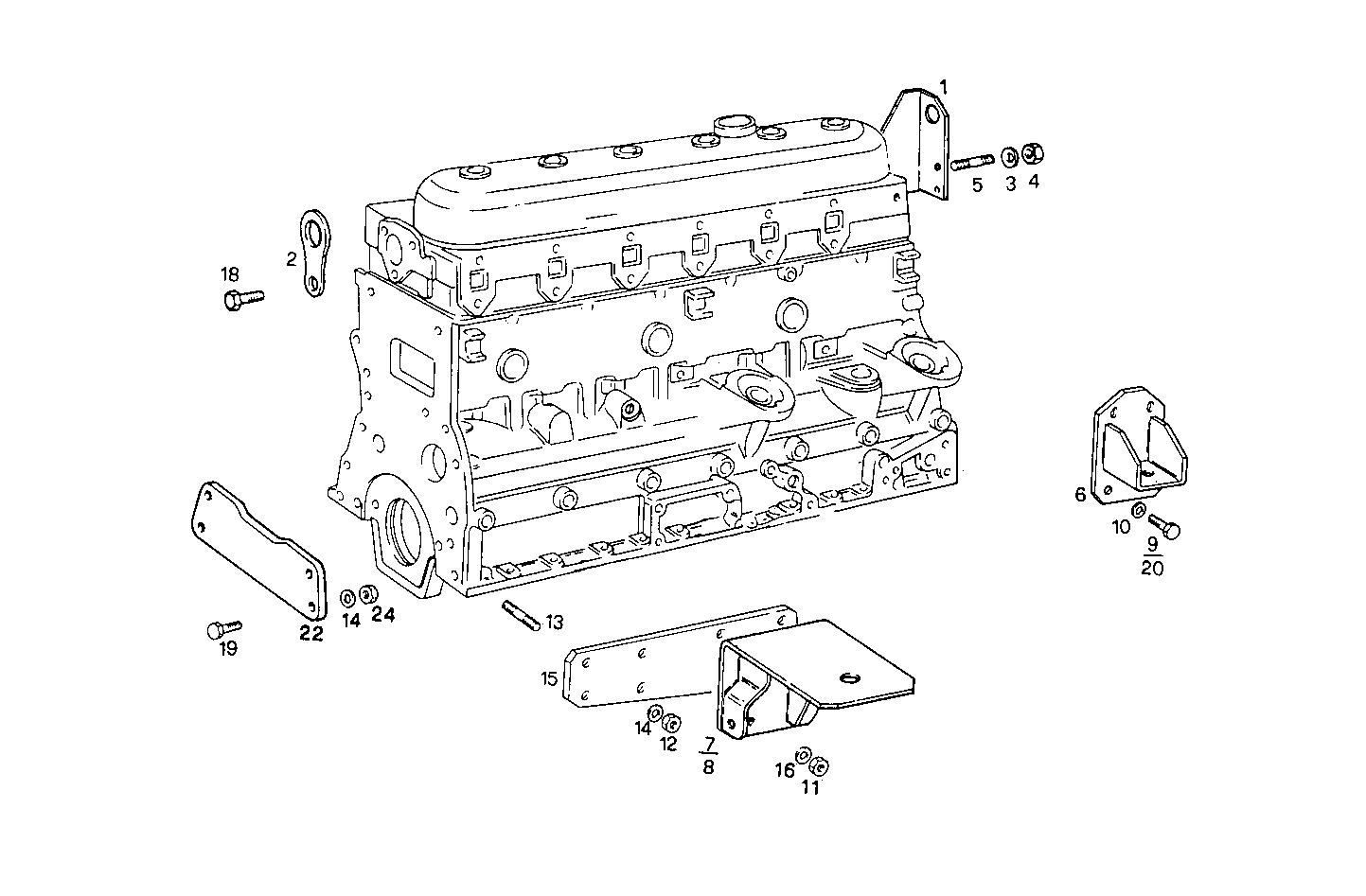

4500.123 ENGINE SUSPENSION

Iveco/FPT ENGINE SUSPENSION

Item Part number Description
1 8006194 HOOK
2 8007135 HOOK
3 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
4 17037931 HEXAGON NUT M8X1,25
5 16746624 STUD M8X20 MM (8.8)
6 8113092 SUPPORT REAR
7 8016916 SUPPORT RIGHT
8 8016917 SUPPORT LEFT
9 15004021 HEXAGON BOLT M10X1,25X25 MM
10 17090174 SPRING WASHER Ø10X20 MM
11 17038721 NUT M14X2 [from ...]
12 17038421 HEXAGON NUT M12 (8)
13 16733224 STUD M12X1,75X30
13 16762424 STUD
14 17091074 WASHER Ø12X24X2,8 MM
15 8010416 PLATE
16 17091674 WASHER Ø14X27X3,0 MM
19 16610034 SCREW M12X35 MM
20 11306924 HEXAGON BOLT M10X1,25X30 MM
22 8017950 PLATE
