8060SRM33.10

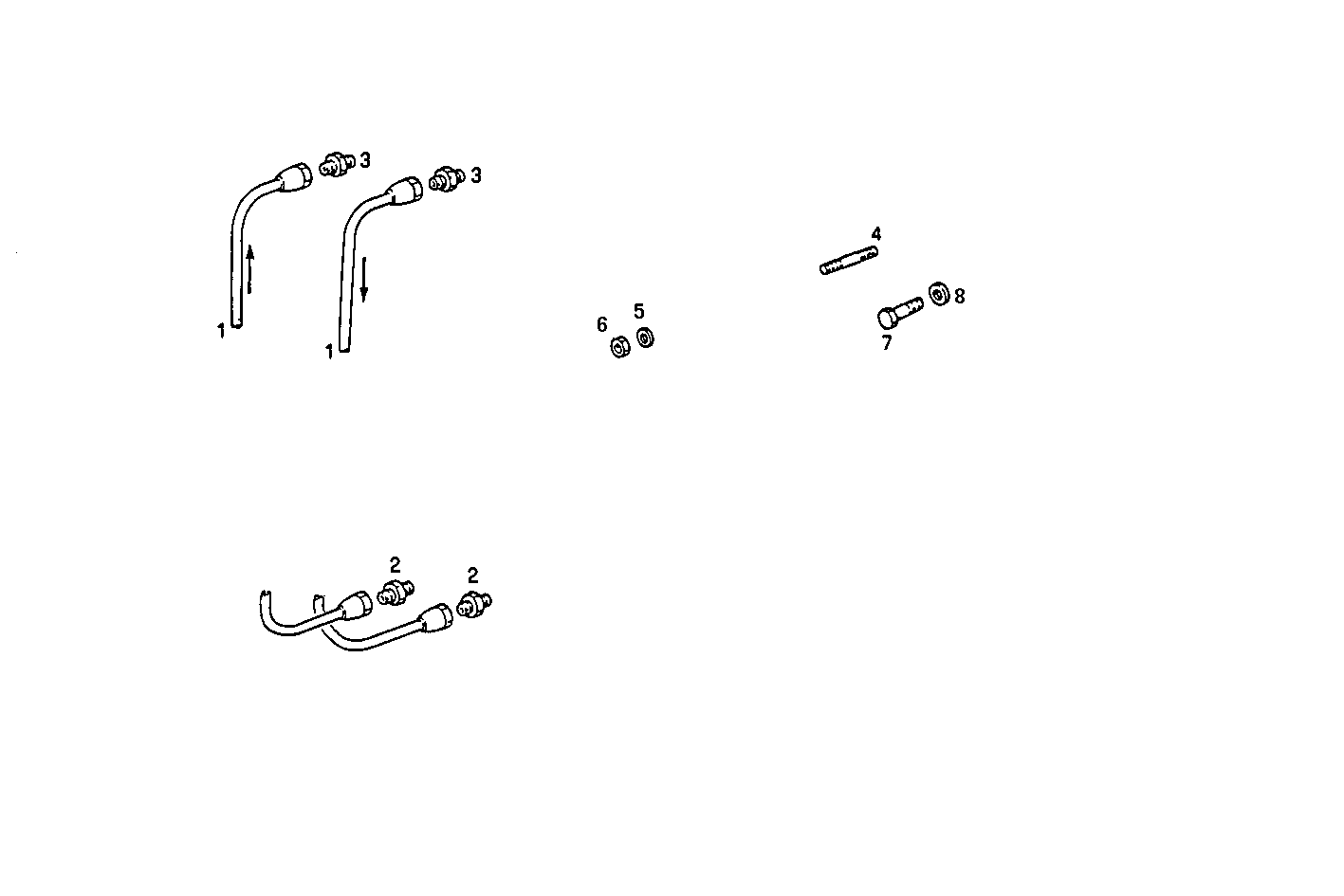

A13140006 ARRANGED FOR GEAR TECHNODRIVE TWIN DISC MG 506-1
| Item | Part number | Description |
|---|---|---|
| 1 | 4935779 | HOSE |
| 2 | 4935465 | PIPE SOCKET |
| 3 | 8101073 | PIPE SOCKET |
| 4 | 13449521 | STUD M10X15X25 |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17038221 | HEXAGON NUT M10 |
| 7 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
