8060SRM33.10

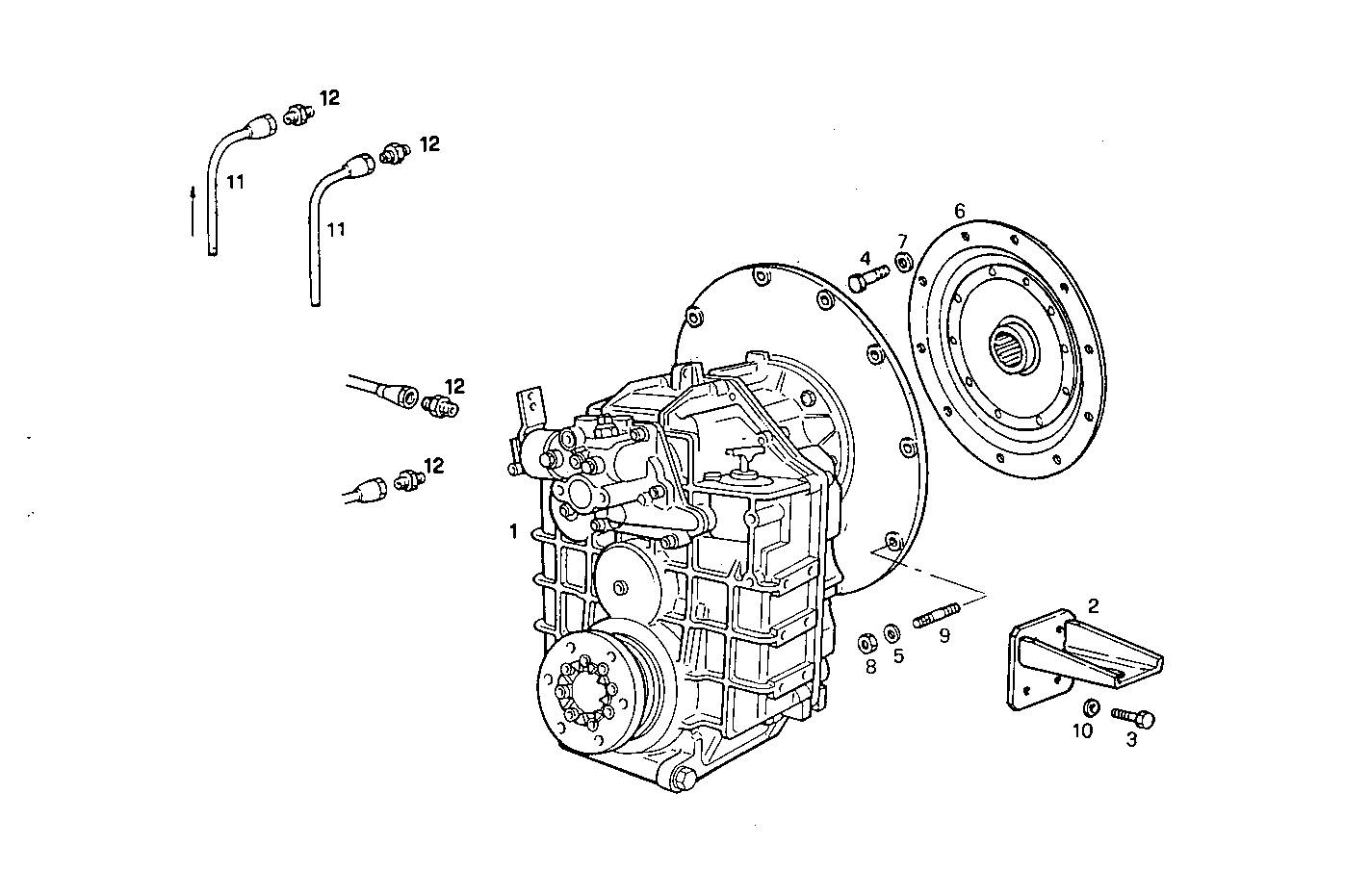

A51370004 MARINE GEAR HURTH HSW 800-V - ratio 1.57:1
Item | Part number | Description |
---|---|---|
1 | 8009634 | MARINE GEAR 1,57:1 |
2 | 8010993 | SUPPORT |
3 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
4 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
5 | 17090174 | SPRING WASHER Ø10X20 MM |
6 | 8032849 | FLEXPLATE |
7 | 17095004 | WASHER Ø10X18X2 MM |
8 | 17038221 | HEXAGON NUT M10 |
9 | 13449521 | STUD M10X15X25 |
10 | 17091074 | WASHER Ø12X24X2,8 MM |
11 | 8111496 | HOSE |
12 | 4935465 | PIPE SOCKET |
13 | 15970521 | HEXAGON BOLT M10X20 MM |
