8060SRM33.10

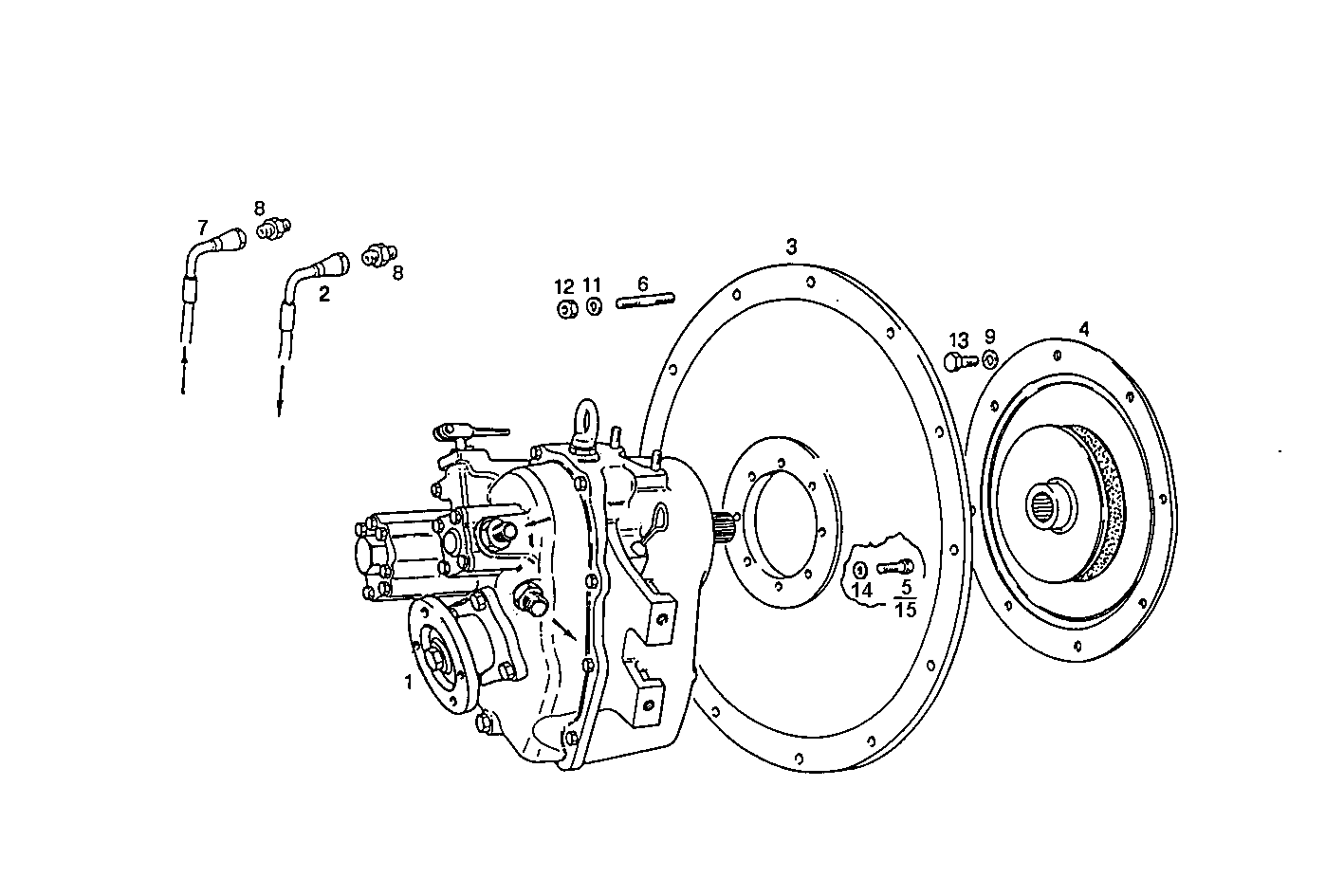

A51380001 MARINE GEAR TECHNODRIVE TM 800 A
| Item | Part number | Description |
|---|---|---|
| 1 | 8023681 | MARINE GEAR 1.53:1 |
| 2 | 8105620 | HOSE |
| 3 | 8012407 | COUPLING BELL |
| 4 | 8030931 | FLEXPLATE |
| 5 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 6 | 13449521 | STUD M10X15X25 |
| 7 | 4935779 | HOSE |
| 8 | 8101073 | PIPE SOCKET |
| 9 | 17095004 | WASHER Ø10X18X2 MM |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 17038221 | HEXAGON NUT M10 |
| 13 | 15970721 | SCREW M10X1,25X25 |
| 14 | 17091074 | WASHER Ø12X24X2,8 MM |
| 15 | 16610024 | SCREW M12X35 |
