8060SRM33.10A002

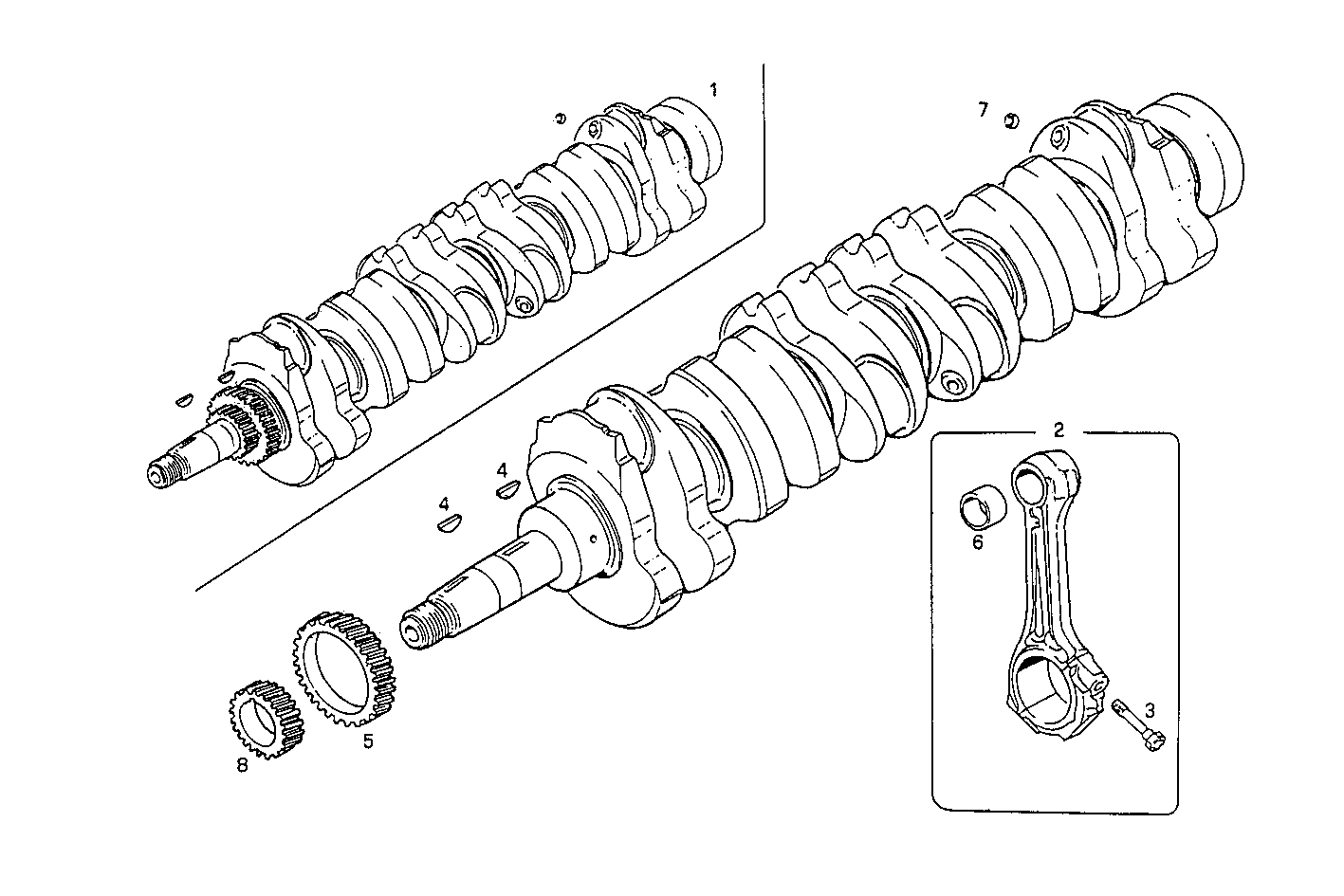

0800.057 CRANK SHAFT - CONNECTING RODS

Iveco/FPT CRANK SHAFT - CONNECTING RODS

Item Part number Description
1 8020556 CRANK SHAFT ASSY
2 99472584 CONN.ROD ASSY.
3 4780627 BIG-END BOLT
4 4655844 KEY
5 4770255 OIL PUMP DRIV.GEA
6 98459977 BIG-END BUSH VANDERVELL
7 16987501 LOCK PLUG Ø7 MM
8 8020312 GEAR
