8060SRM33.10A002

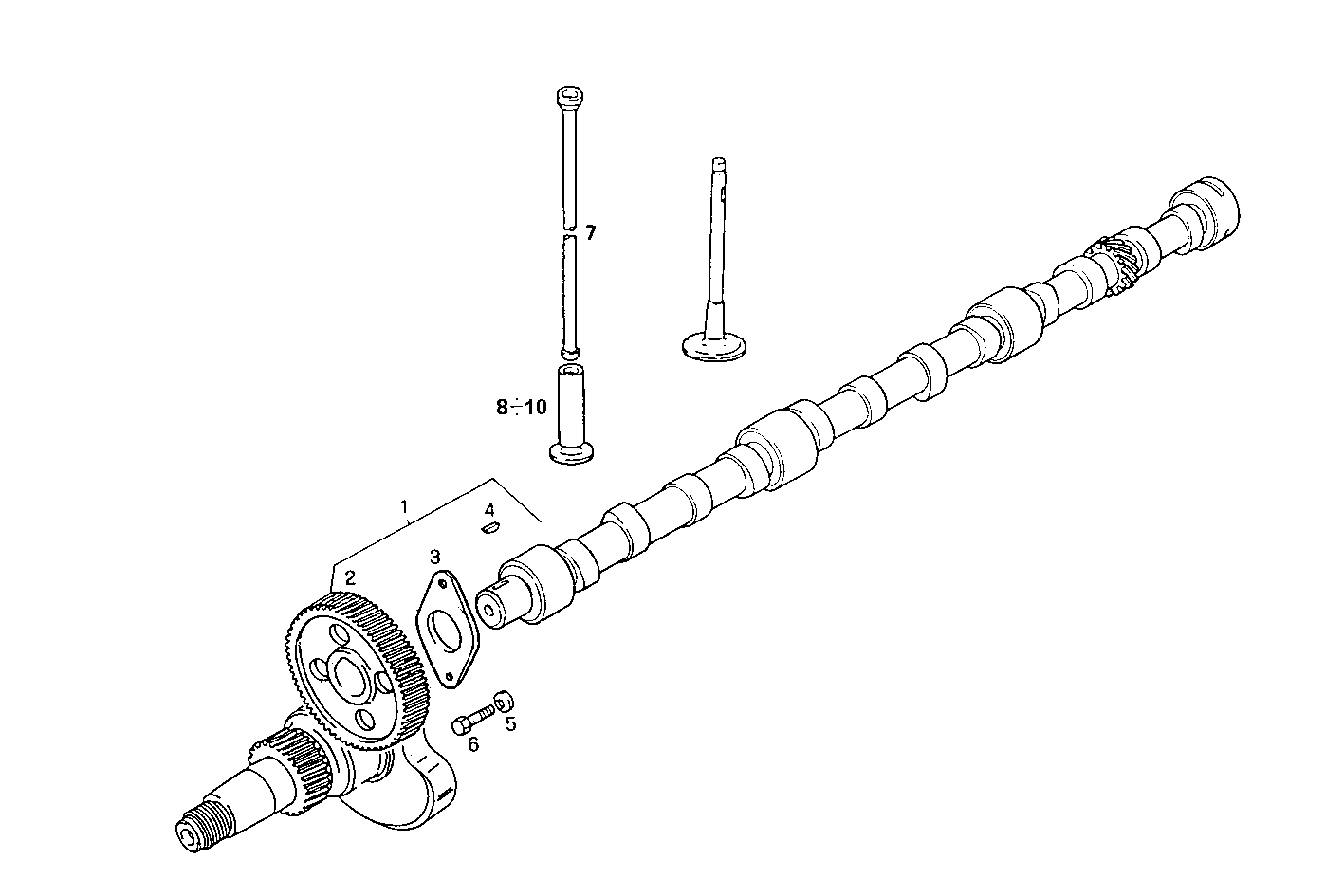

1250.076 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4784107 | CAMSHAFT ASSY |
| 2 | 4769412 | TIMING INTERM.GEA |
| 3 | 4599398 | PLATE |
| 4 | 17221220 | KEY 5X9 MM |
| 5 | 17089574 | WASHER Ø8X16 MM |
| 6 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 7 | 98471529 | PUSHROD |
| 8 | 98471524 | VALVE TAPPET +0,0 MM |
| 9 | 98471527 | TAPPET +0,3 MM |
| 10 | 98471526 | TAPPET +0,2 MM |
