8060SRM33.10A002

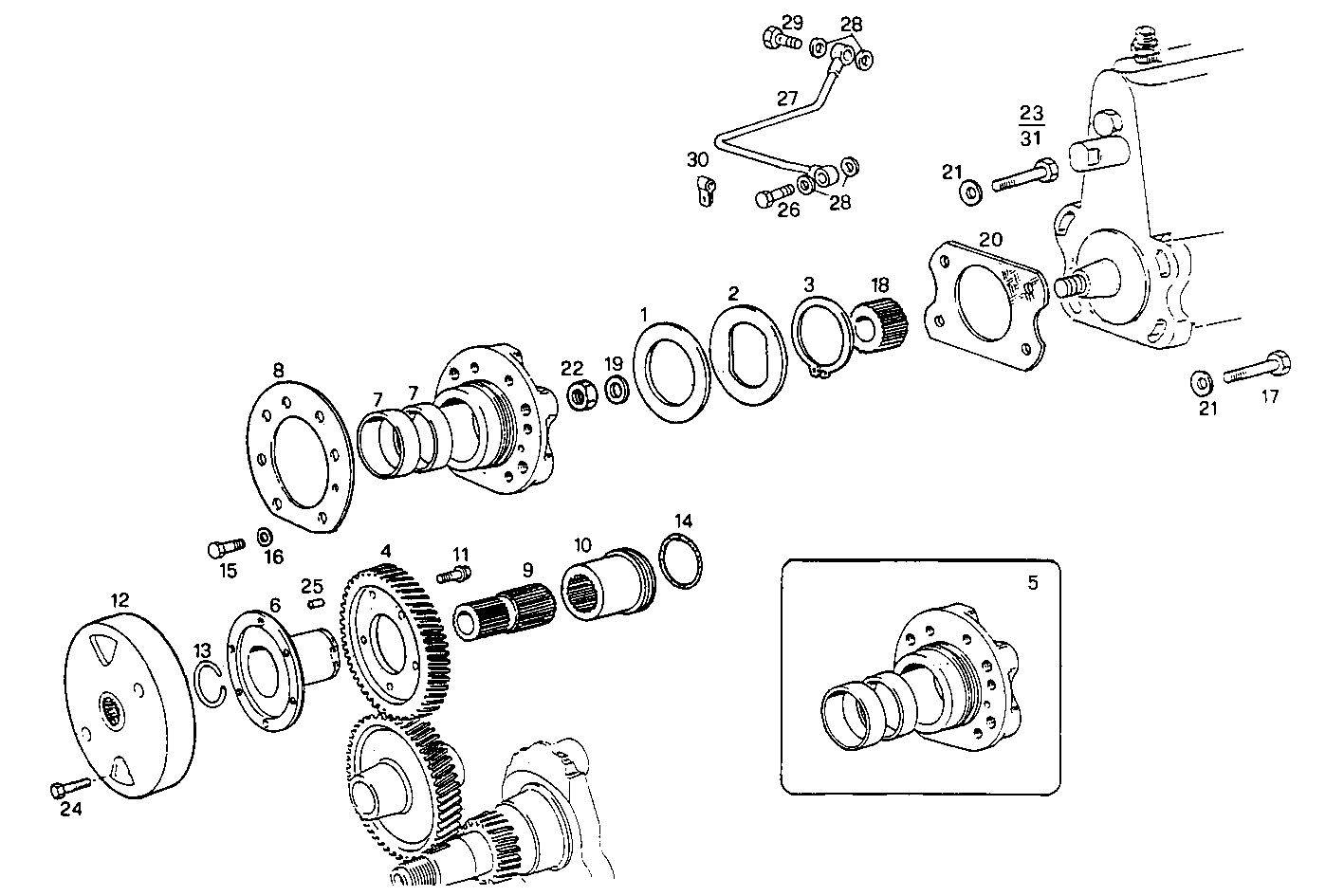

1410.115 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 4809425 WASHER Ø50 MM
2 4667498 WASHER
3 4708213 CIRCLIP
4 4769422 INJ.PUMP DRIV.GEA
5 4779227 SUPPORT ASSY
6 4769426 INJECT.PUMP SPIND
7 4769427 BUSH VANDERVELL
8 4849996 FLAT ENGINE GASKET
9 4769430 INJECT.PUMP SLEEVE
10 4769431 INJECT.PUMP BUSH
11 4798845 SCREW
12 4779607 ADVANCE UNIT ASSY WEBER ALTECNA
13 17085376 CIRCLIP Ø30 MM
14 17283081 O-RING Ø36,17X2,62 MM
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17094914 WASHER 8x16
17 8006589 SCREW
18 4838261 BUSH
19 4732693 WASHER
20 8838914 GASKET
21 17090474 SPRING WASHER Ø10X27 MM SP=2,5
22 4732694 NUT
23 15970921 HEXAGON BOLT M10X1,25X35 MM
24 4794007 SCREW
25 17283210 PIN
26 4864079 SCREW CONNECTOR M10X1
27 98412645 OIL LINE
28 98474305 WASHER Ø10X17 MM SP=2,3
29 4864080 SCREW CONNECTOR M10X1,25
30 4804122 CLIP
31 8032587 SCREW
