8060SRM33.10A002

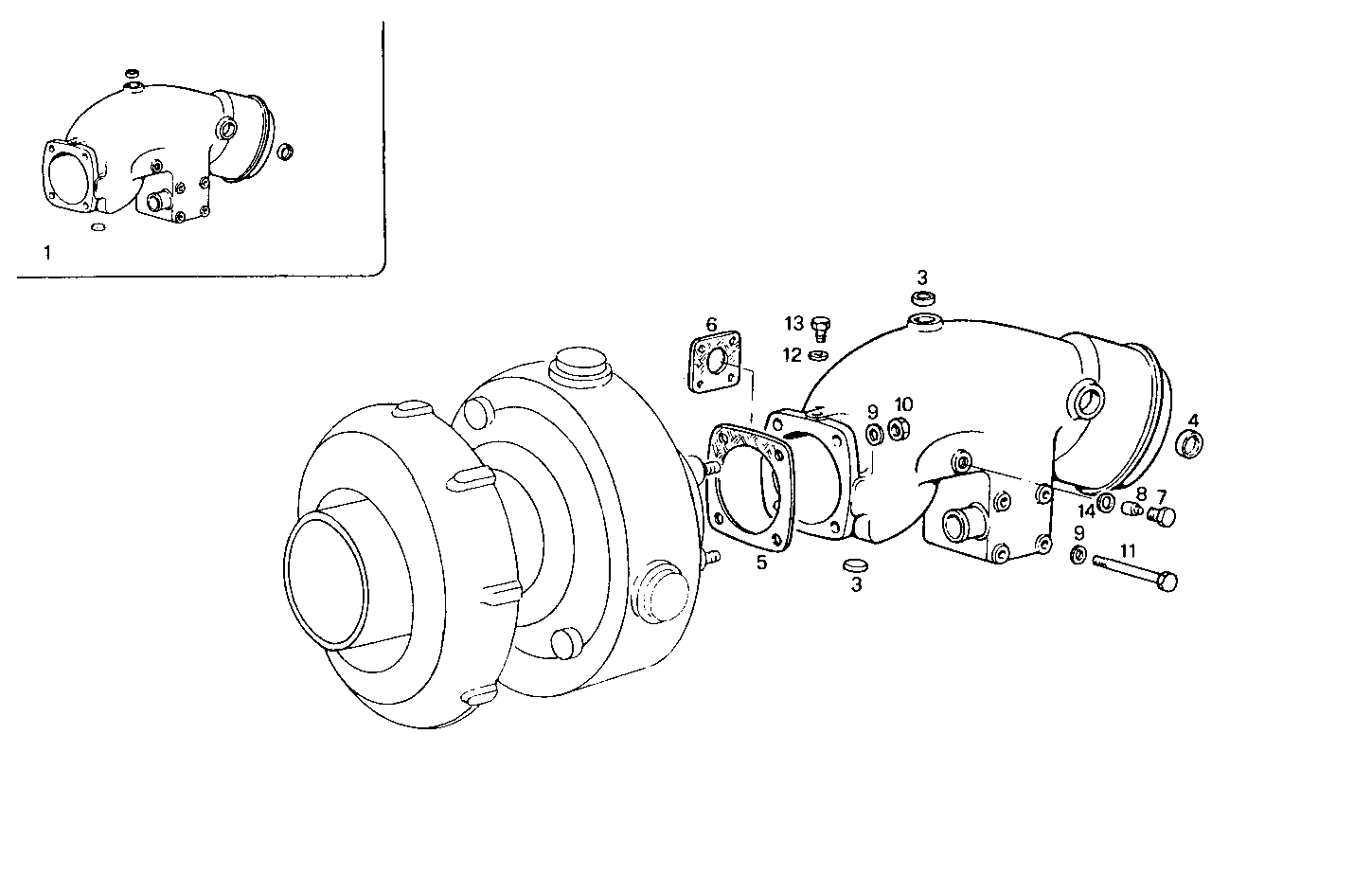

2420.177/01 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8020395 | EXHAUST COOL. ELBOW ASSY |
| 3 | 14282470 | LOCK PLUG Ø28 MM |
| 4 | 16991170 | LOCK PLUG Ø36 MM |
| 5 | 8005451 | GASKET |
| 6 | 4833835 | GASKET |
| 7 | 4917793 | PLUG M18 |
| 8 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 17037921 | HEXAGON NUT M8X1,25 |
| 11 | 16606924 | SCREW M8X110 |
| 12 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 13 | 16992211 | THREADED PLUG M12X1,5 |
| 14 | 16508360 | WASHER 18x22x1,5 |
