8060SRM33.10A002

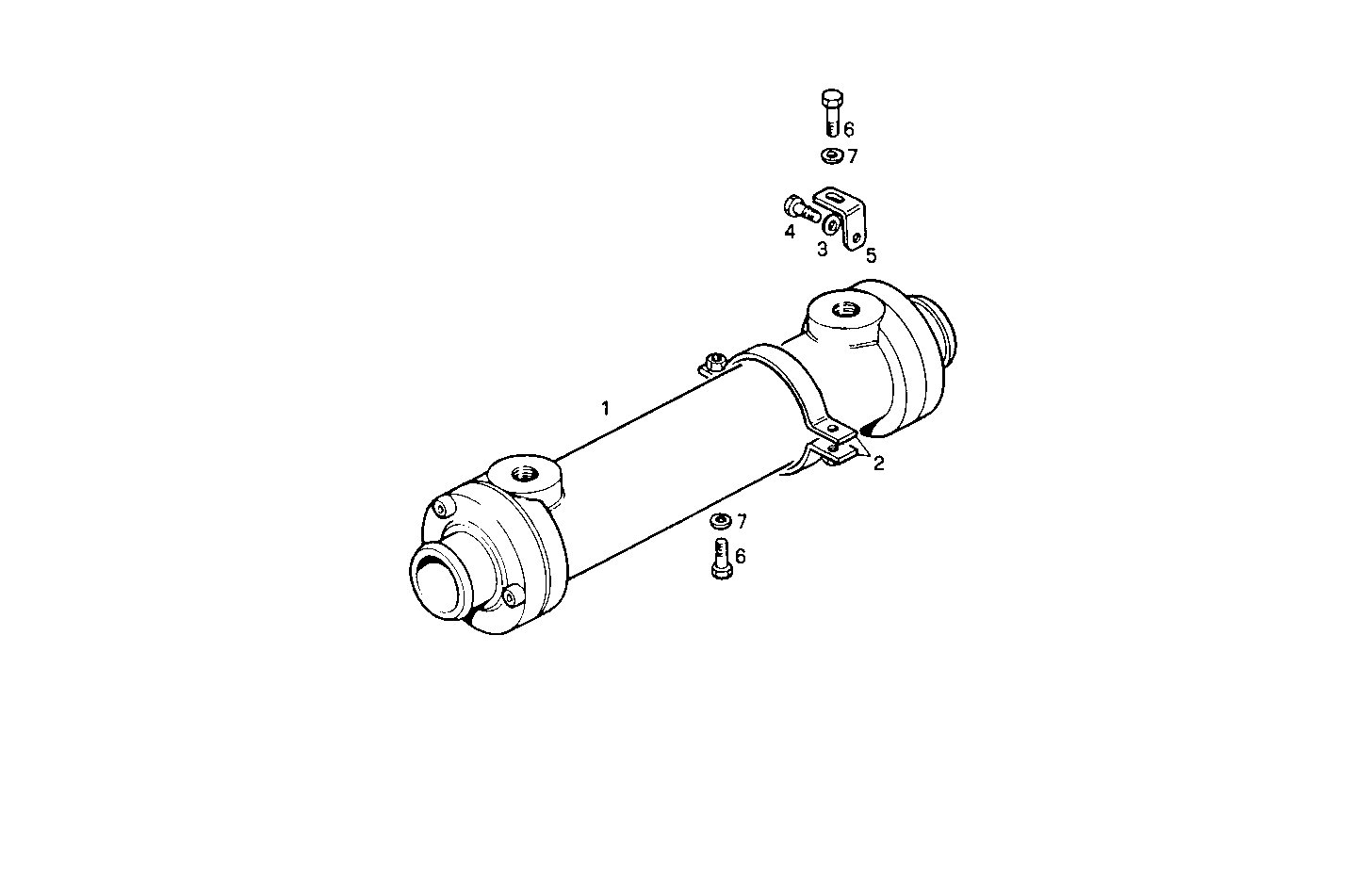

3350.006/01 REVERSER WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8016304 | OIL/WATER HEAT EXCHANGER ASSY |
| 2 | 5116798 | CLIP ASSY [from 06-93] |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 5 | 8103023 | RETAINER |
| 6 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
