8061.25.462

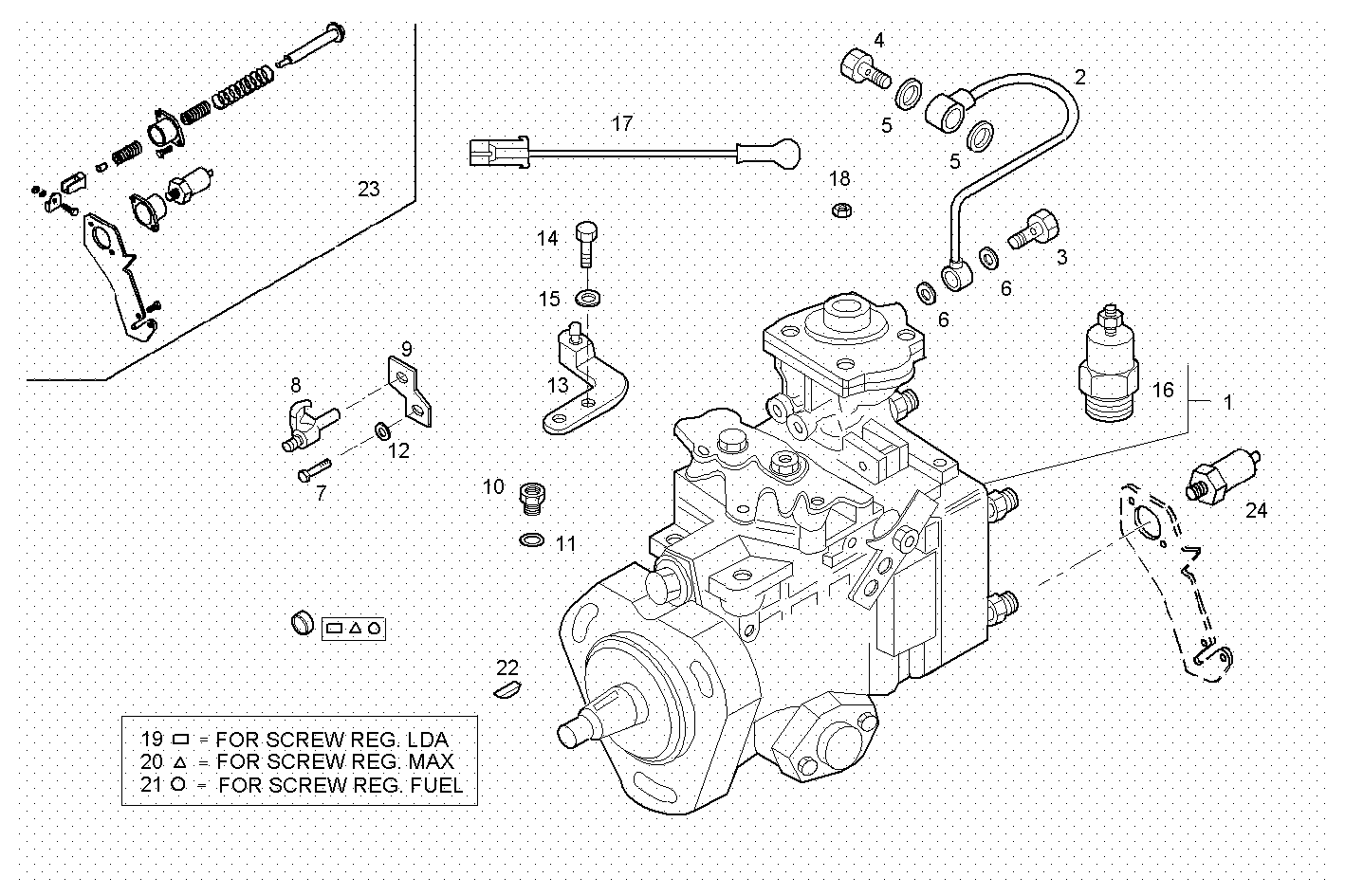

1400.381 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 500326169 DISTRIB.INJ.PUMP ASSY
2 4848475 FUEL LINE
3 4753761 SCREW CONNECTOR
4 4864081 SCREW CONNECTOR
5 10279460 SEAL GASKET Ø10X16 MM SP=0,5
6 10262760 SEAL GASKET Ø8,2 MM
7 15970524 HEXAGON BOLT M10X1,25X20
8 17868280 SPRING CLAMP L=30 MM
9 99481827 FASTENING BRACKET
10 4802434 THREADED UNION M12X1,5
11 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 98445678 LEVER
14 16603677 HEXAGON BOLT M6X16 MM
15 17798174 SPRING WASHER Ø6,1X11,8 MM
16 8100253 ELECTROVALVE 12V
17 98438959 WIRE/CABLE
18 16979231 HEXAGON NUT M5
19 98488857 CAP
20 98488858 CAP
21 98488859 CAP
22 10205820 KEY 4X6,5 MM
23 8094611 SETTING DEVICE
24 93160151 TRANSMITTER KSB
