8061C05.01

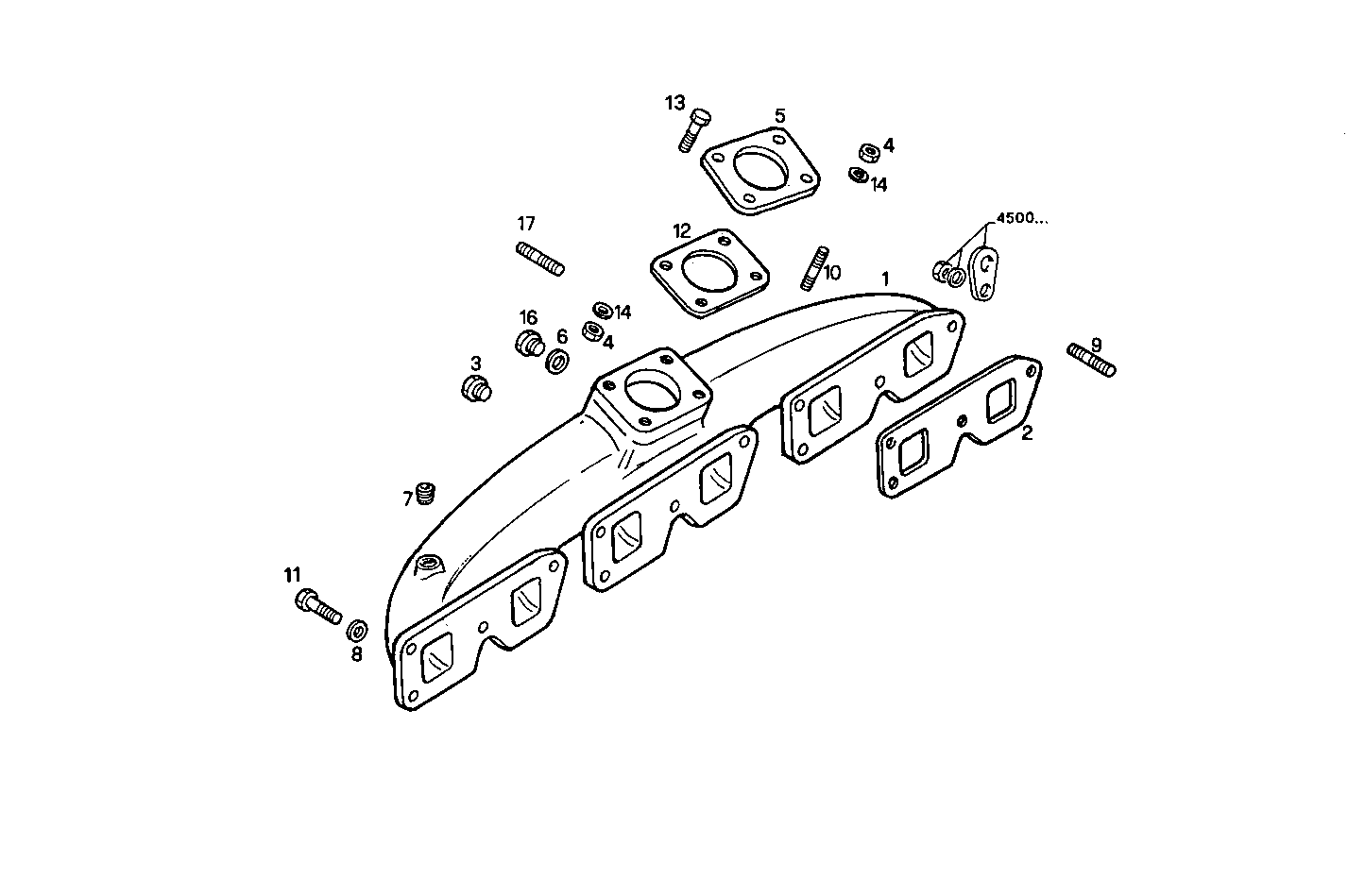

0710.068 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 4776966 | INTAKE ELBOW |
| 2 | 4851921 | INTAKE ELBOW GASK. |
| 3 | 4577310 | THREADED PLUG |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 4935889 | FLANGE |
| 6 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 7 | 16997711 | LOCK PLUG M22X1,5 |
| 8 | 17094914 | WASHER 8x16 |
| 9 | 13543321 | STUD M8X16X20 MM |
| 10 | 13449521 | STUD M10X15X25 |
| 11 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 12 | 98400790 | FLAT ENGINE GASKET |
| 13 | 16605824 | HEXAGON BOLT M8X35 MM |
| 14 | 17090174 | SPRING WASHER Ø10X20 MM |
| 16 | 4753563 | PLUG M10X1,5 |
| 17 | 13449824 | STUD M10X1,25X15 MM |
