8061C05.01

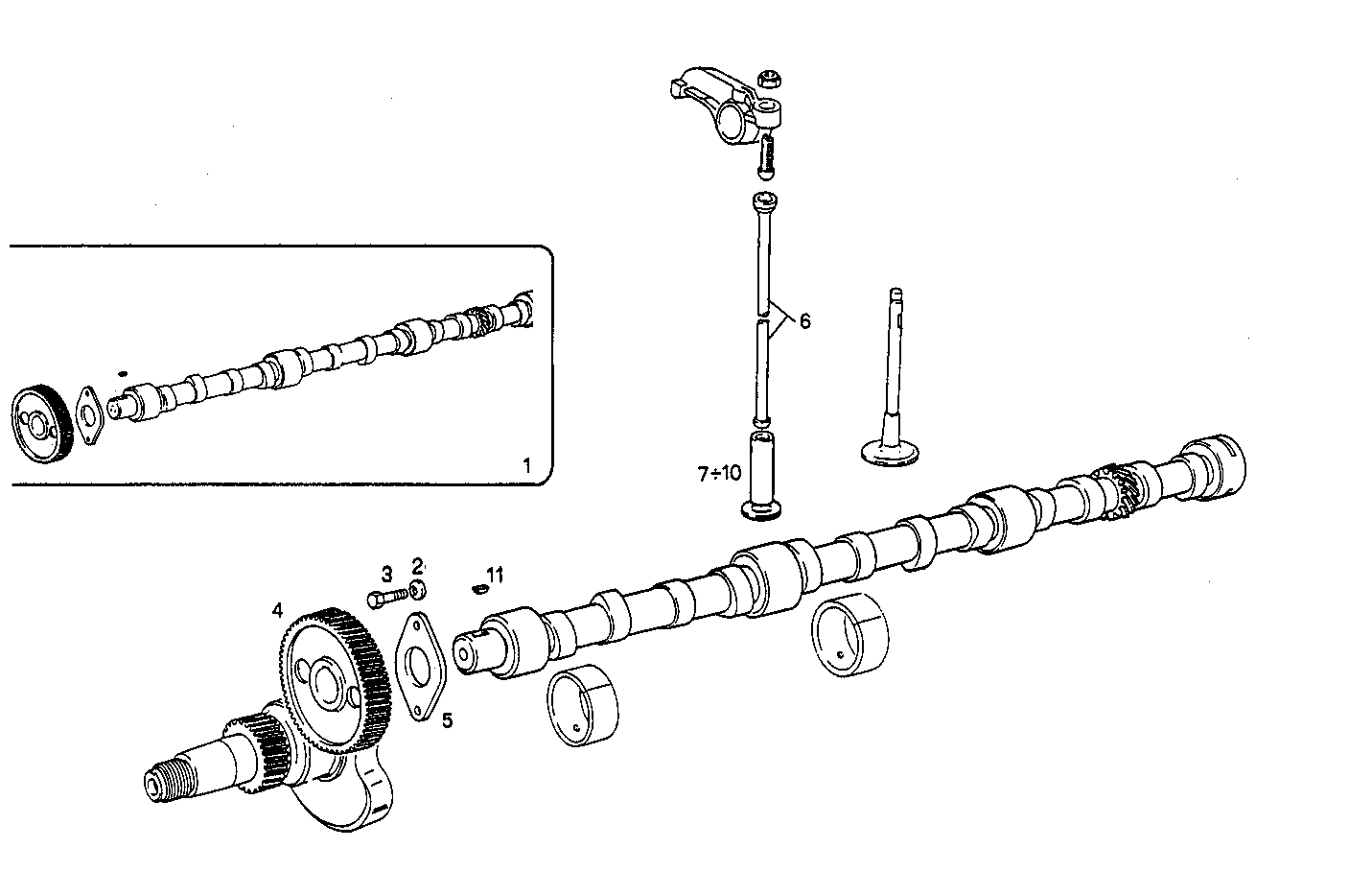

1250.036 TIMING PARTS
Item | Part number | Description |
---|---|---|
1 | 4784107 | CAMSHAFT ASSY |
2 | 11193871 | WASHER Ø8X16X1,4 MM |
3 | 16043421 | HEXAGON BOLT M8X20 MM |
4 | 4769412 | TIMING INTERM.GEA |
5 | 4599398 | PLATE |
6 | 98471533 | PUSHROD GKN |
7 | 98471524 | VALVE TAPPET +0,0 MM |
8 | 98471525 | TAPPET +0,1 MM |
9 | 98471526 | TAPPET +0,2 MM |
10 | 98471527 | TAPPET +0,3 MM |
11 | 10205910 | KEY 5X9 MM |
