8061C05.01

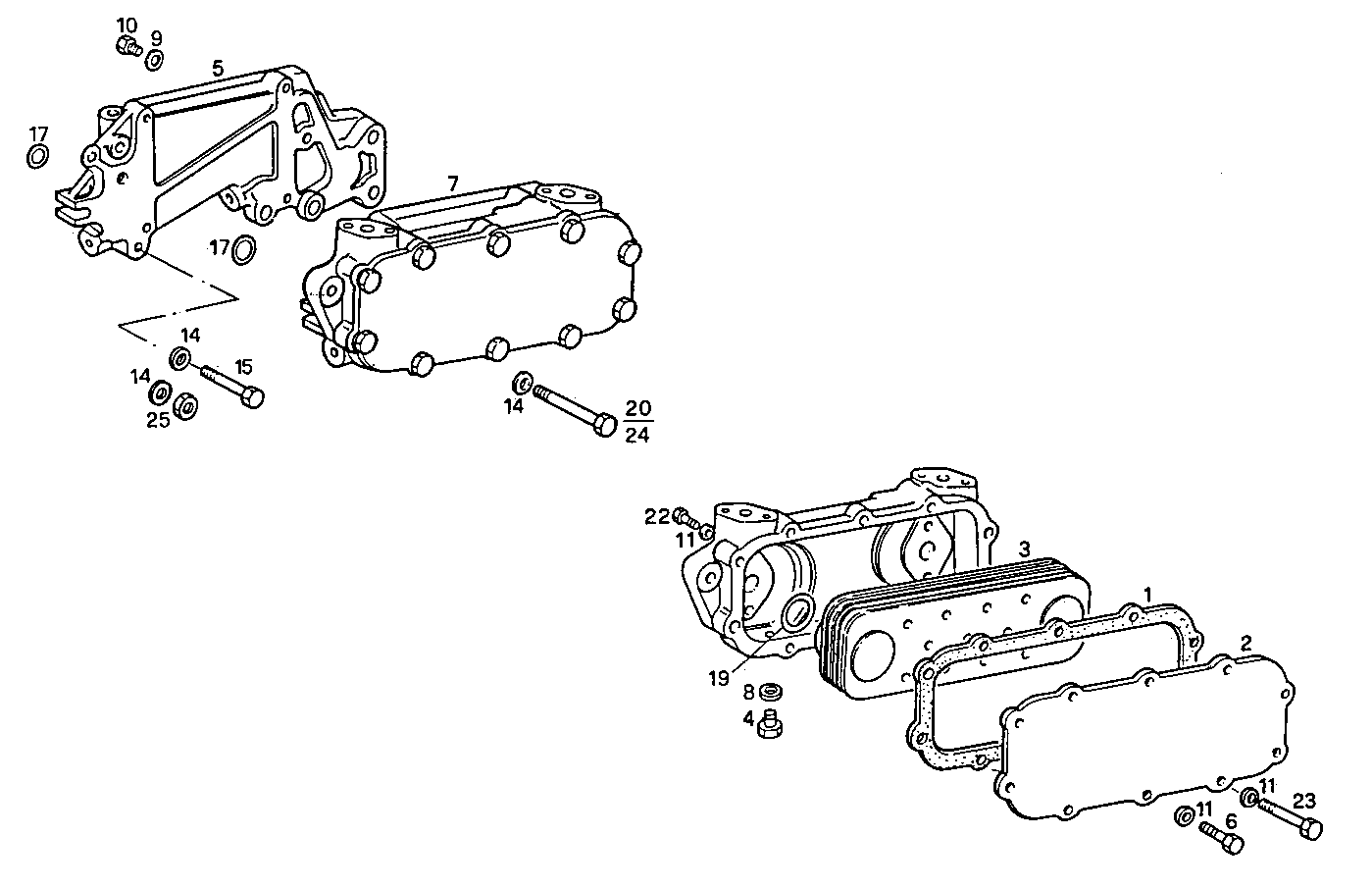

3100.028 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 98400786 FLAT ENGINE GASKET
2 4755010 HEAT EXCHANG.COVER
3 98417614 OIL COOLER
4 98435232 PLUG
5 4763099 SUPPORT
6 16605734 HEXAGON BOLT M8X30 MM
7 98428717 HEAT EXCHANGER ASSY
8 10260060 SEAL GASKET Ø8X12X1 MM
9 10263160 SEAL GASKET Ø18X24 MM SP=1 MM
10 10273111 LOCK PLUG M18X1,5
11 10519601 WASHER Ø8X17 MM
14 11198671 SPRING WASHER Ø13 MM
15 11234721 HEXAGON BOLT M10X1,25X45 MM
17 14457481 O-RING Ø18,72 MM SP=2,62 MM
19 14458281 O-RING Ø2,62X31,42 MM
20 15540721 HEXAGON BOLT M12X45 MM
22 16043224 SCREW M8X16 MM
23 16045021 HEXAGON BOLT M8X90 MM
24 16610224 HEXAGON BOLT M12X1,75X45 MM
25 17038221 HEXAGON NUT M10
