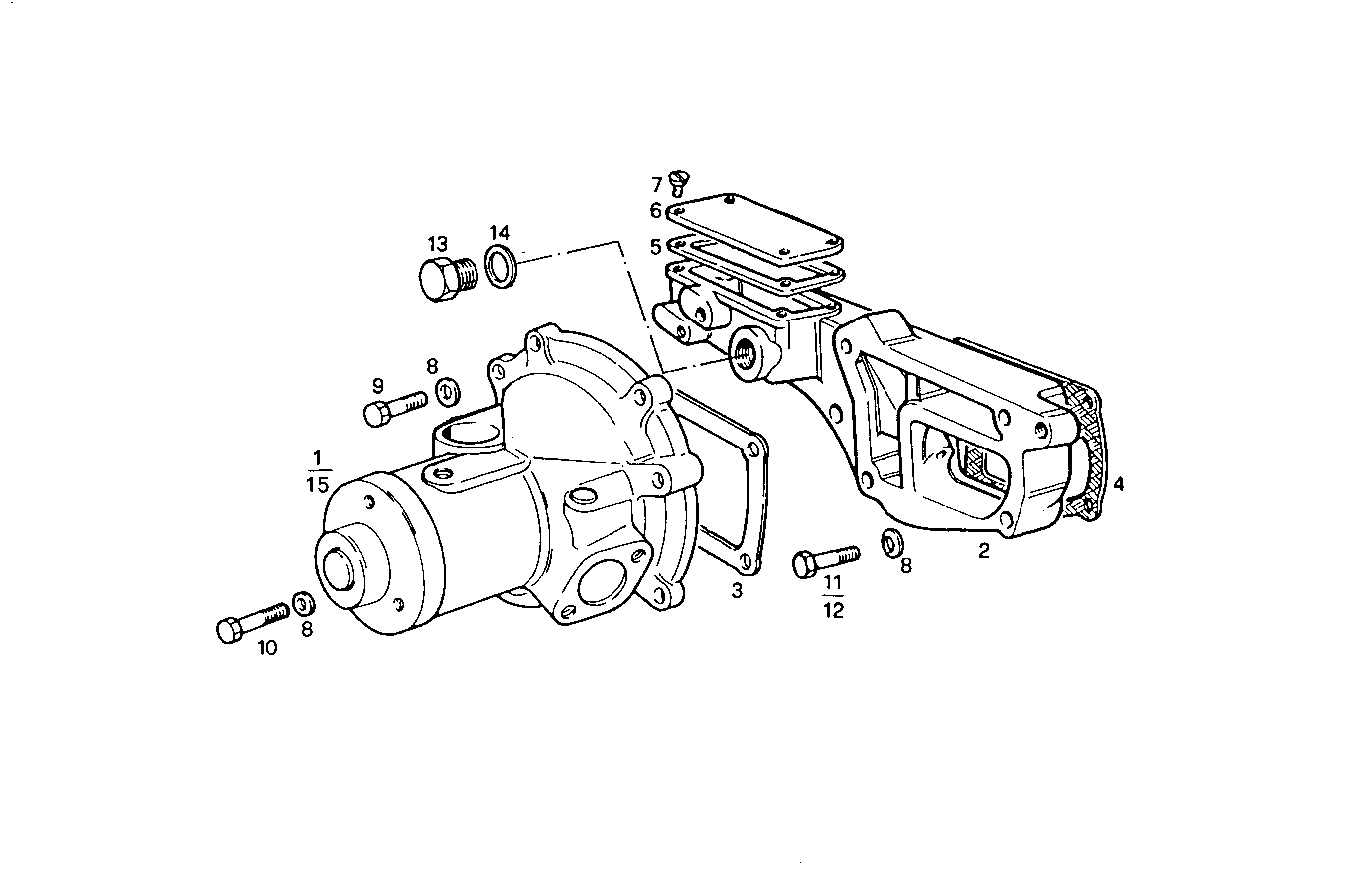

| Item |
Part number |
Description |
|
1 |
4813370 |
WATER PUMP ASSY [up to 657423] |
|
2 |
4626119 |
SUPPORT |
|
3 |
98400776 |
FLAT ENGINE GASKET |
|
4 |
98400779 |
FLAT ENGINE GASKET |
|
5 |
98400783 |
FLAT ENGINE GASKET |
|
6 |
4919302 |
COVER |
|
7 |
18023614 |
SCREW M8X14 |
|
8 |
11190571 |
SPRING WASHER Ø10X20 MM SP=2,3 |
|
9 |
15888721 |
HEXAGON BOLT M10X1,25X55 MM |
|
10 |
16288624 |
HEXAGON BOLT M10X1,25X35 MM |
|
11 |
15971521 |
HEXAGON BOLT M10X85 MM |
|
12 |
15972021 |
HEXAGON BOLT M10X1,25X110 MM |
|
13 |
16992440 |
THREADED PLUG M16X1,5 |
|
14 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
15 |
98497117 |
WATER PUMP ASSY [up to 02-97] |
