8061C05.01

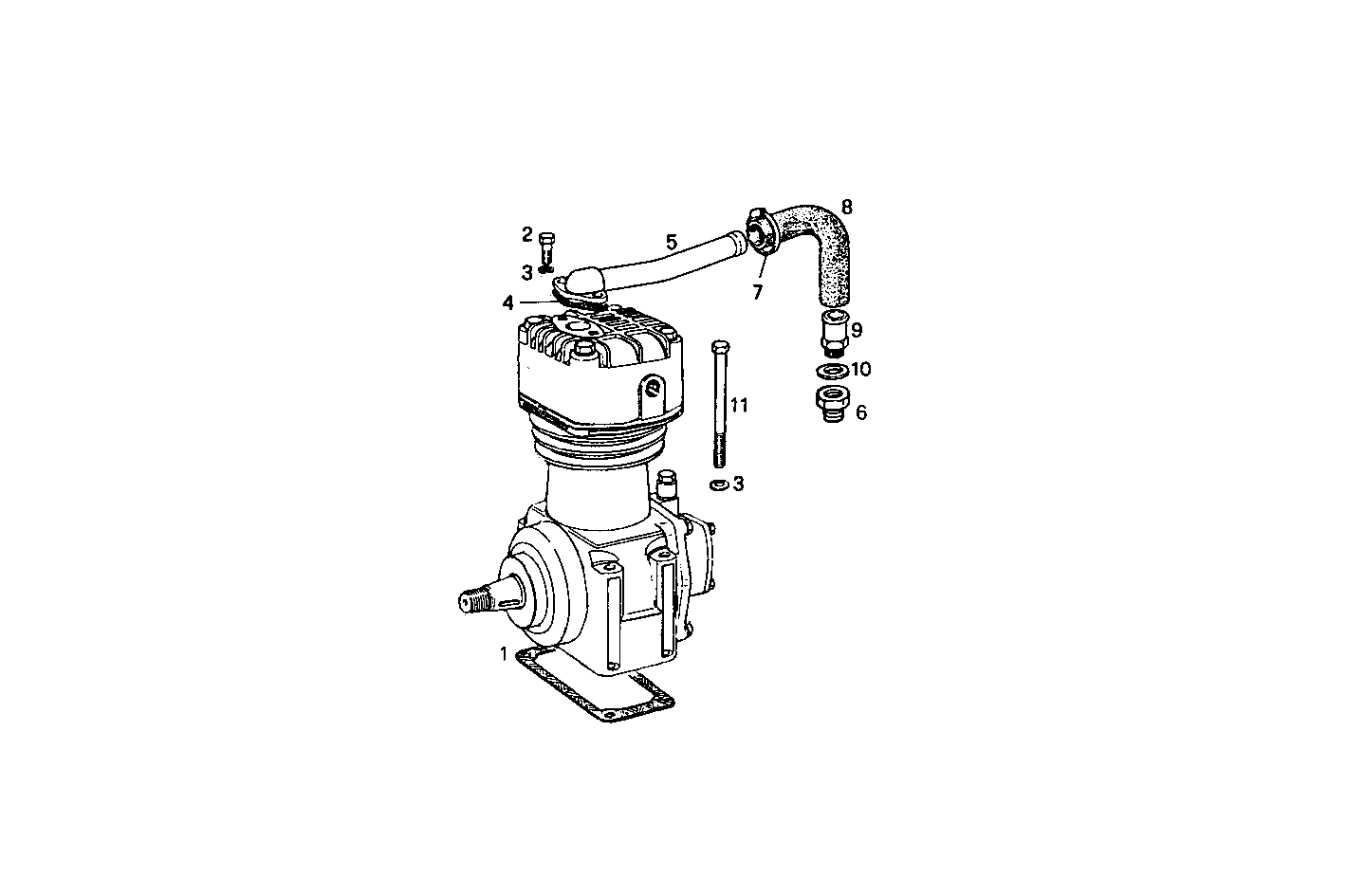

A18020017/03 AIR COMPRESSOR - if hydraulic pump not fitted - 165cc
| Item | Part number | Description |
|---|---|---|
| 1 | 4601884 | FLAT ENGINE GASKET |
| 2 | 16043421 | HEXAGON BOLT M8X20 MM |
| 3 | 17089574 | WASHER Ø8X16 MM |
| 4 | 619376 | FLAT ENGINE GASKET |
| 5 | 8108951 | AIR PIPE/DUCT |
| 6 | 4633506 | THREADED UNION M22X1,5 |
| 7 | 12182190 | CLIP |
| 8 | 4616762 | RUBBER SLEEVE |
| 9 | 4555394 | ELBOW COUPLING |
| 10 | 10260360 | SEAL GASKET Ø24,3 MM |
| 11 | 16045021 | HEXAGON BOLT M8X90 MM |
