8061C05.01

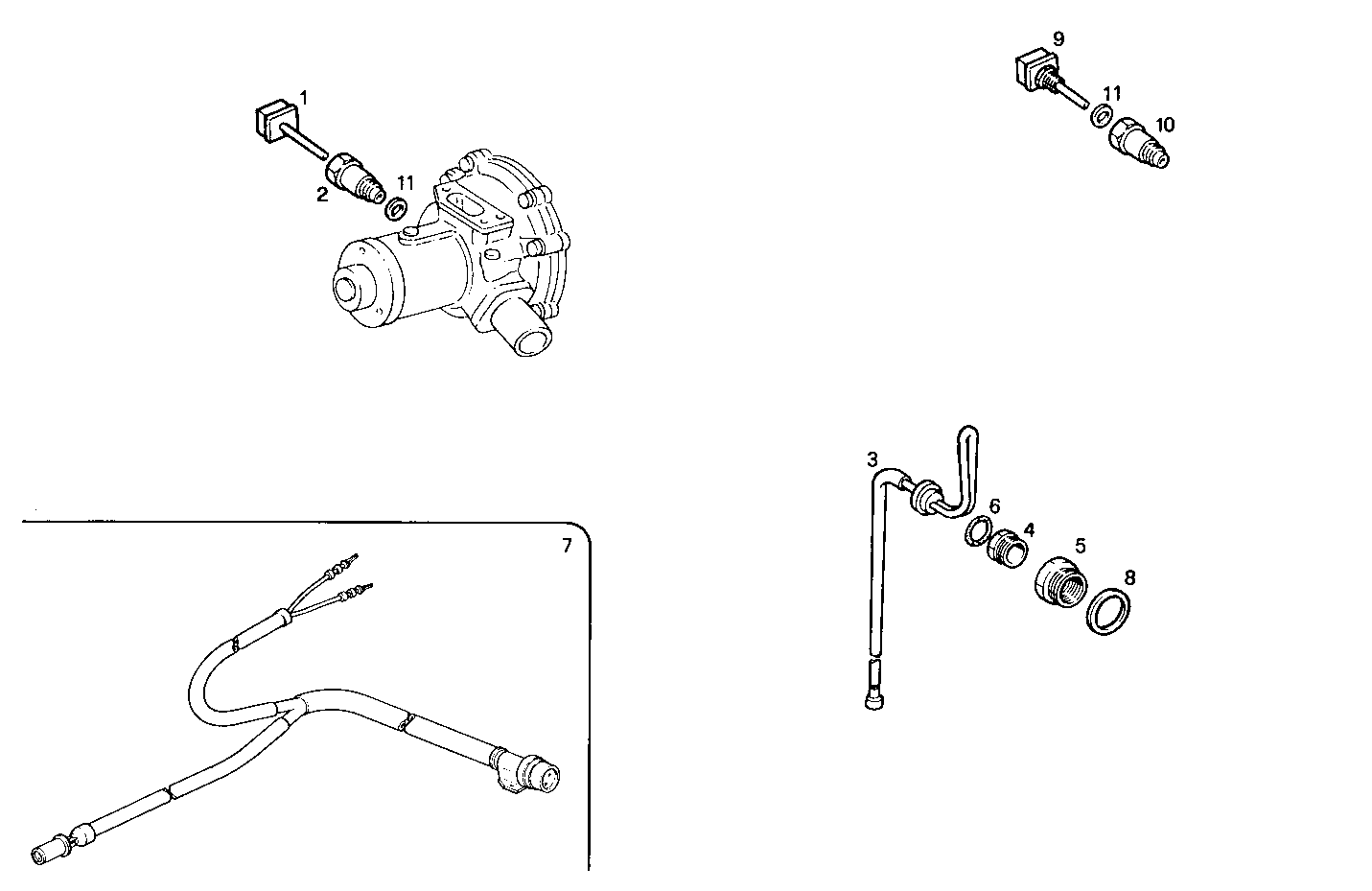

A20040045 WATER PREHEATER DEVICE - 220V

Iveco/FPT WATER PREHEATER DEVICE - 220V

Item Part number Description
1 8102863 THERMOSTAT
2 4936182 SPACING BAR
3 8016093 RESISTOR
4 8016092 PIPE SOCKET
5 8016070 PIPE SOCKET
6 17282381 O-RING Ø25,07 MM SP=2,62 MM
7 8016257 WIRE/CABLE
8 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
9 8017120 THERMOSTAT [from 10-93]
10 8017119 SPACING BAR [from 10-93]
11 4858610 WASHER Ø18X24 MM SP=1,5 MM
