8061C05.05

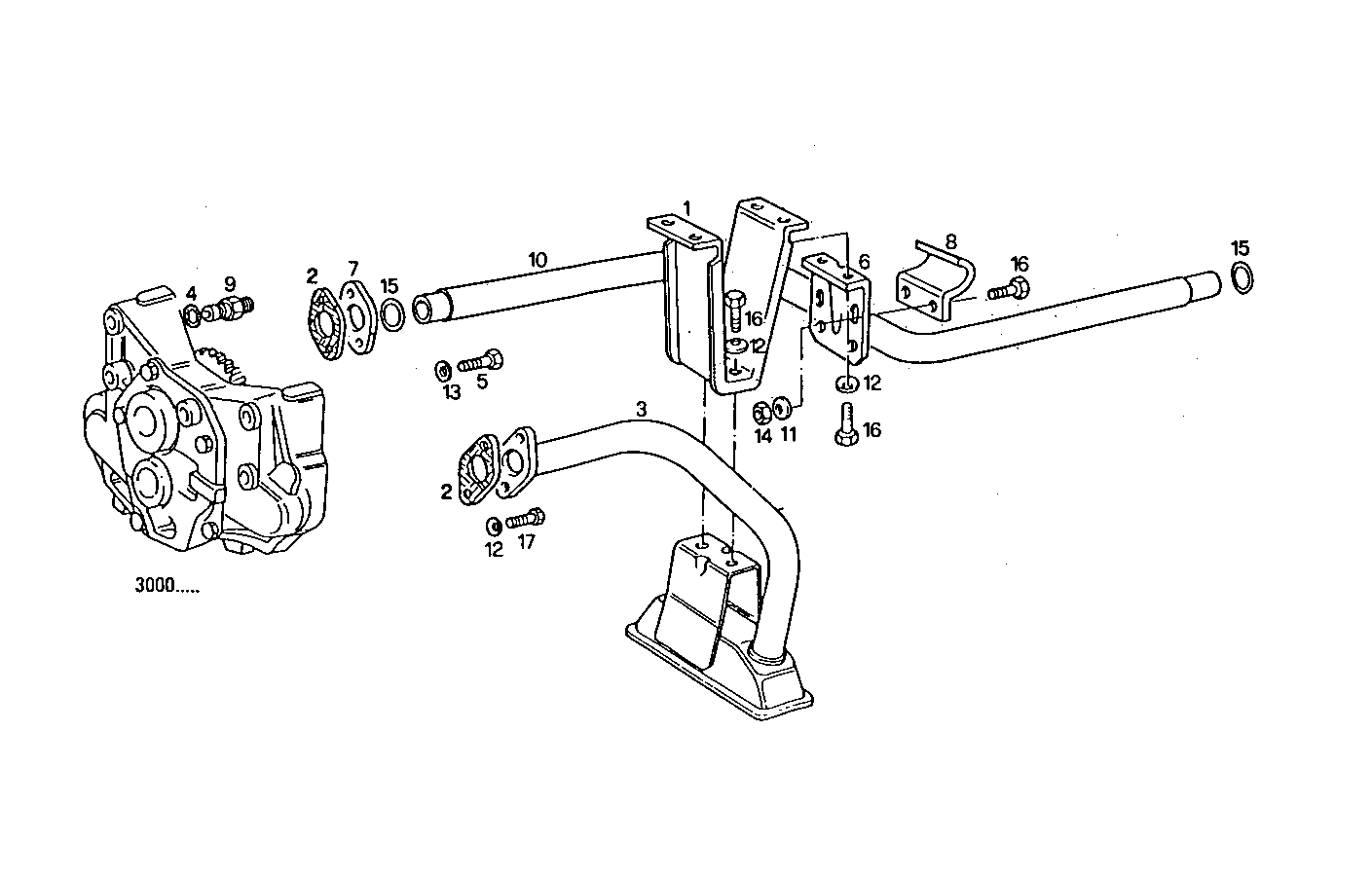

3010.030 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 4614106 FASTENING BRACKET
2 4852561 FLAT ENGINE GASKET
3 4614107 OIL SUCTION PIPE
4 561293 O-RING
5 16605824 HEXAGON BOLT M8X35 MM
6 4775923 FASTENING BRACKET
7 4773265 FLANGED SOCKET
8 4777690 CLIP
9 4785501 SCREW CONNECTOR M10X1,25
10 4817902 OIL LINE
11 17094914 WASHER 8x16
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 17090271 WASHER Ø10X20X2,6 MM
14 17157021 NUT M8X1,25
15 17282181 O-RING Ø21,8 MM SP=2,6 MM
16 16605424 SCREW M8X16 MM (8.8)
17 16043524 SCREW M8X22 MM
