8061C05.05

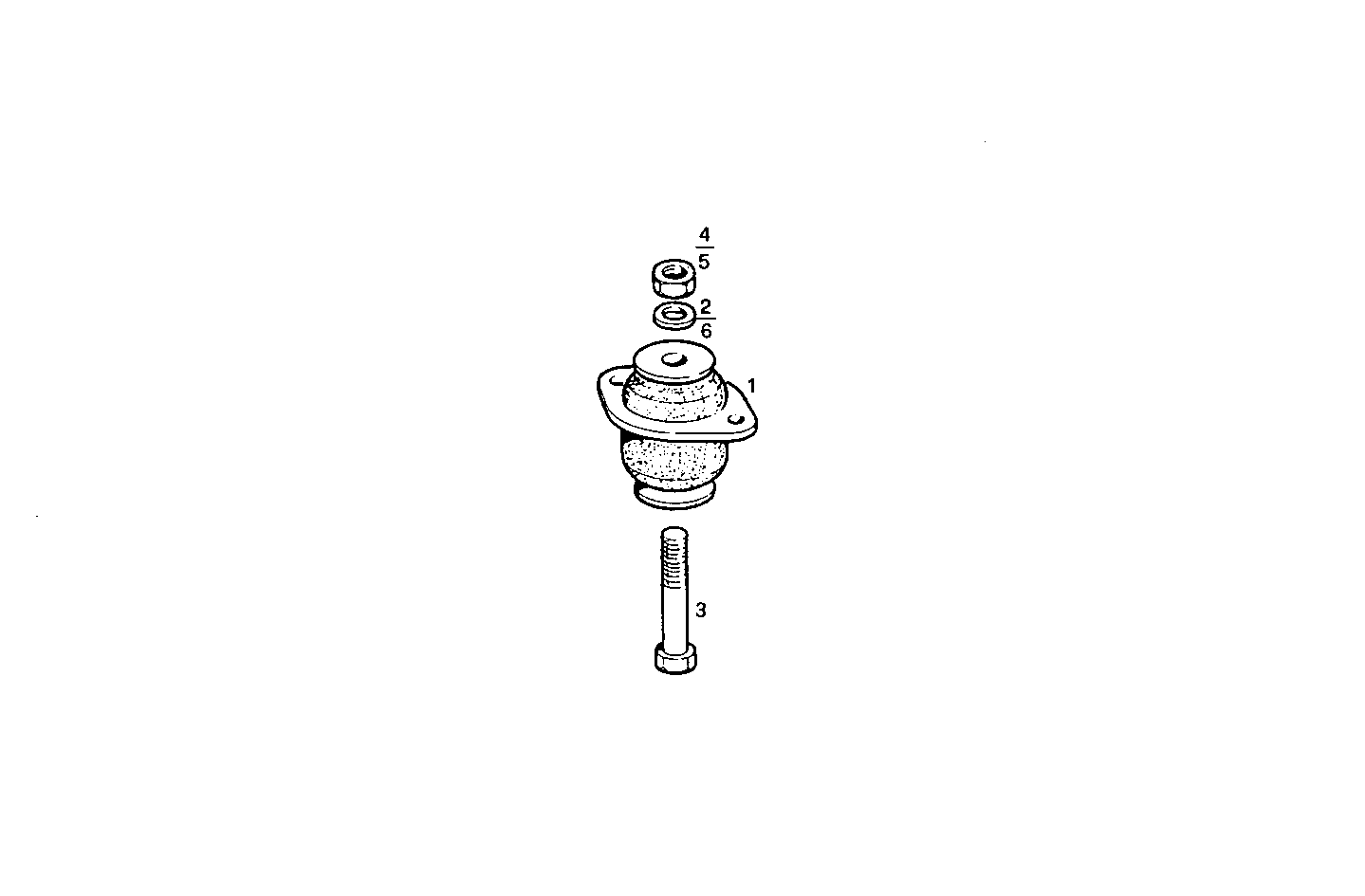

A04050012 ELASTIC PADS NOT ADJUSTABLE - loose
| Item | Part number | Description |
|---|---|---|
| 1 | 4576957 | CAB SUPPORT ALTERNATIVE USE |
| 2 | 17092774 | WASHER Ø20X38X4,6 MM |
| 3 | 15541321 | HEXAGON BOLT M12X1,25X75 MM |
| 4 | 16101511 | HEXAGON NUT M12X1,25 |
| 5 | 8105582 | NUT |
| 6 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
