8061C05.05A001

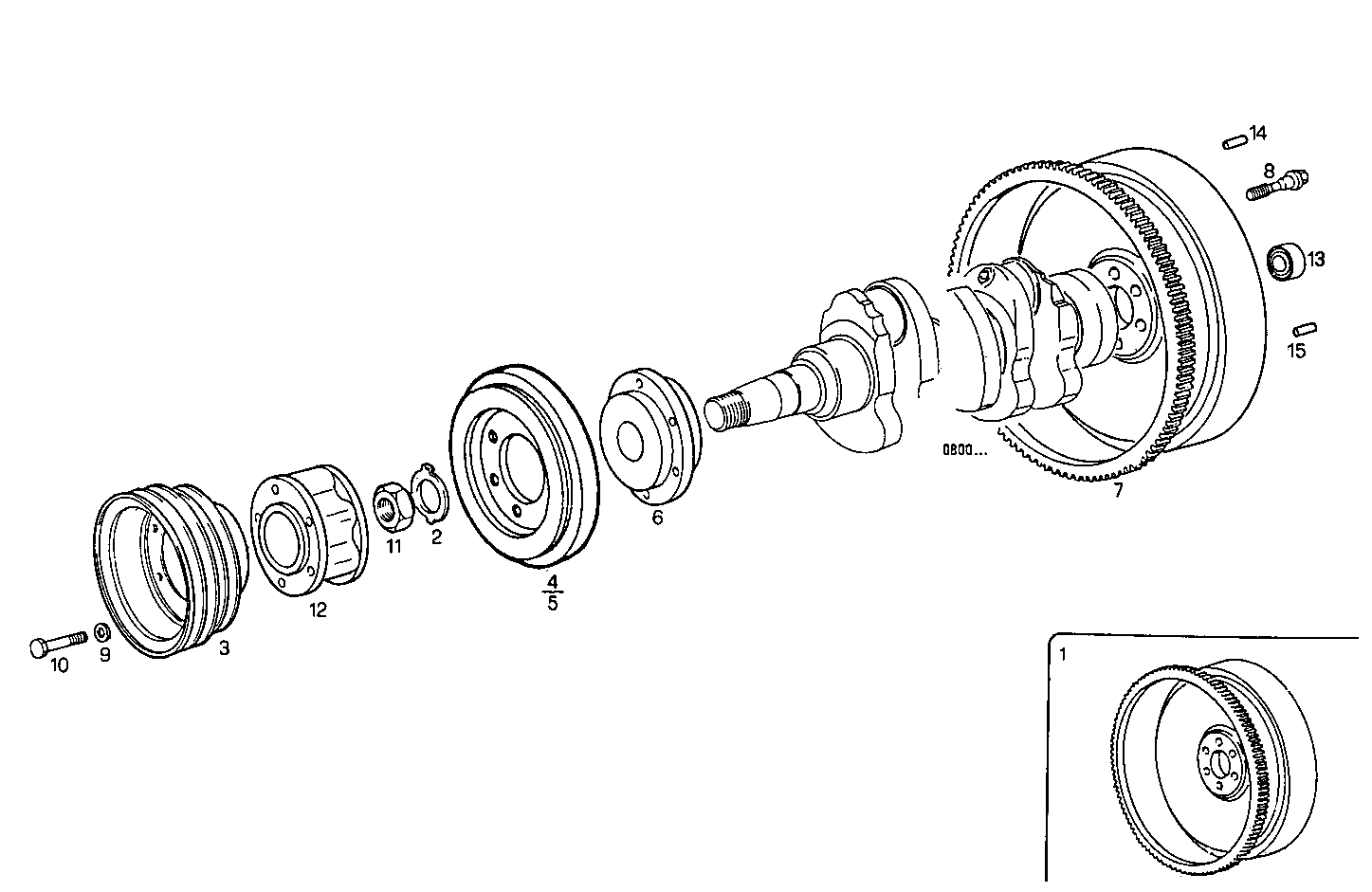

0830.097 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 8022029 | FLYWHEEL ASSY |
| 2 | 4600190 | LOCKING PLATE |
| 3 | 4811592 | PULLEY LEFT |
| 4 | 4815301 | VIBRATION DAMPER |
| 5 | 4809526 | VIBRATION DAMPER [up to …] |
| 6 | 4655847 | HUB |
| 7 | 4862411 | RING GEAR |
| 8 | 4779122 | HEXAGON BOLT |
| 9 | 11190571 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 10 | 11343721 | HEXAGON BOLT M10X65 MM |
| 11 | 4600189 | NUT |
| 12 | 4619438 | HUB |
| 13 | 4690063 | THRUST BEARING |
| 14 | 8813445 | DOWEL PIN |
| 15 | 8814705 | DOWEL PIN |
