8061C05.05A001

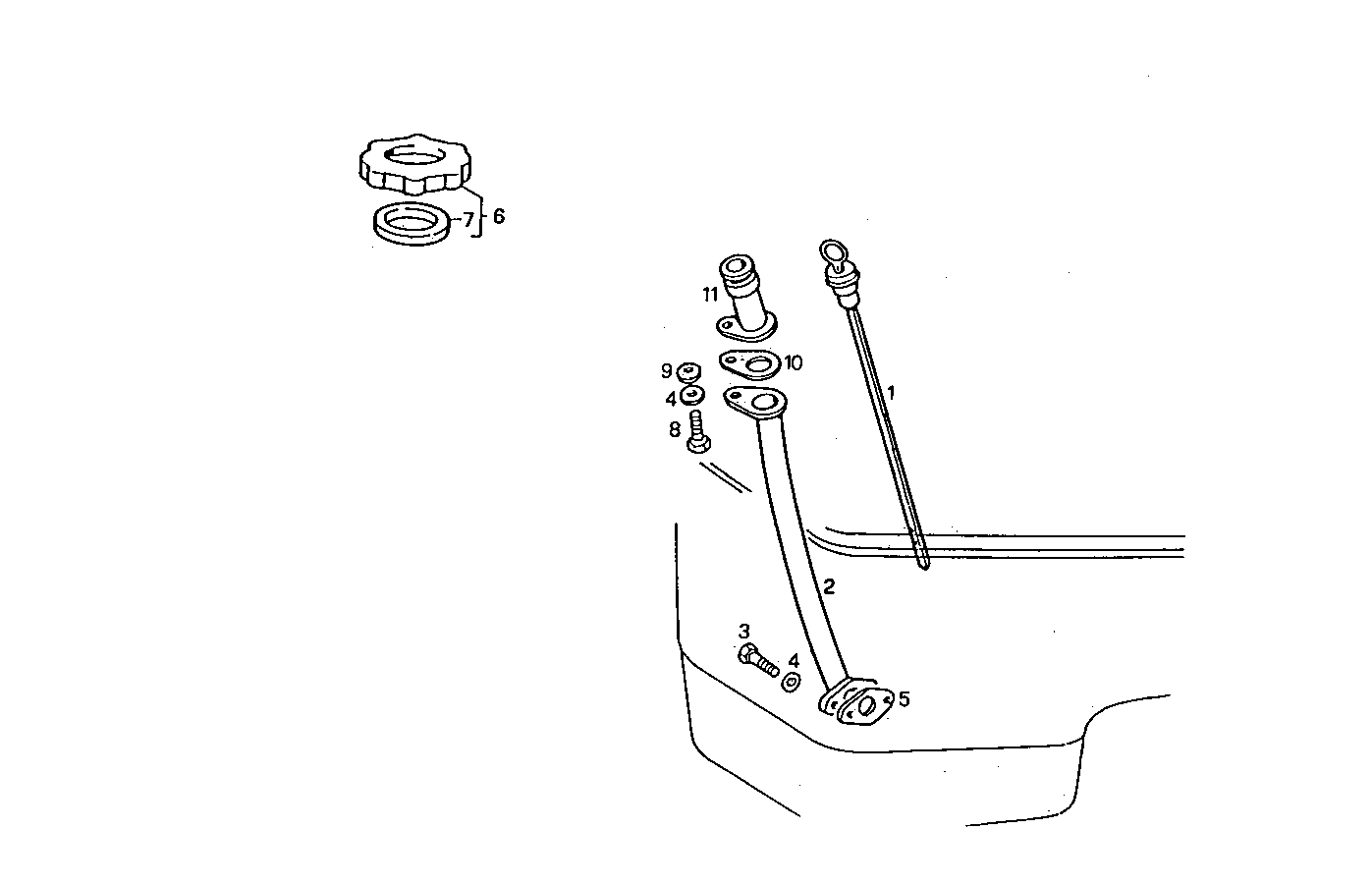

2710.056 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 8022208 | OIL DIPSTICK |
2 | 4696931 | OIL LEVEL TUBE |
3 | 16605524 | HEXAGON BOLT M8X20 MM |
4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 | 98401052 | FLAT ENGINE GASKET |
6 | 4232606 | OIL FILLER PLUG ASSY |
7 | 98418978 | GASKET |
9 | 17094901 | WASHER Ø8,4 MM |
10 | 98480943 | GASKET |
11 | 8022196 | OIL LINE |
