8061C05.05A001

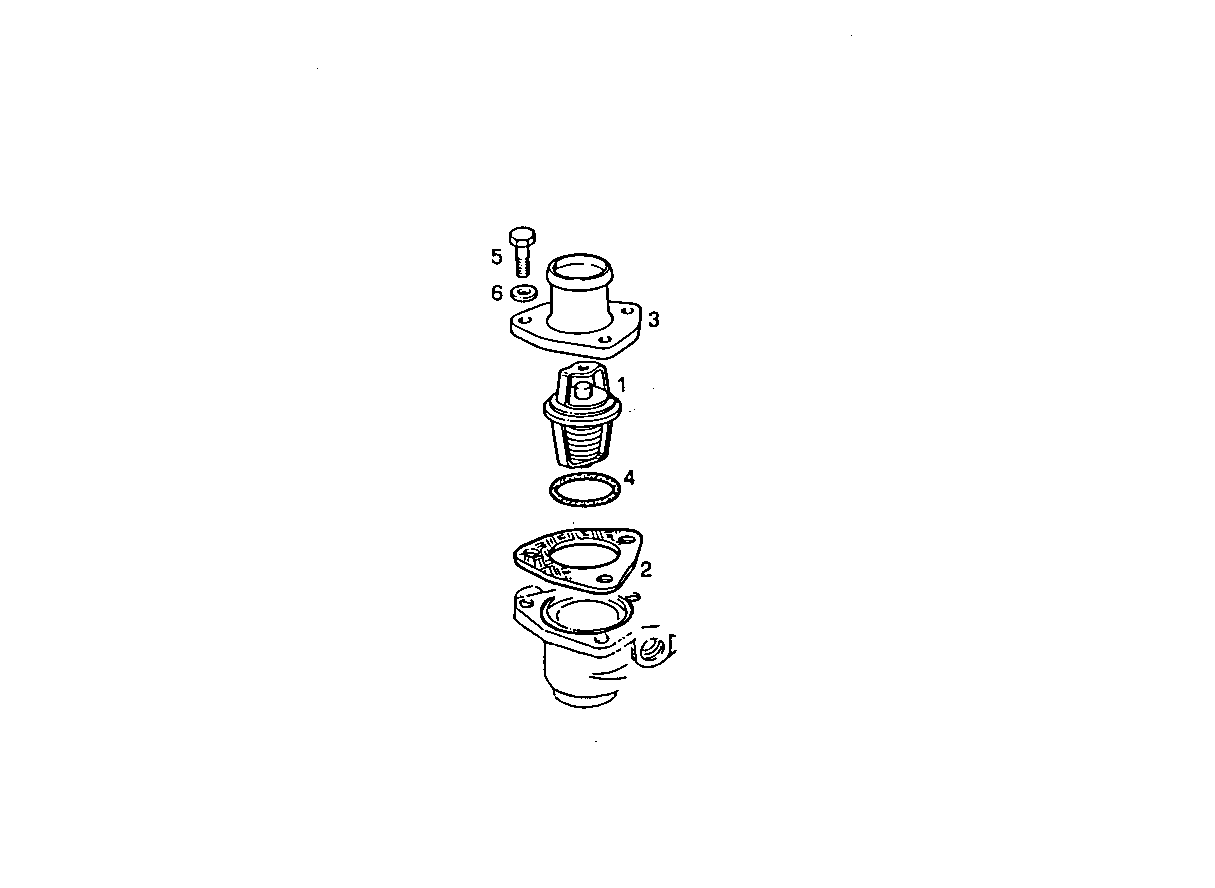

3220.068 THERMOSTAT
Item | Part number | Description |
---|---|---|
1 | 98432310 | THERMOSTAT ASSY |
2 | 98420754 | FLAT ENGINE GASKET SP=0,5 MM |
3 | 4767569 | THERM.BODY COVER |
4 | 98465113 | O-RING Ø60 MM |
5 | 16605734 | HEXAGON BOLT M8X30 MM |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
