8061C05.05A001

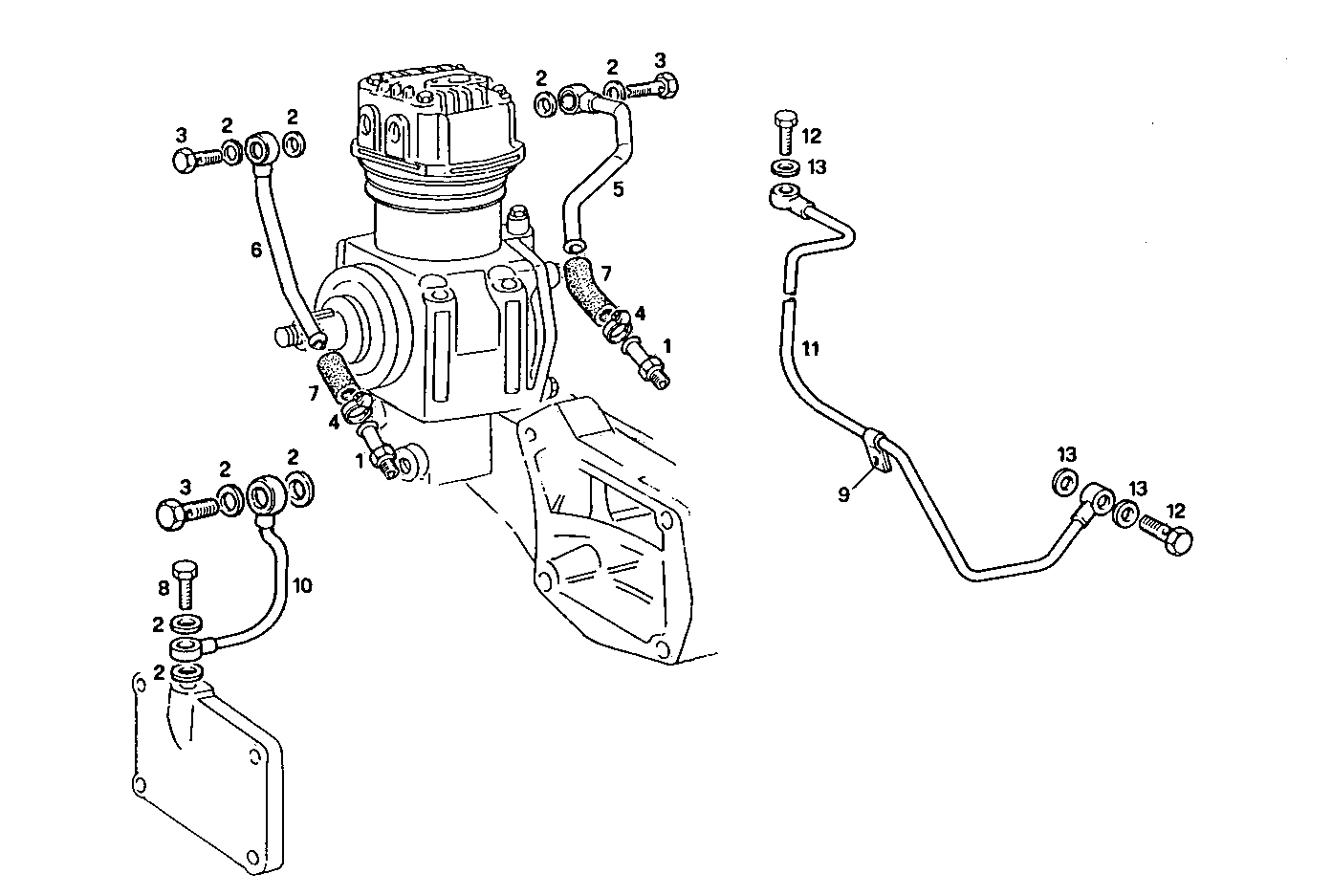

3820.007 COMPRESSOR LINE SYSTEM
| Item | Part number | Description |
|---|---|---|
| 1 | 4616630 | THREADED UNION |
| 2 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 3 | 4864084 | BANJO BOLT M16X1,5 |
| 4 | 17764492 | CLIP Ø16-25 MM |
| 5 | 98423879 | WATER PIPE Ø12 MM |
| 6 | 98423909 | WATER PIPE Ø12 MM |
| 7 | 98425477 | WATER HOSE |
| 8 | 4817397 | SCREW CONNECTOR |
| 9 | 4617069 | FASTENING BRACKET |
| 10 | 98412659 | OIL LINE |
| 11 | 98425210 | OIL LINE |
| 12 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 13 | 4858606 | GASKET Ø10X14X1 MM |
