8061C05.05A001

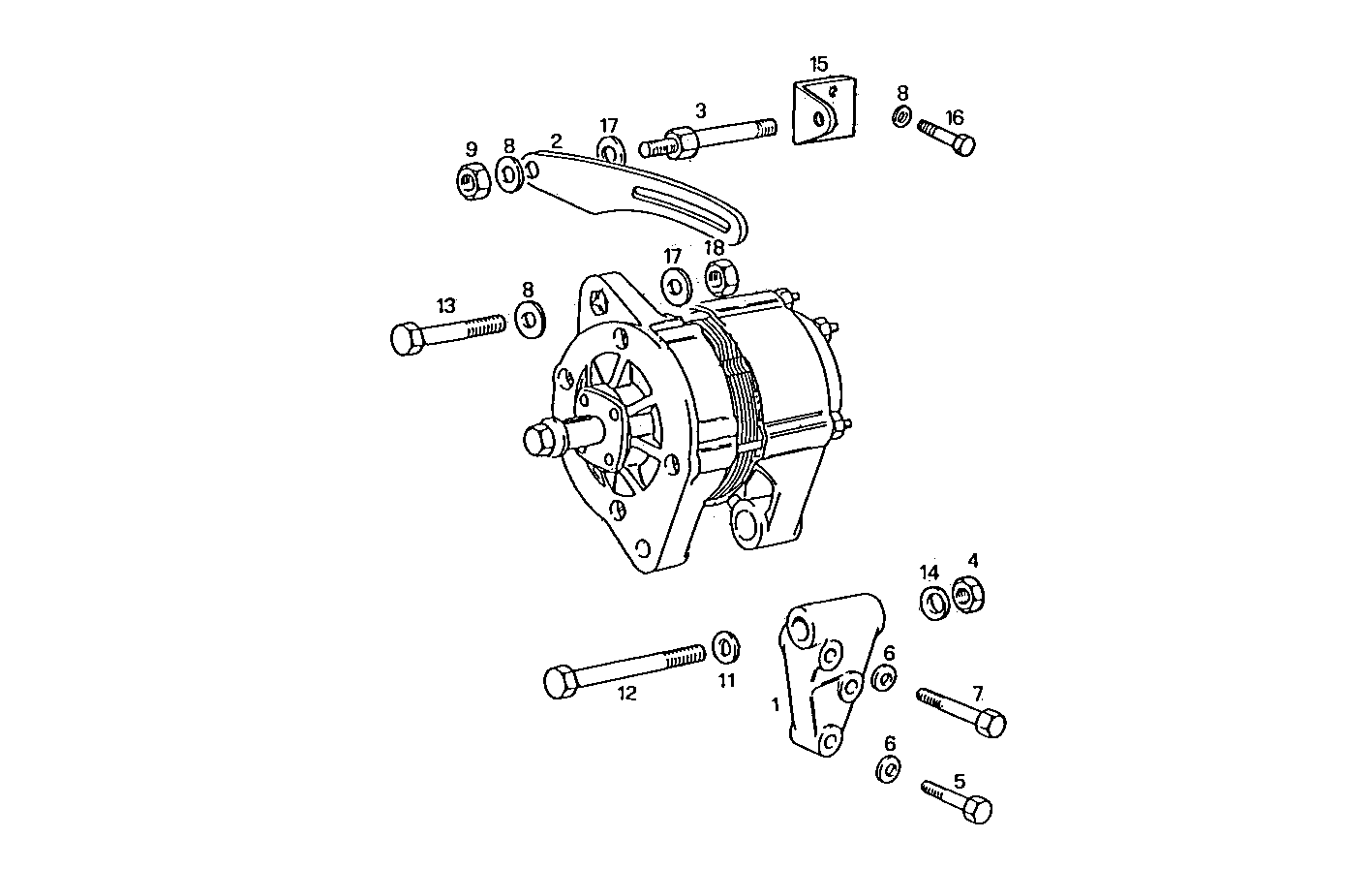

4010.061 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4797035 | GENERATOR SUPPORT |
| 2 | 4641651 | TURNBUCKLE |
| 3 | 4811983 | SCREW M10X1,25 |
| 4 | 17038421 | HEXAGON NUT M12 (8) |
| 5 | 16606624 | HEXAGON BOLT M8X80 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16606024 | SCREW M8X45 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 12646801 | WASHER Ø10,2 MM |
| 11 | 17095304 | WASHER Ø12X24 MM |
| 12 | 16607224 | SCREW |
| 13 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 14 | 17091074 | WASHER Ø12X24X2,8 MM |
| 15 | 8100903 | RETAINER |
| 16 | 15970521 | HEXAGON BOLT M10X20 MM |
| 17 | 17095104 | WASHER Ø10X21X2 MM |
| 18 | 17038121 | HEXAGON NUT M10 |
