8061C05.05A030

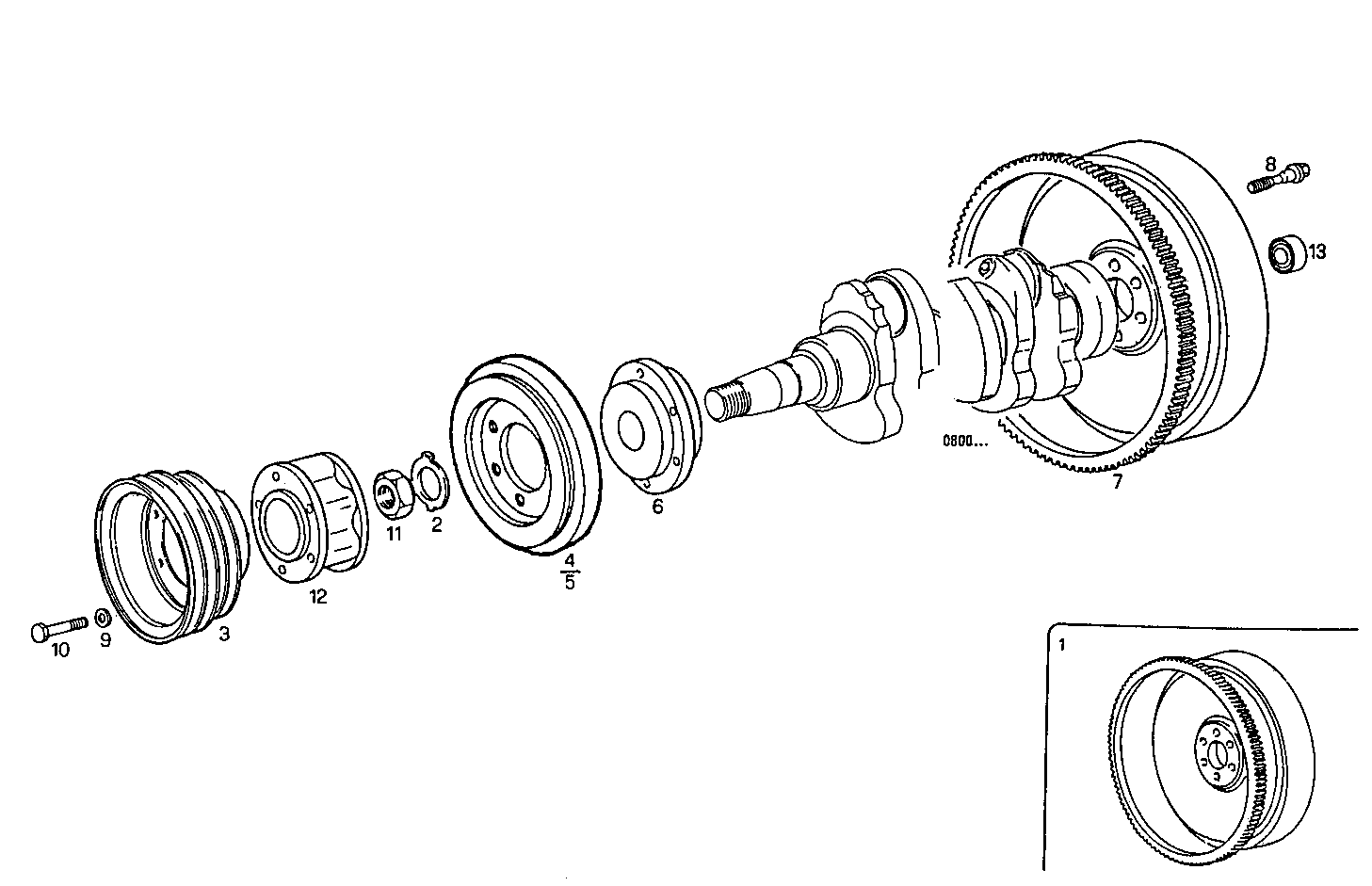

0830.098 ENGINE FLYWHEEL - DAMPER

Iveco/FPT ENGINE FLYWHEEL - DAMPER

Item Part number Description
1 8019458 FLYWHEEL ASSY
2 4600190 LOCKING PLATE
3 4811592 PULLEY LEFT
4 4815301 VIBRATION DAMPER
5 4809526 VIBRATION DAMPER [up to …]
6 4655847 HUB
7 4862411 RING GEAR
8 4779122 HEXAGON BOLT
9 11190571 SPRING WASHER Ø10X20 MM SP=2,3
10 11343721 HEXAGON BOLT M10X65 MM
11 4600189 NUT
12 4619438 HUB
13 4693243 BALL BEARING Ø25X62 MM SP=17 MM
