8061C05.05A030

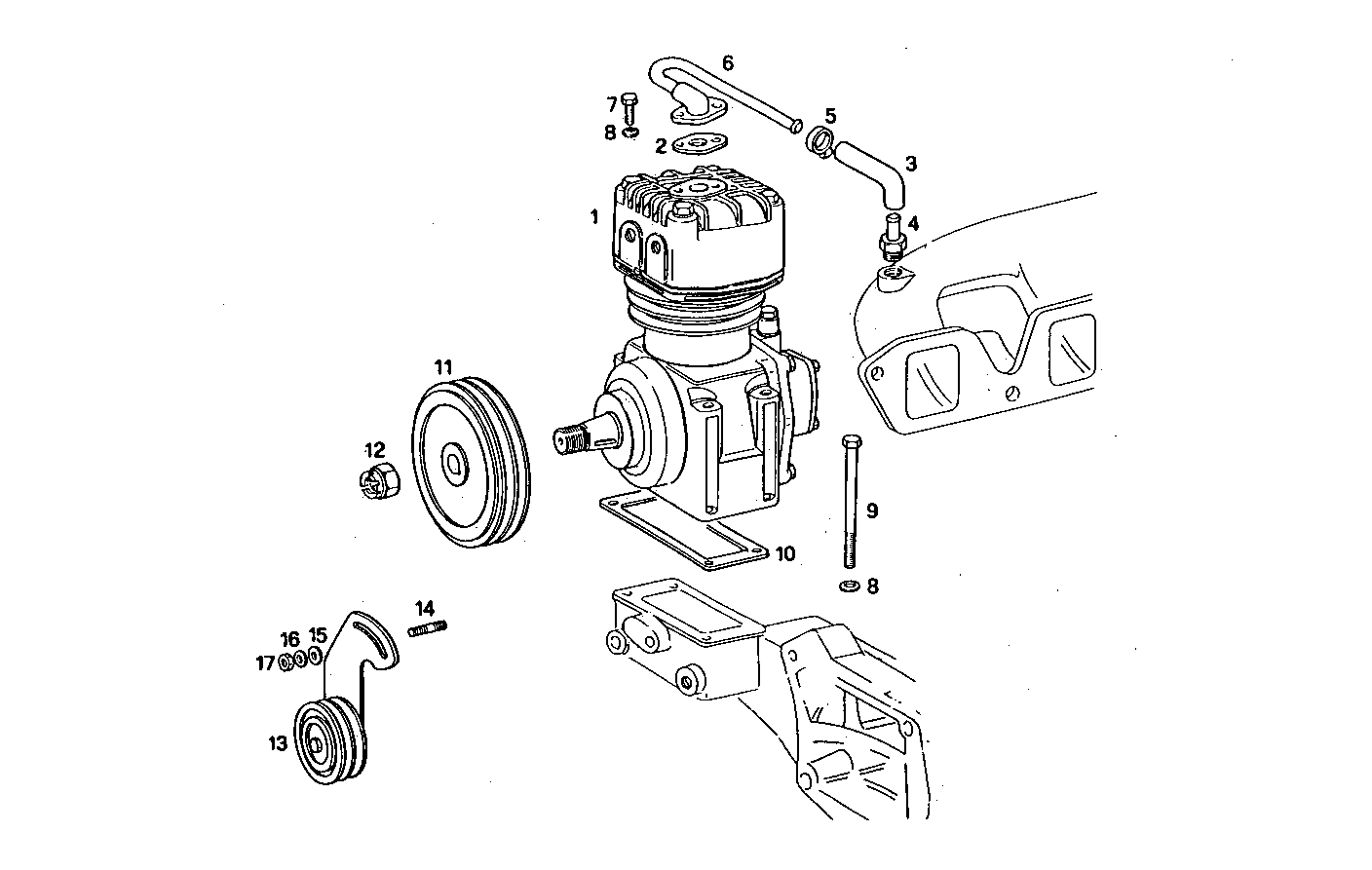

3800.007 AIR COMPRESSOR
Item | Part number | Description |
---|---|---|
1 | 99440231 | AIR COMPRESSOR ASSY BENDIX |
2 | 98418772 | FLAT ENGINE GASKET |
3 | 98425465 | RUBBER SLEEVE Ø20 MM |
4 | 4633506 | THREADED UNION M22X1,5 |
5 | 17764592 | CLIP Ø20/32 MM |
6 | 4638757 | SUCTION LINE |
7 | 16605524 | HEXAGON BOLT M8X20 MM |
8 | 11198071 | SPRING WASHER Ø8X15 SP=1,4 MM |
9 | 16606724 | HEXAGON BOLT M8X90 MM |
10 | 98400783 | FLAT ENGINE GASKET |
11 | 4803401 | PULLEY |
12 | 13598411 | CASTLE NUT M18X1,5 |
13 | 4803462 | BELT TENSIONER ASSY |
14 | 13449521 | STUD M10X15X25 |
15 | 759850 | WASHER Ø10X21X2 MM |
16 | 11198371 | SPRING WASHER Ø10X20 MM |
17 | 12646801 | WASHER Ø10,2 MM |
