8061C05.05A030

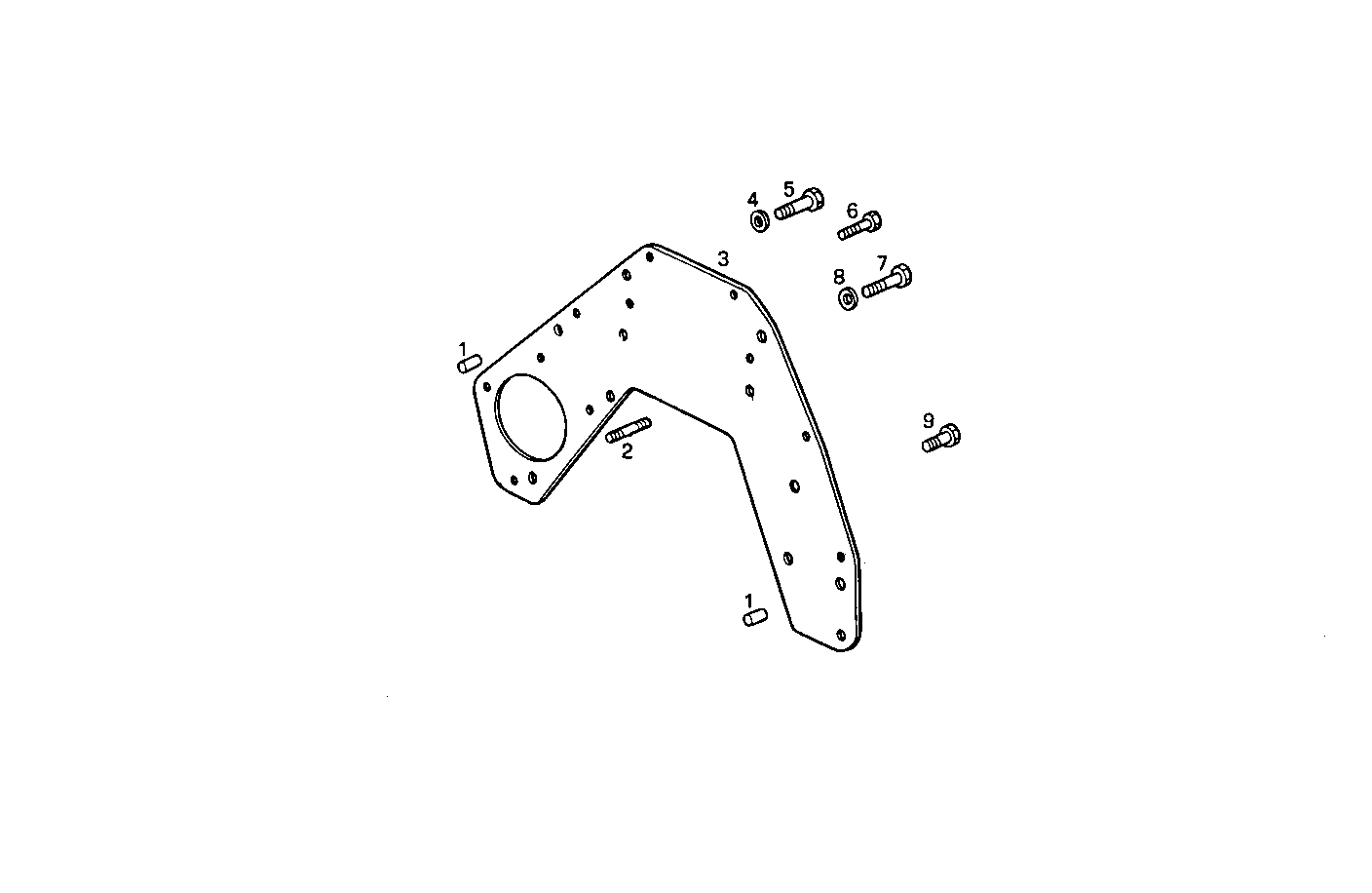

5200.007 CLUTCH
| Item | Part number | Description |
|---|---|---|
| 1 | 17275510 | DOWEL PIN Ø10 MM |
| 2 | 8019364 | STUD |
| 3 | 8019294 | PLATE |
| 4 | 17091674 | WASHER Ø14X27X3,0 MM |
| 5 | 16612424 | HEXAGON BOLT M14X40 MM |
| 6 | 16695624 | SCREW |
| 7 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 16610324 | HEXAGON BOLT M12 |
