8061i05.00

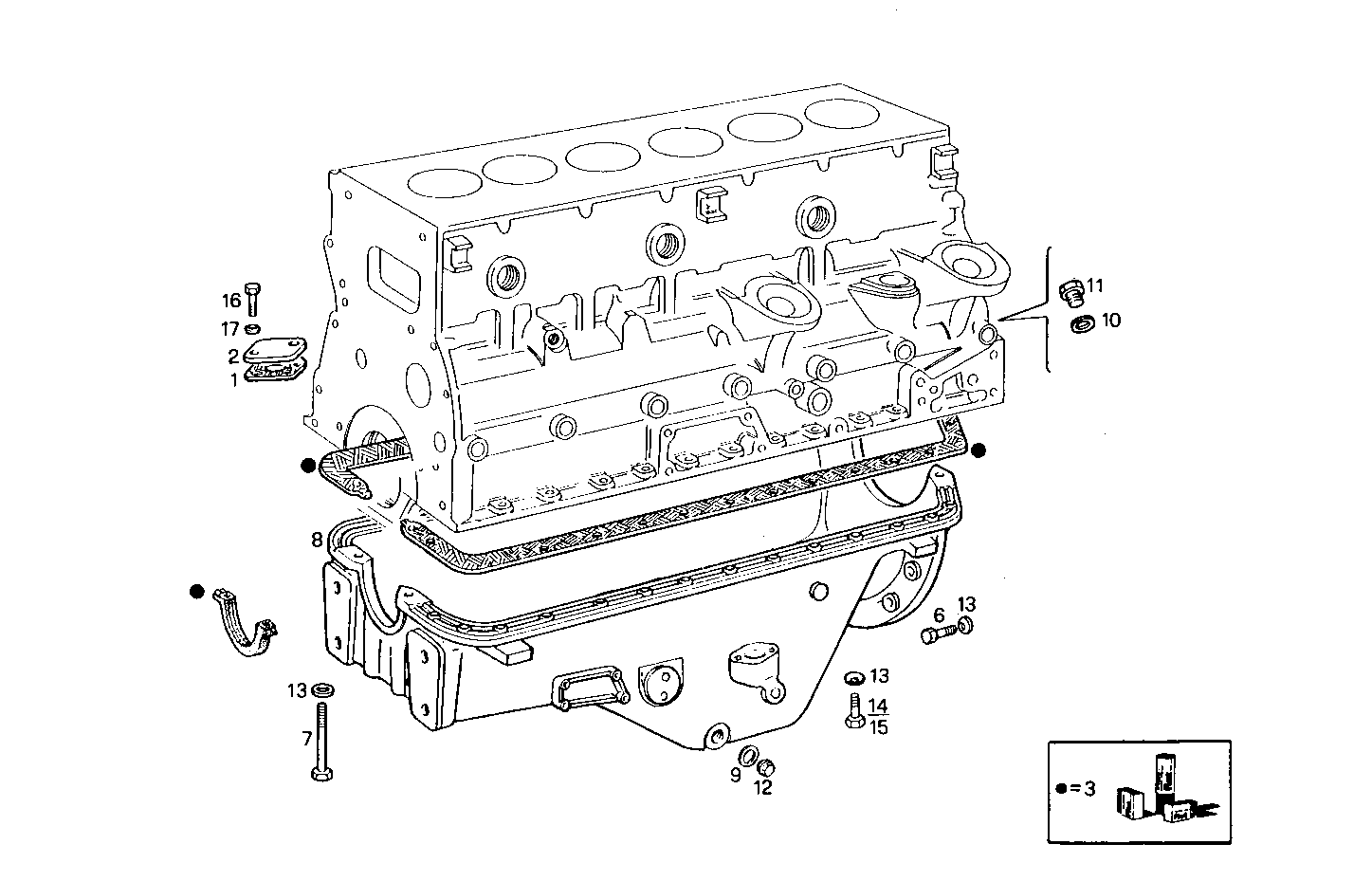

0420.031 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 98400785 GASKET
2 4764745 COVER
3 8090696 KIT-OILSUMP GASKET
6 15971824 SCREW M10X1,25X100
7 15972924 HEXAGON BOLT M10X1,25X160
8 4790643 OIL SUMP ASSY
9 10263460 WASHER Ø22X28X1,5 MM
10 10265060 SEAL GASKET Ø32X38 MM SP=1,5 MM
11 10276111 LOCK PLUG M32X1,5
12 10305171 PLUG M22X1,5
13 17090274 WASHER Ø10X20 MM
14 4686762 HEXAGON BOLT M10X1,25X30
15 11307024 SCREW M10X1,25X40 MM
16 16605624 HEXAGON BOLT M8X25 MM (8.8)
17 17089574 WASHER Ø8X16 MM
