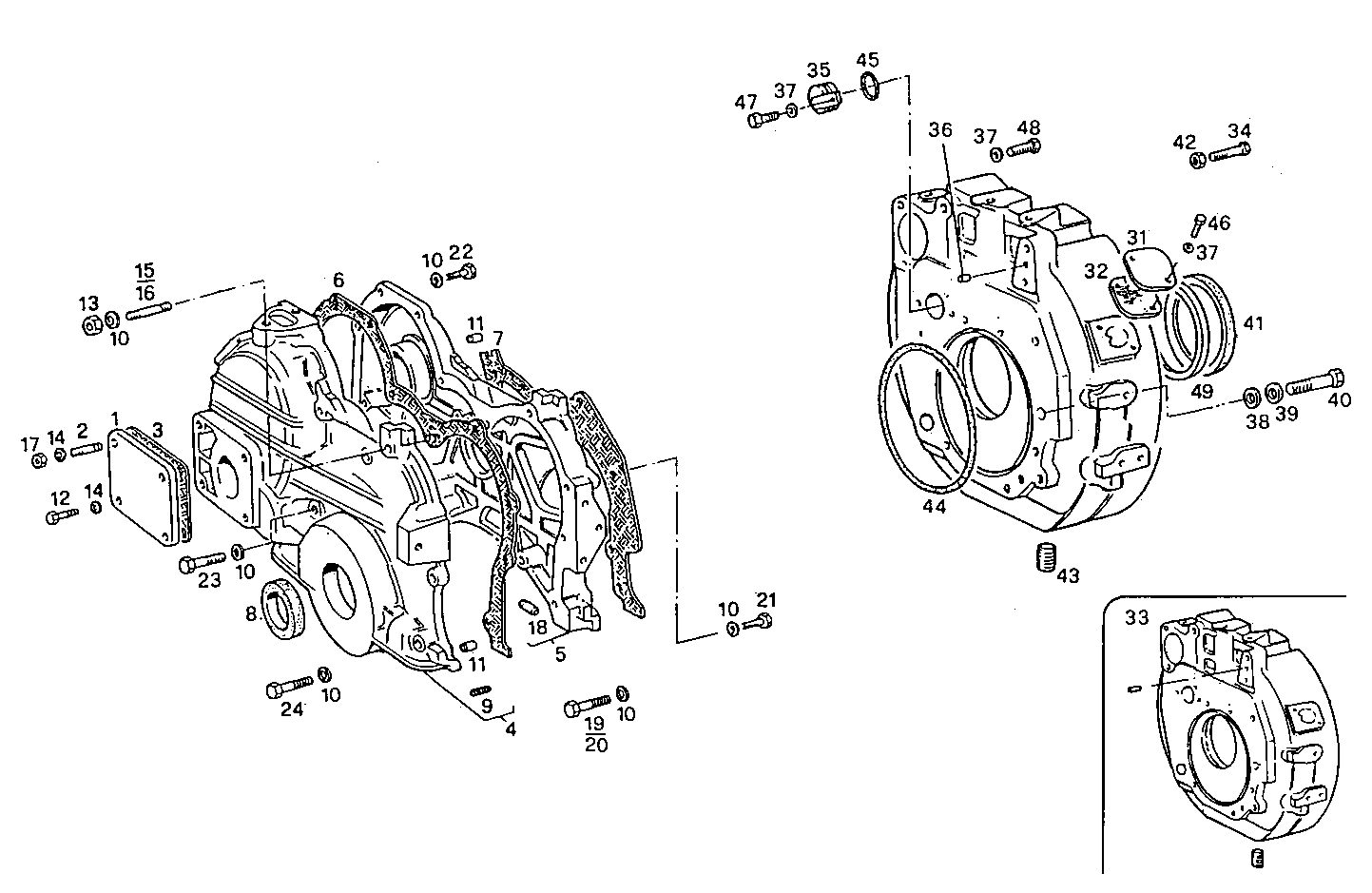

Item |
Part number |
Description |
1 |
564530 |
COVER |
2 |
4615276 |
STUD M8X20 |
3 |
4850986 |
FLAT ENGINE GASKET |
4 |
4769187 |
FRONT C.CASE COVER ASSY |
5 |
4766126 |
FRONT C.CASE COVER ASSY |
6 |
98424045 |
FLAT ENGINE GASKET |
7 |
98424046 |
FLAT ENGINE GASKET |
8 |
40101331 |
SHAFT SEAL FRONT |
9 |
13526170 |
THREADED INSERT M10X1,25X20 MM |
10 |
10519601 |
WASHER Ø8X17 MM |
11 |
10839610 |
DOWEL PIN Ø8 MM |
12 |
10902421 |
HEXAGON BOLT M6X20 MM |
13 |
17037931 |
HEXAGON NUT M8X1,25 |
14 |
11197771 |
SPRING WASHER Ø6X12 MM SP=1,2 MM |
15 |
13543621 |
STUD M8X16X30 MM |
16 |
13543620 |
STUD M8X16X30 |
17 |
17037821 |
HEXAGON NUT M6X1 |
18 |
4605220 |
OIL NOZZLE |
19 |
16043521 |
SCREW M8X22 |
20 |
16605734 |
HEXAGON BOLT M8X30 MM |
21 |
16605824 |
HEXAGON BOLT M8X35 MM |
22 |
16606124 |
HEXAGON BOLT M8X50 MM |
23 |
16044921 |
HEXAGON BOLT M8X1,25X85 MM |
24 |
16606524 |
HEXAGON BOLT M8X70 MM |
31 |
98417985 |
COVER |
32 |
98417986 |
FLAT ENGINE GASKET |
33 |
4784723 |
FLYWHEEL HOUSING ASSY |
34 |
16612324 |
HEXAGON BOLT M14X35 MM |
35 |
4718740 |
PLUG |
36 |
17275510 |
DOWEL PIN Ø10 MM |
37 |
11193871 |
WASHER Ø8X16X1,4 MM |
38 |
11198371 |
SPRING WASHER Ø10X20 MM |
39 |
11200171 |
SPRING WASHER Ø15 MM |
40 |
11306921 |
SCREW M10X1,25X30 |
41 |
40101341 |
SHAFT SEAL REAR |
43 |
16998011 |
PLUG M35X1,5 |
44 |
14483081 |
O-RING Ø5,33X196,2 MM |
45 |
14463880 |
O-RING |
46 |
16043421 |
HEXAGON BOLT M8X20 MM |
47 |
16605424 |
SCREW M8X16 MM (8.8) |
49 |
4787154 |
SPACING BAR |
