8061i05.00

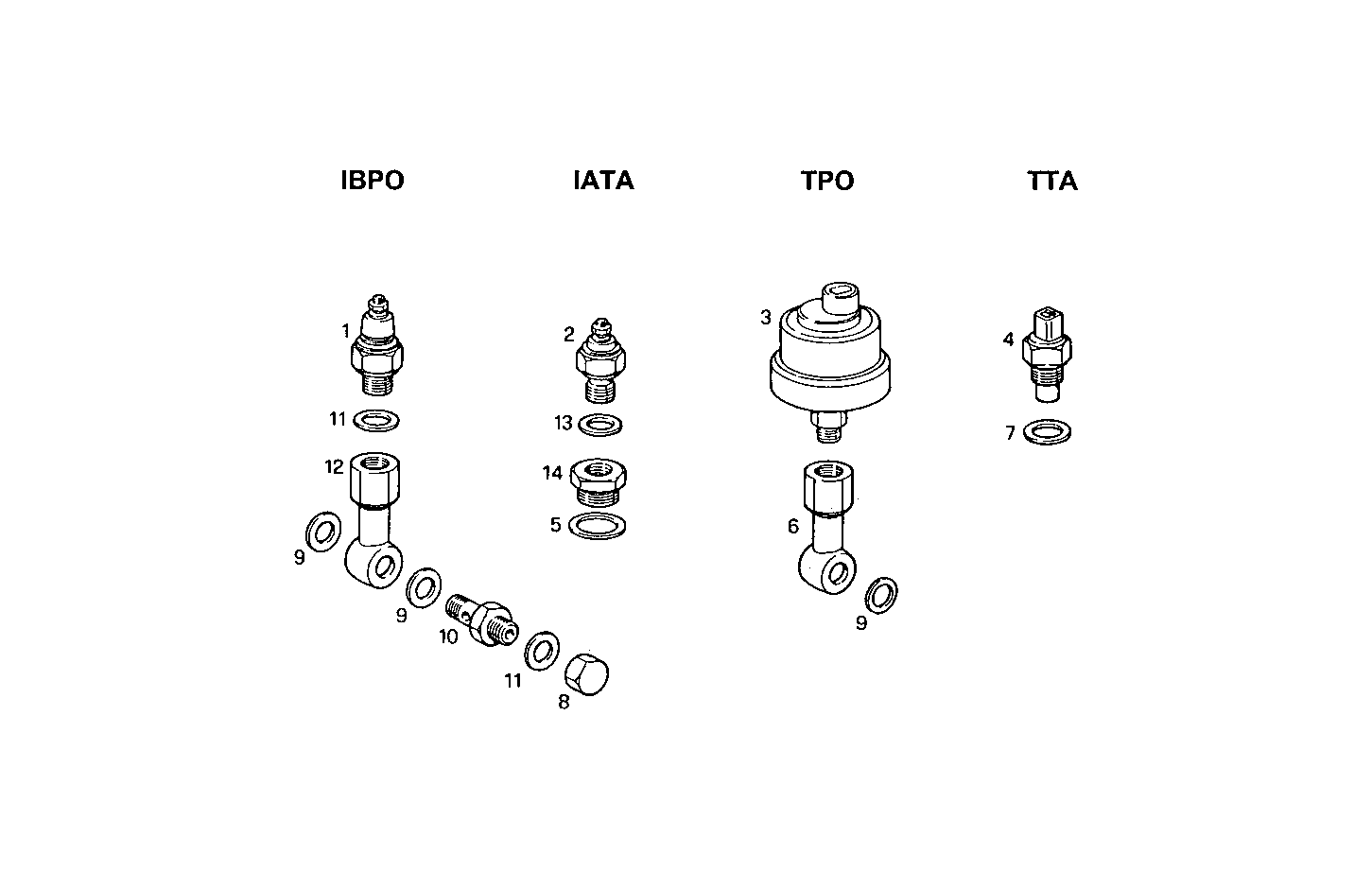

A38680017/03 ELECTRIC INSTRUMENTS PANEL - VEGLIA 24V
Item | Part number | Description |
---|---|---|
1 | 8104140 | TRANSMITTER IBPO |
2 | 8104141 | TRANSMITTER IATA |
3 | 8100563 | TRANSMITTER TPO |
4 | 4448131 | TEMP. TRANSMITTER TTA |
5 | 10263460 | WASHER Ø22X28X1,5 MM |
6 | 4927546 | PIPE SOCKET |
7 | 10278660 | SEAL GASKET Ø16X22 MM SP=1 MM |
8 | 10183217 | LOCK PLUG M12X1,5 |
9 | 10298360 | SEAL GASKET Ø10X16 MM SP=1 MM |
10 | 8103338 | PIPE SOCKET |
11 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
12 | 8111331 | PIPE SOCKET |
13 | 10282460 | SEAL GASKET Ø14X20 MM |
14 | 4927760 | PIPE SOCKET M22X1,5 |
